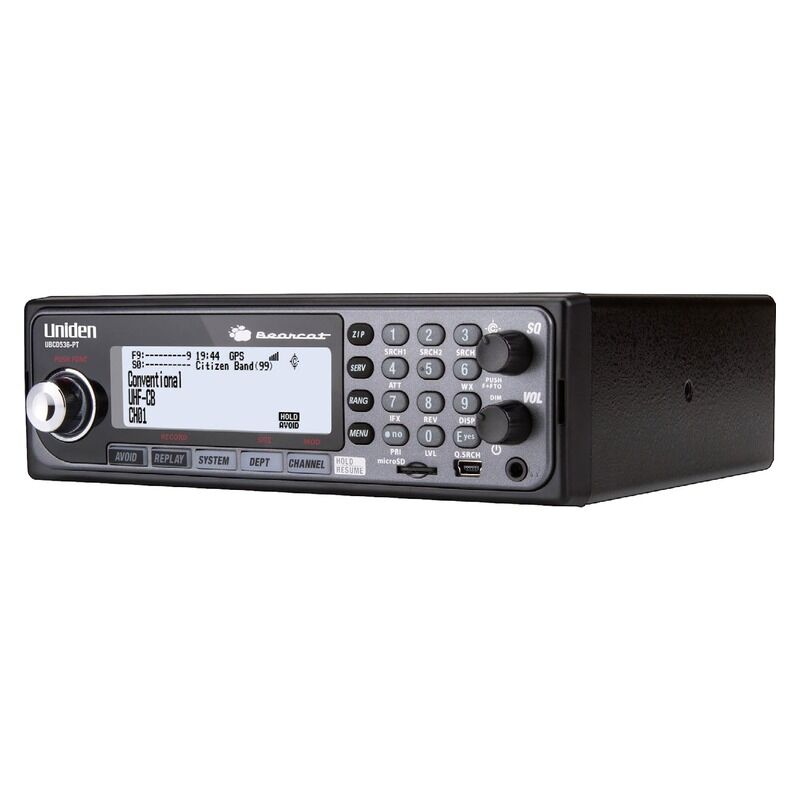

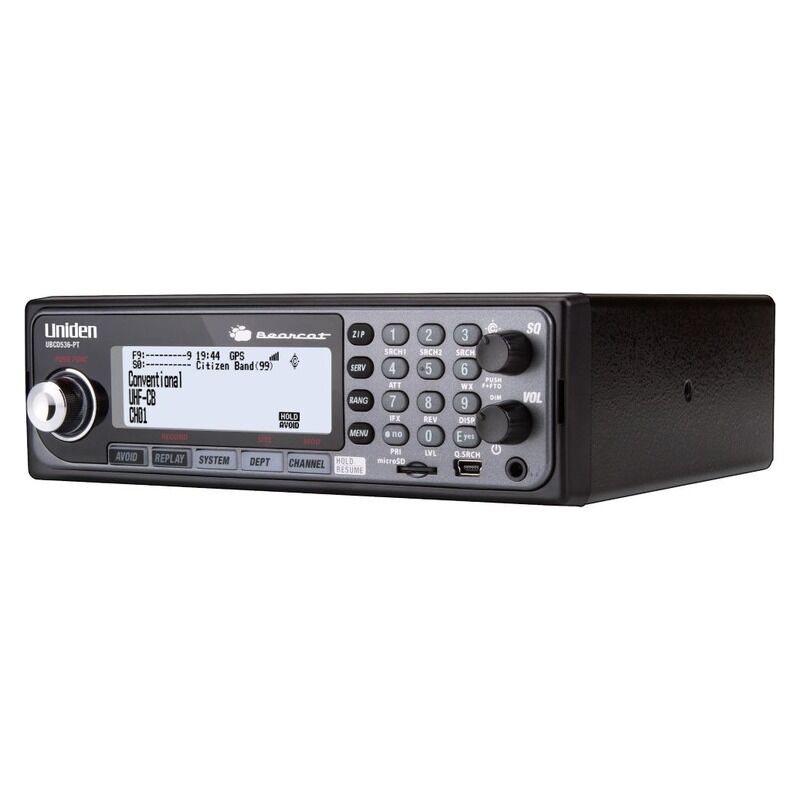

Uniden UBCD536-PT Digital Base/Mobile Scanner - CFA & DELWP Pre-Programmed, APCO P25 Phase 1 & 2

The Uniden UBCD536-PT is a highly engineered digital scanner with pre-programmed channels. It scans APCO 25 Phase 1 and Phase 2, Motorola, EDACS and LTR trunked systems, as well as conventional analogue, giving you a flexible scanner for everyday use at home, at the station or in the vehicle.

The UBCD536-PT features Close Call RF Capture Technology, which automatically listens for nearby transmissions and immediately tunes in to that frequency. It is ideal for use at events or locations where the transmission frequency is unknown.

The UBCD536-PT TrunkTracker V desktop scanner is designed to meet the specific technical requirements of CFA brigades and is future-proof. It can be used as a base station on a desk or mounted in a vehicle using the supplied bracket (DIN-E/ISO mounting with optional sleeve).

It comes pre-programmed with the current CFA and Department of Environment, Land, Water & Planning (DELWP) radio channel plan, with the added benefit of receiving both analogue and digital radio traffic.

Features

• APCO P25 Phase 1 & Phase 2 digital scanning
• No programming required: factory programmed microSD card with all District scan groups arranged by the CFA frequency database
• Pre-programmed CFA & DELWP channels
• TrunkTracker V operation: scans APCO 25 Phase 1 and Phase 2, X2-TDMA, Motorola, EDACS and LTR trunked systems, plus conventional analogue and P25 digital channels
• Close Call RF Capture Technology for nearby transmissions (with Do-Not-Disturb)
• Instant Replay: plays back up to 240 seconds (4 minutes) of the most recent transmissions
• Audio recording of transmissions for later playback
• 4 GB microSD card provided (supports up to 32 GB), located on the faceplate
• Favourites Scan with Quick Key system access
• Alpha Tagging
• Backlit keypad & LCD
• PC programming with Sentinel software
• Location-based scanning with optional GPS receiver (not included)
• Fire Tone-Out standby/tone search
• Encryption muting: APCO P25 encrypted voice is muted automatically
• Custom alerts with 7-colour multicolour LED
• Base station or in-vehicle use: DIN-E and ISO vehicle mountable (DIN-E sleeve optional)
• 5 W internal speaker for loud, clear audio
• 12 V DC operation with cigarette lighter power cord and orange-wire DC cord supplied

Specifications

What's in the Box

• 1 x UBCD536-PT scanner
• 1 x AC power adaptor
• 1 x Cigarette lighter power cord
• 1 x USB connection cable
• 1 x microSD card (installed)
• 1 x DC cord with orange wire
• 1 x Mounting bracket with screw and foot
• 1 x Telescopic antenna

Warranty

1 year Uniden Australia manufacturer warranty.

Cannot receive encrypted transmissions. DIN-E sleeve is an optional accessory. Specifications subject to change without notice.
