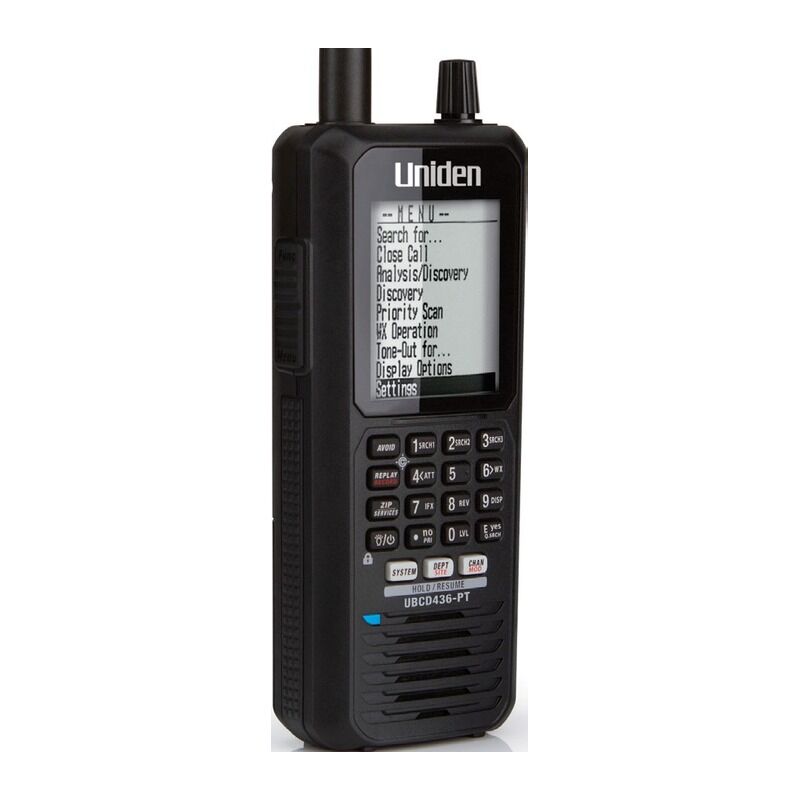

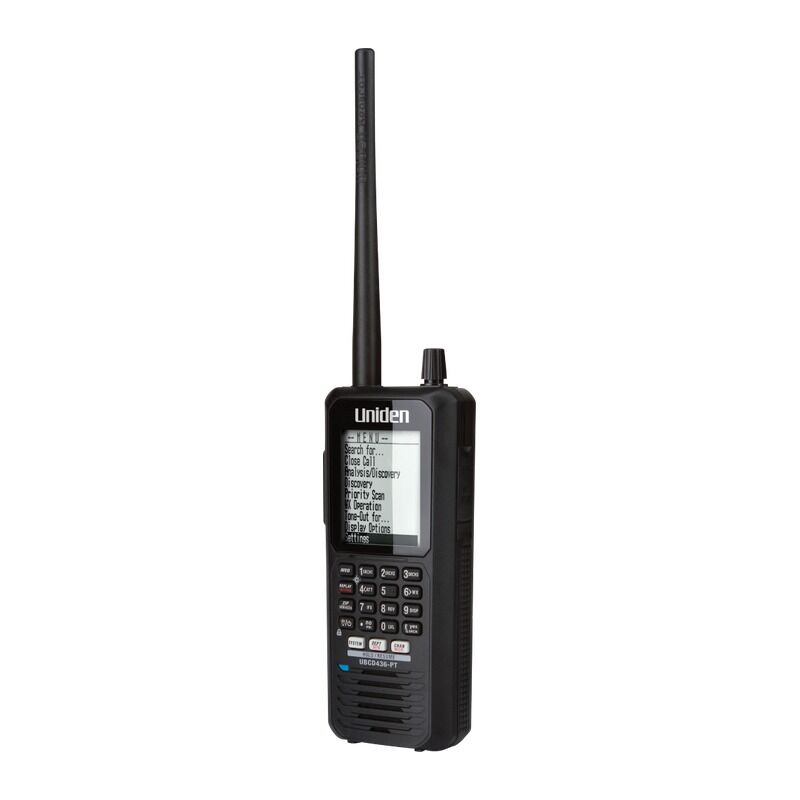

Uniden UBCD436-PT Digital Handheld Scanner - CFA & DELWP Pre-Programmed, APCO P25 Phase 1 & 2

The Uniden UBCD436-PT is a highly engineered digital handheld scanner with pre-programmed channels. It scans APCO 25 Phase 1 and Phase 2, Motorola, EDACS and LTR trunked systems, as well as conventional analogue, making it a flexible scanner that suits your everyday needs wherever you go.

Specifically designed for the Victorian Country Fire Authority (CFA), the UBCD436-PT features Close Call RF Capture Technology, which automatically listens for nearby transmissions and immediately tunes in to that frequency. It is ideal for use at events or locations where the transmission frequency is unknown.

The UBCD436-PT TrunkTracker V digital handheld scanner is designed to meet the specific technical requirements of CFA brigades and to be future-proof, including compatibility with the transition to P25 Phase 2.

It comes pre-programmed with the current CFA and Department of Environment, Land, Water & Planning (DELWP) radio channel plan, with the added benefit of receiving both analogue and digital radio traffic. Fire season ready straight out of the box.

Features

• APCO P25 Phase 1 & Phase 2 digital scanning
• No programming required: factory programmed microSD card with all District scan groups arranged by the CFA frequency database
• Pre-programmed CFA & DELWP channels
• TrunkTracker V operation: scans APCO 25 Phase 1 and Phase 2, X2-TDMA, Motorola, EDACS and LTR trunked systems, plus conventional analogue and P25 digital channels
• Close Call RF Capture Technology for nearby transmissions (with Do-Not-Disturb)
• Instant Replay: plays back up to 240 seconds (4 minutes) of the most recent transmissions
• Audio recording of transmissions for later playback
• Favourites Scan with Quick Key system access (up to 100 Quick Keys)
• Alpha Tagging (names up to 64 characters)
• PC programming with Sentinel software (profiles, favourites lists, database and firmware updates)
• Backlit keypad and LCD with three light levels
• 4 GB microSD card supplied (1 GB up to 32 GB supported)
• Location-based scanning with optional GPS receiver (not included) and range control
• Fire Tone-Out standby/tone search (up to 32 Tone-Outs)
• Encryption muting: APCO P25 encrypted voice is muted automatically
• Custom alerts with 7-colour multicolour LED
• Trunking and conventional discovery modes
• Scan by service type (Fire, Police, etc.)
• Built-in battery charger: charge the rechargeable AA batteries from any USB port
• Powered by 3 x AA batteries (NiMH rechargeables included) or USB

Specifications

What's in the Box

• 1 x UBCD436-PT scanner
• 1 x USB connection/charge cable
• 3 x AA NiMH rechargeable batteries
• 1 x AC adaptor
• 1 x Cigarette lighter (DC) power adaptor
• 1 x microSD card (installed)
• 1 x Swivel belt clip
• 1 x SMA-BNC antenna adaptor
• 1 x Rubber antenna

Warranty

1 year Uniden Australia manufacturer warranty.

Cannot receive encrypted transmissions. Specifications subject to change without notice.
