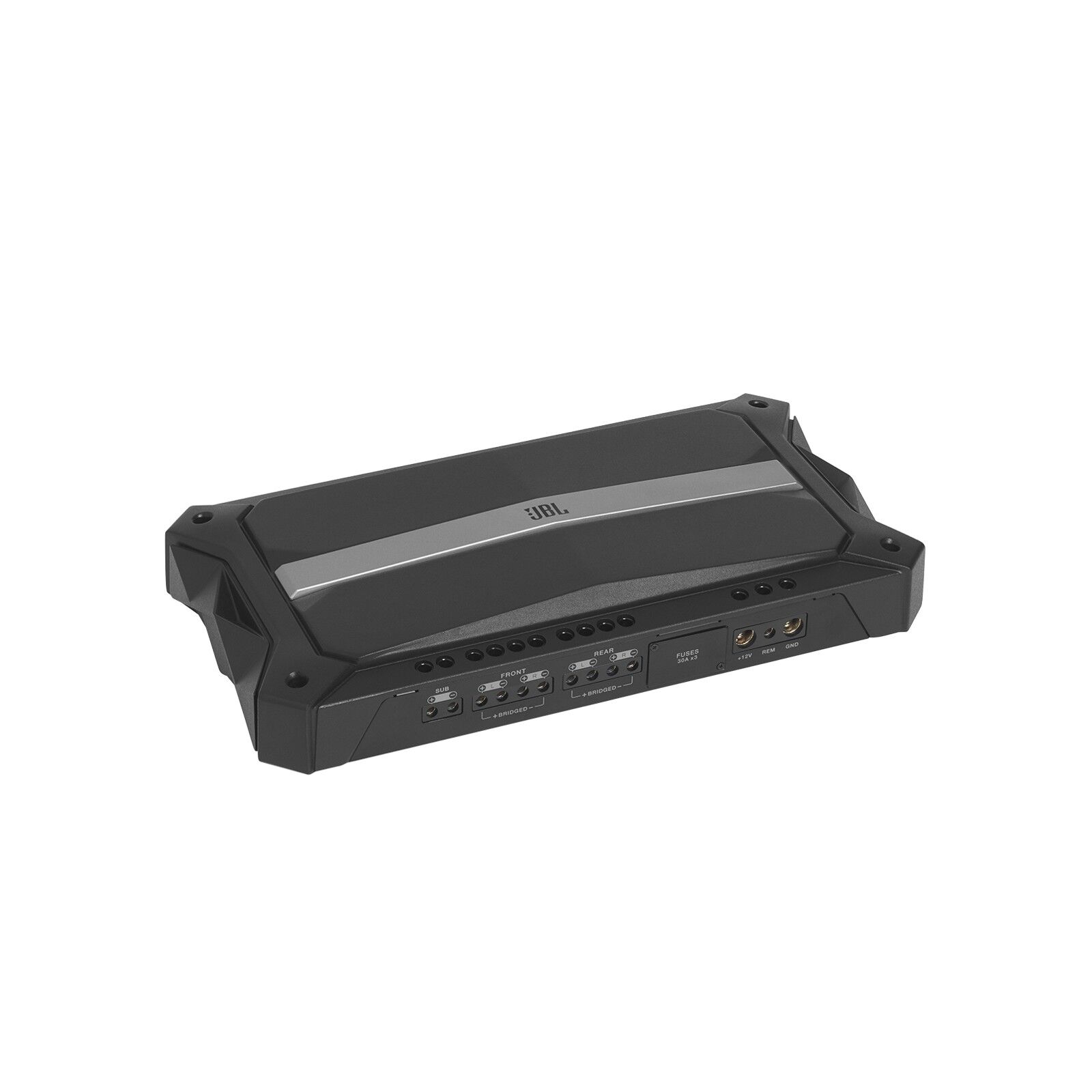

JBL Stadium 5 5 Channel Amplifier

Calculate Shipping

High-performance full-range 5-channel Class D car amplifier. Max Power 2300W Peak; Power Output, 4Ω (Full Range Channels) 75Wrms x 4,

Overview

Stadium mono and full-range, multi-channel amplifiers deliver the efficiency and power you expect from Class D amplifiers – and the performance you expect from JBL. The comprehensive all new E.A.R.L terminal and power adapter (5-channel & mono block) enables easy installation and optimized performance. For the 5-channel and mono amplifier models, the remote bass control allows the user to increase and decrease bass output independent of head unit tone controls. The industrial design not only provides an elegant look, but also enhances power dissipation to ensure long term reliability. Stadium amplifiers give you power to shape your car audio experience in new ways.

Key Features

Class D Design: Every Stadium amplifier, including the full-range models, features high-efficiency Class D topology
Full On-Board Protection: JBL Stadium amplifiers have on-board circuitry to protect from shorts, temperature, overvoltage and undervoltage
Compact footprint: With it becoming more and more difficult to find spacious locations for amplifier mounting, JBL Stadium amplifiers have been developed in a small compact form factor to allow more location versatility
Full-Range Line Outputs: The full-range Stadium amplifiers (Stadium 5, Stadium 4 and Stadium 2) include full-range line outputs
Low Distortion: JBL Stadium amplifiers have been engineered to deliver the lowest distortion possible, enhancing the audio experience regardless of output level
Proprietary High-Conductivity Terminals: All JBL Stadium amplifiers come equipped with newly introduced E.A.R.L terminal for better grounding
Remote Bass Control: The 5-channel and mono amplifiers come with a remote bass control. This allows for increasing or decreasing bass independent of the head units tone controls

What's Included

1 x Amplifier
6 x Differential Speaker-Level Adapter
3 x Spare Fuses
4 x Phillips Screws
1 x Remote Bass Control & Cable
1 x E.A.R.L Terminal
3 x Self-Tapping Screws
1 x Power Terminal Block
1 x Owner’s Manual

(JBL-STADIUM-5)

Class D Design: Every Stadium amplifier, including the full-range models, features high-efficiency Class D topology
Full On-Board Protection: JBL Stadium amplifiers have on-board circuitry to protect from shorts, temperature, overvoltage and undervoltage
Compact footprint: With it becoming more and more difficult to find spacious locations for amplifier mounting, JBL Stadium amplifiers have been developed in a small compact form factor to allow more location versatility
Full-Range Line Outputs: The full-range Stadium amplifiers (Stadium 5, Stadium 4 and Stadium 2) include full-range line outputs
Low Distortion: JBL Stadium amplifiers have been engineered to deliver the lowest distortion possible, enhancing the audio experience regardless of output level
Proprietary High-Conductivity Terminals: All JBL Stadium amplifiers come equipped with newly introduced E.A.R.L terminal for better grounding
Remote Bass Control: The 5-channel and mono amplifiers come with a remote bass control. This allows for increasing or decreasing bass independent of the head units tone controls

Specifications

Brand	JBL
Model	Stadium 5
Max Power	2300W Peak
Power Output, 4Ω (Full Range Channels)	75Wrms x 4, <0.1% THD+N
Power Output, 2Ω (Full Range Channels)	100Wrms x 4, <0.1% THD+N
Power Output, 4Ω Bridged (Full Range Channels)	200Wrms x 2, <0.3% THD+N
Signal-to-Noise Ratio	>=80dB (ref 1W output @ 4Ω)
Power Output, 2Ω (Subwoofer Channel)	350Wrms x 1, <0.1% THD+N
Power Output, 4Ω (Subwoofer Channel)	200Wrms x 1, <0.1% THD+N
Signal-to-Noise Ratio	>80dB (ref 1W output @ 2Ω)
