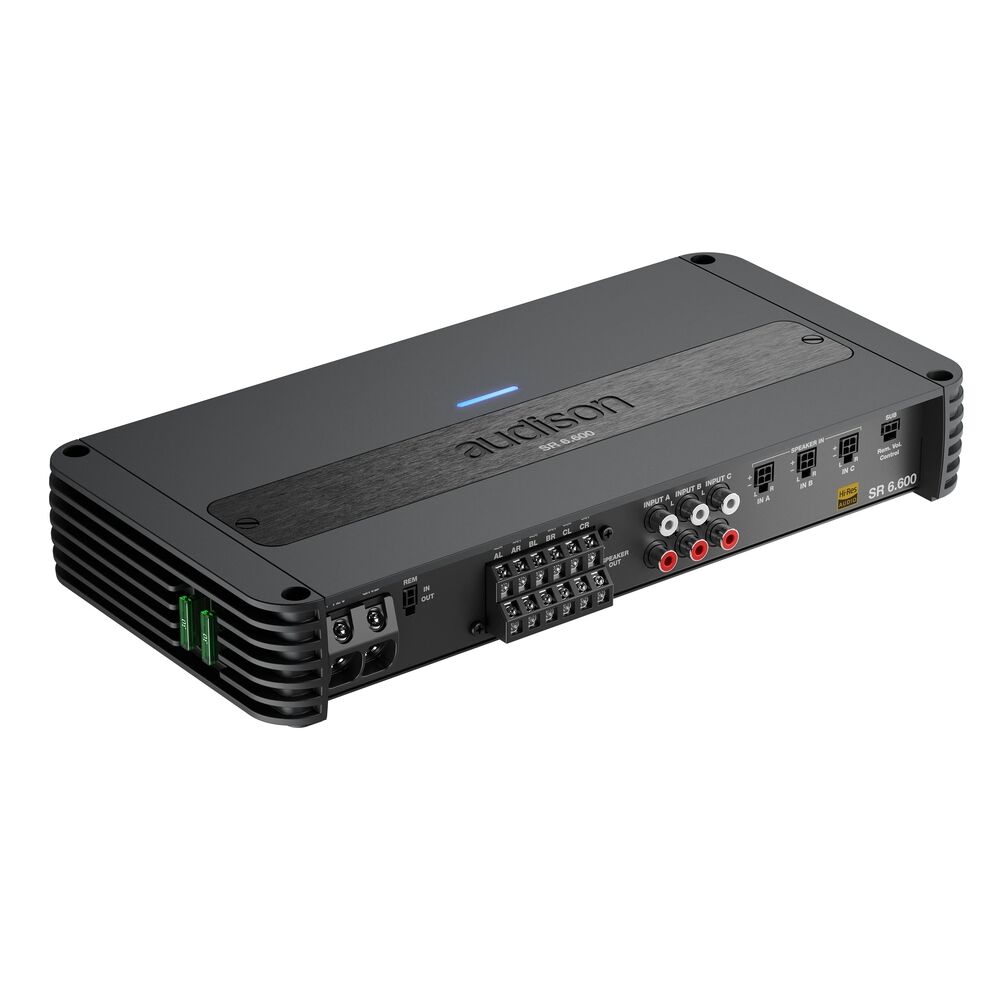

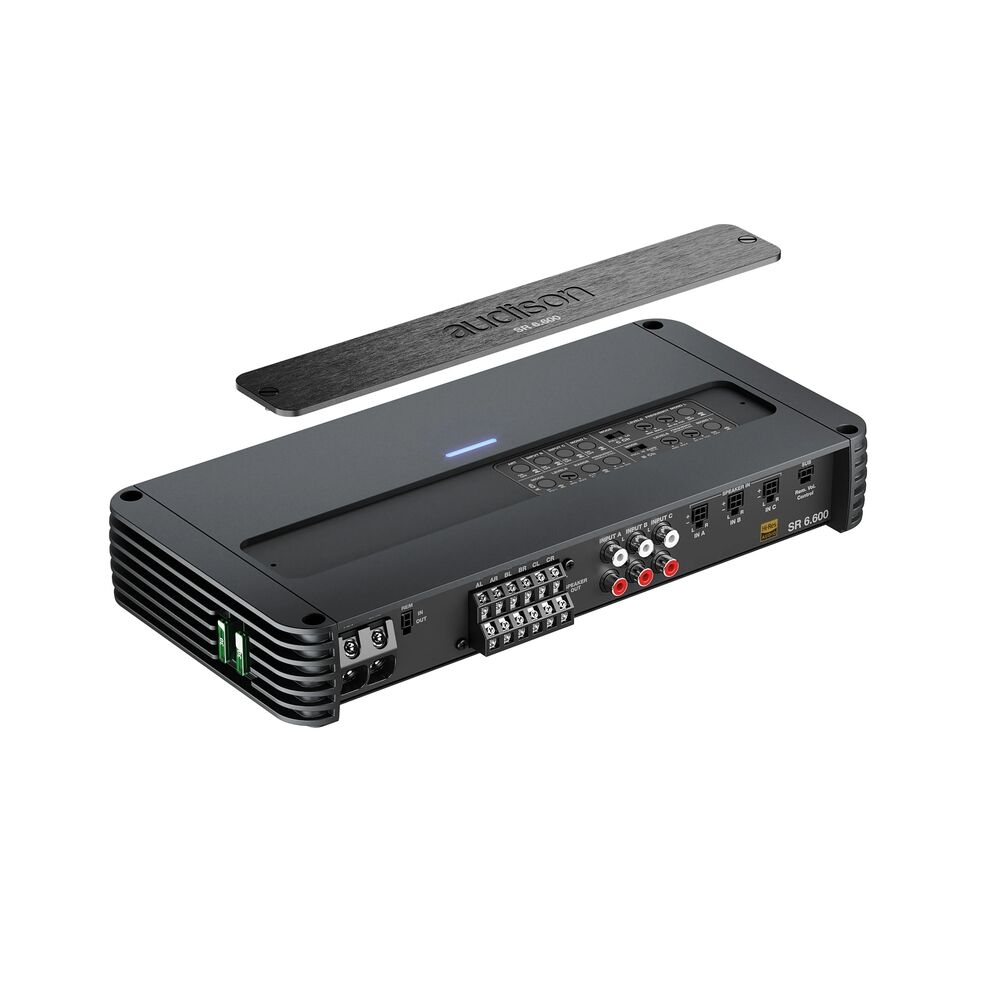

Audison SR 6.600Amplifier | 1120 W total power | 140 W x 4 + 185 x 2 @2ohm

Description

At Audison, our commitment to delivering unparalleled sound quality and innovation in-car audio systems remains unwavering. We are thrilled to present our latest masterpiece – the Audison SR 6.600 6-Channel Amplifier with Hi-Res Audio Certification. This amplifier is engineered to redefine your in-car listening experience, setting a new standard in audio excellence.

Channels	6
Class	D-Class
Efficiency	>87%
Hi Level Input	Yes
Low Level Input	Yes
Digital Input	No
Power supply voltage / fuse	11 ÷ 17 VDC
Operating power supply voltage	11 ÷ 17 VDC / 2 x 30A
Idling current	2.2 A
Idling current when off	0.04 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power	54 A
Remote OUT	4 ÷ 15 VDC (150 mA)
Remote IN	4 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)	1.5 ÷ 7 VDC

Amplifier Stage

Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power	0.05 %
Bandwidth A	10Hz ÷ 42 kHz
S/N ratio A	102 dBA
Damping factor A	A Ch/B Ch 100 C Ch 400
Input sensitivity Pre-In	0.32 ÷ 8 VRMS
Pre In Impedance	>10 kOhm
Input sensitivity Speaker-In	1.6 ÷ 40 VRMS
Input impedance Speaker-In	3Ohm ÷ 100kOhm (it depends by the Polyfuse specifications)
Total Power RMS	1120 W
Minimum load impedance	Ch 1-4: 2Ω Ch 5-6: 1Ω 1+2/3+4 Bridged: 4Ω 5+6 Bridged: 2Ω
Output Power (RMS) @14.4 VDC, 1% THD	6Ch mode @4Ω: 85 x 4 + 110 x 2 @2Ω: 140 x 4 + 185 x 2 Ch1-4 @4Ω, Ch5-6 @1Ω: 75 x 4 + 340 x 2 Ch1-4 @2Ω, Ch5-6 @1Ω: 140 x 4 + 300 x 2 5Ch mode @4Ω: 85 x 4 + 370 x 1 (Ch5/6 bridged) @2Ω: 130 x 4 + 600 x 1 (Ch5/6 bridged) 4Ch mode @4Ω: 280 x 2 (bridged) + 110 x 2 @2Ω: 130 x 2 + 260 x 1 + 600 x 1 3Ch mode @4Ω: 280 x 2 + 370 x 1 (Ch5/6 bridged) 280 x 2 (Ch1-4 @4Ω) + 600 x 1 (Ch5/6 bridged @2Ω)
Adjustable Crossover	Yes
