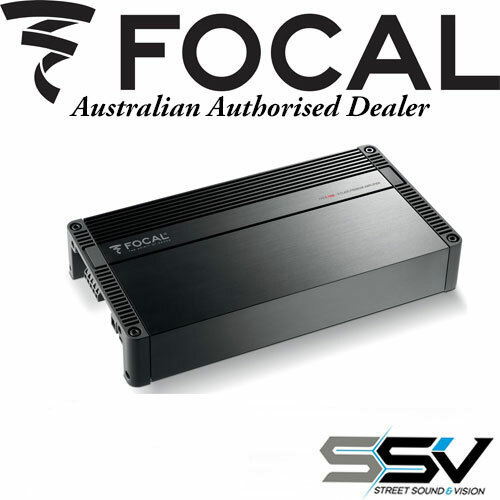

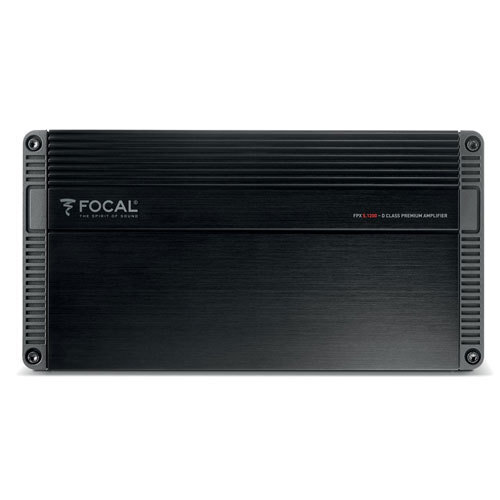

Focal FPX 5.1200 Amplifier 5 Channel 4 x 120W

5-channel FPX 5.1200 amplifier has a maximum power of 4 x 120 Watt + 1 x 720 Watt at 2 Ohms!

The input selector (2/4/6 channels) duplicates channels, meaning there will always be 5 output channels, even if the head unit only has one or two stereo outputs.

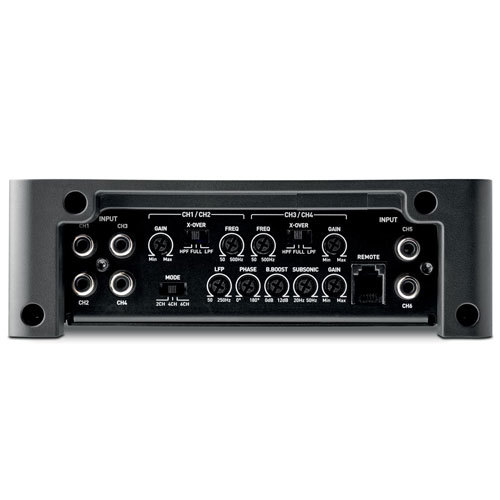

To perfectly tune the subwoofer to the rest of the installation, the bass channel has a low-pass active crossover, a bass equaliser, phase adjustment and a subsonic filter (particularly useful for cutting off frequencies which are too low for a small subwoofer). The remote control enables you to adjust the bass level from the driving seat depending on the type of music you’re listening to.

Stable at 4 and 2 Ohms, this new FPX amplifier will drive most speaker drivers on the market with just the right amount of power: 4 x 75 Watts + 1 x 420 Watts RMS at 4 Ohms (CEA standard). With its power and contained volume, FPX 5.1200 makes the installation easier in order to make the most of your boot space.

• Classe D amplifier
• Input selector (2/4/6 channels)
• Stable under 4 and 2 Ohms
• Adjustable active crossover for each pair of channels
• Dimensions: 13.25″ x 6.8″ x 2.25″ (337 x 175 x 57mm)

TECHNICAL SPECIFICATIONS

MODE 5/4/3 CHANNELS - POWERFUL AND COMPACT

Performance

CREATE YOUR SOUND

• Class D amplifier - 5/4/3 channels
• CEA power (4 ohms):
• 4 x 75Wrms + 1 x 420Wrms
• Power max (2 ohms):
• 4 x 120Wrms + 1 x 720Wrms
• Power max (channels 1 to 4 bridged at 4 ohms)
• + channel 5 at 2 ohms: 2 x 240Wrms + 720Wrms
• Bandwidth: 10Hz - 20kHz
• Total harmonic distortion: < 0.03%
• SNR (1W/A): > 75 dB
• High-Pass / Low-Pass filters channels 1 to 4:
• 50Hz – 500Hz
• Channel 5 (Subwoofer): Subsonic filter
• (High-pass) 10Hz - 50Hz +
• Low-pass filter 50Hz - 250Hz
• Channel 5 Bass-Boost : 45Hz / 0 to 12dB
• Phase adjustable from 0 to 180° for channel 5
• Copy mode: (6 CH/4 CH/2 CH)
• Full range mode
• Protection: Short circuit / low impedance /
• reverse polarity / DC / power drop /
• heat protection
• Dimensions (L x H x W): 1317/64" x 21/4" x 657/64"

(337 x 175 x 57mm)

Weight: 9 lbs (4,1kg)
