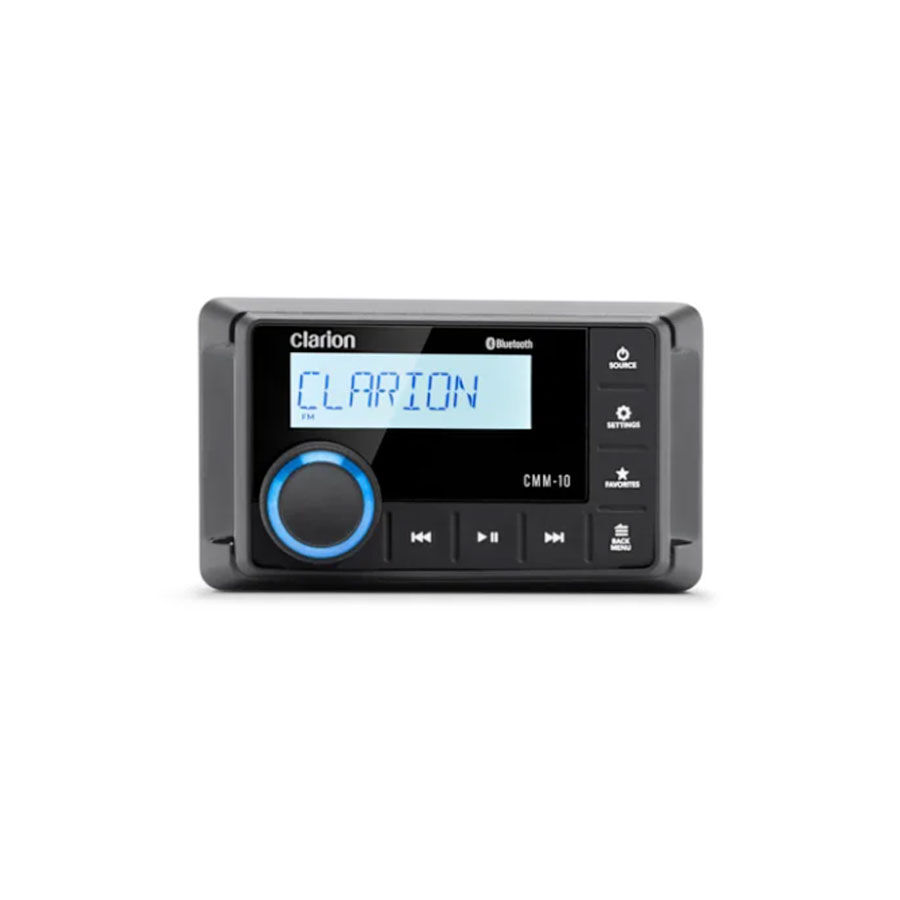

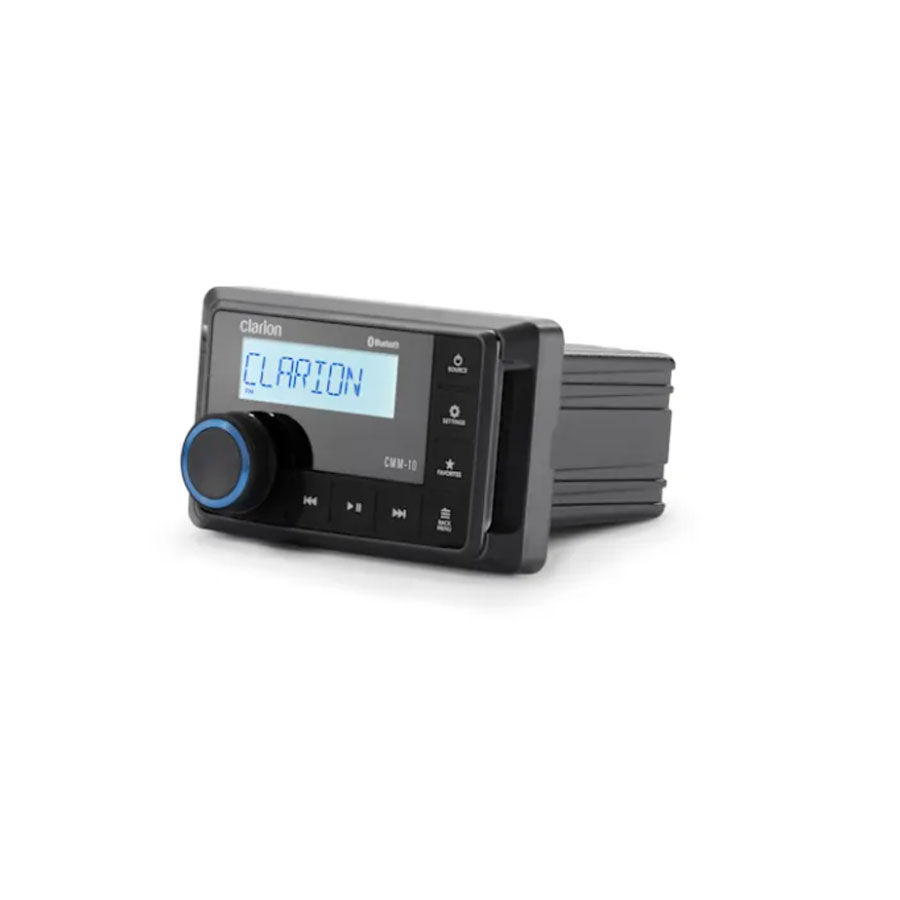

Clarion® marine compact source unit with LCD display (CMM-10)
010-03442-00
SKU:CMM-10
RRP $299.00
$260.00
SAVE $39.00 (13%)
| Physical dimensions (Height) | CMM-10: 63 mm (2.48") CMM-10GR: 102 mm (4.03") |
|---|---|
| Physical dimensions (Width) | CMM-10: 110 mm (4.33") CMM-10GR: 102 mm (4.03") |
| Physical dimensions (Depth) | 80 mm (3.15") |
| Control Surface Dust/Water Rating (when properly installed) | IP66 |
| Operating temperature range | -20° C to +60° C (-4° F to +140° F) |
| Current draw (max) | 15 A |
| Warranty | 1 year |
Networking |
|
| Bluetooth® wireless range | Up to 11 metres (35 ft) |
|---|---|
| Wireless frequencies/protocols | BLUETOOTH® |
Audio |
|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 20 W x 4 |
|---|---|
Electrical features |
|
| POWER INPUT | 10-16 VDC |
|---|---|
Stereo features |
|
| Display Size | CMM-10: 53 mm (2.09") CMM-10GR: 53mm (2.09") |
|---|---|
| Display type | Monochrome, segmented, TFT LCD backlit |
| Optically bonded display | |
| Built-in amplifier | Class AB (4 Ω) |
| Multi-Zone™️ technology | |
| Bluetooth® wireless technology | |
| DAB+ ready | See Additional |
| Multi-language interface | English |
Sources |
|
| Supported sources | Digital AM/FM with RDS/NOAA Weather Radio (US only)/DAB+ (CMM-10i: Europe only)/BLUETOOTH®/USB audio/iPhone/iPod |
|---|---|
| Supported audio formats (USB) | MP3, WMA, FLAC, WAV |
Connections |
|
| USB 2.0 ports | 1 USB storage device (1 A charging output) |
|---|---|
| Antenna ports | 1 |
| Speaker connections | 4 (2 zones amplified) |
| RCA pre-out (left, right and subwoofer - requires external amplification) | 2 zones (L+R) or Zone 2 as subwoofer |
| Line out (requires external amplification) | 2 (L + R per zone) |
| Subwoofer out (requires external amplification) | Occupies Zone 2 |
Additional |
|
| Additional | DAB+ Ready: CMM-10i: yes |
|---|---|
(CMM-10)
