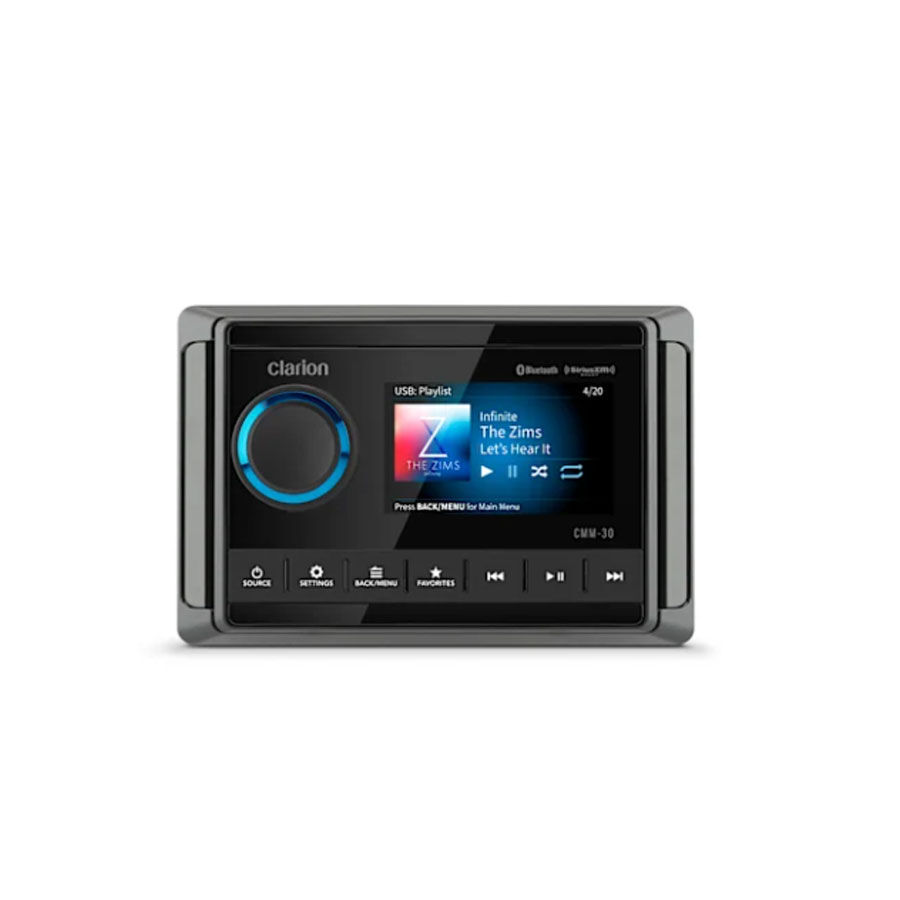

Clarion® marine soure unit with LCD Display (CMM-30)

Clarion® marine soure unit with LCD Display (CMM-30)

010-03224-00

SKU:CMM-30

RRP $729.00
$635.00
SAVE $94.00 (13%)


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $9.95
Shipping with Signature

Physical dimensions (Height) CMM-30: 3.90" (99 mm)
CMM-30BB: 7.90" (201 mm)
Physical dimensions (Width) CMM-30: 151 mm (5.94")
CMM-30BB: 138 mm (5.42")
Physical dimensions (Depth) CMM-30: 75 mm (2.95")
CMM-30BB: 138 mm (2.01")
Control Surface Dust/Water Rating (when properly installed) IP66
Operating temperature range -20° C to +60° C (-4° F to +140° F)
Current draw (max) 15 A
Warranty 1 year

Networking
NMEA 2000® LEN 1 (50 mA)
Bluetooth® wireless range Up to 11 metres (35 ft)
Wireless frequencies/protocols BLUETOOTH®

Audio
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) 25 W x 4

Electrical features
POWER INPUT 10-16 VDC

Stereo features
Display Size CMM-30: 76 mm (3")
Display type CMM-30: colour TFT LCD backlit
Display resolution CMM-30: 640 x 360
Optically bonded display Yes (CMM-30)
Built-in amplifier Class-D (2 Ω stereo-stable)
Multi-Zone™️ technology
Bluetooth® wireless technology
SiriusXM-ready
Multi-language interface English
Software updates

Sources
Supported sources Digital AM/FM with RDS/NOAA Weather Radio (US only)/BLUETOOTH®/USB audio/iPhone/iPod/AUX/SiriusXM-Ready (USA & CA only, requires subscription and SiriusXM Connect vehicle tuner)
Supported audio formats (USB) MP3, WMA, FLAC, WAV

Connections
Auxiliary inputs (RCA) 1 (2V or 1V RMS input sensitivity)
NMEA 2000® ports 1 (Micro-C connector)
USB 2.0 ports 1 High-speed connection for use with iPhone®/iPod® (MFi Certified) or USB storage device (2.1 A charging output)
SiriusXM ports 1
Antenna ports 1
Speaker connections 4 (2 zones amplified)
RCA pre-out (left, right and subwoofer - requires external amplification) 4 zones (L+R) or Zone 4 as subwoofer
Line out (requires external amplification) 4 (L + R per zone)
Subwoofer out (requires external amplification) Occupies Zone 4

(CMM-30)
