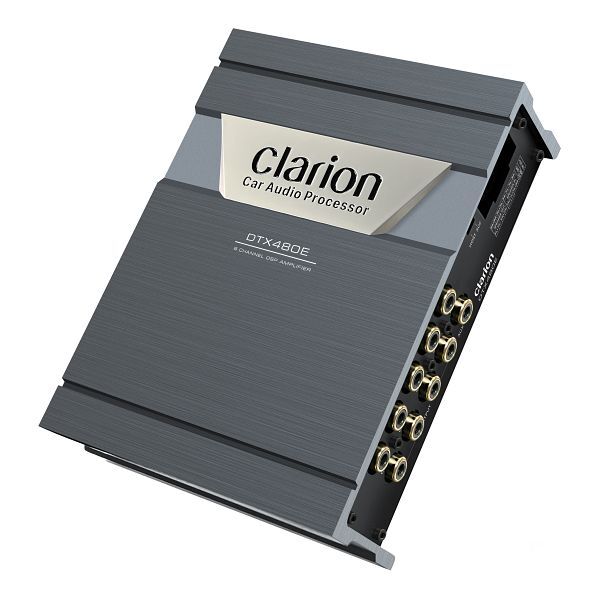

Clarion DTX480E 4-Channel 200W Amplifier with 8-Channel DSP

The Clarion DTX480E brings together powerful tuning flexibility and compact design in an 8-channel DSP amplifier built for modern car audio systems. With multiple input options including high-level, AUX, USB-A, optical, and coaxial, it integrates easily into both factory and aftermarket setups. The amplifier delivers up to 50W peak per channel (CH1-4), making it a strong fit for improving sound quality without overhauling your entire system.

Built around a Class A/B architecture, the DTX480E offers precise tuning through a 31-band equalizer, advanced crossover filters, and time alignment on each channel. You can customise your soundstage down to the smallest detail with individual phase, delay, and filter settings. Despite its compact size, it provides professional-grade audio control and performance, ideal for users who demand clarity, depth, and balance in their vehicle sound systems.

Specification
Inputs:
4 CH high-level
AUX
Optical/Coax
USB-A (U Disk)
Outputs:
4 CH high-level
8 CH RCA
Amplifier Type: Class A/B
Peak Power:
CH1-4: 50W
Output Signal Equalizer:
31 Band EQ
Frequency Range 20Hz-20kHz (Resolution 1Hz)
Q value: 0.429 - 16.052
Gain: -20dB ~ +20dB (Resolution 0.1dB)
Output Signal Frequency: Each channel with multi-order high-low pass independent filter.
Filter types: Link-Riley, Butterworth & Bessel
Filter crossover: 20Hz - 20kHz (Resolution 1Hz)
Filter slope: OFF, 6dB/Oct to 48dB/Oct
Output Phase: 0 - 180
Output Delay:
0 - 10,000ms
0 - 346cm
0 - 136in
Dynamic Range: >102dB
S/N Ratio (RCA): >98dB
T.H.D: 0.03%
Frequency Response: 20Hz - 20kHz
Input Impedance:
RCA: 10k Ohm
High Level: 4.7 Ohm
RCA Output Impedance: 20 kOhm
Signal Input Range (Max):
RCA: 1-6Vpp
High Level: 8-28Vpp
Signal Output Range (Max):
RCA: 6Vpp
Operating Temp: -40 to +60 degrees
Working Voltage: DC 9V-17V
Remote Input: High Level Sense, Acc Start
Remote Output: +12V DC (100mA)
Standby Power: 0.1W
Weight:
Dimensions: 167(L) x 131(W) x 49(H)mm

Features

• 8-channel DSP amplifier with wide compatibility for multi-speaker setups
• 31-band EQ with 0.1dB resolution and detailed frequency control for fine-tuned sound
• Supports high-level, AUX, optical, coaxial, and USB inputs for flexible system integration
• Class A/B amplifier design delivers clean output with low distortion (0.03% THD)
• Multi-order high/low pass filters per channel with selectable crossover types
• Time alignment with up to 10,000ms delay per channel for precise sound staging
• 102dB dynamic range and >98dB S/N ratio for high-fidelity audio playback
• Compact size (167 x 131 x 49mm) allows for discreet installation in tight spaces
