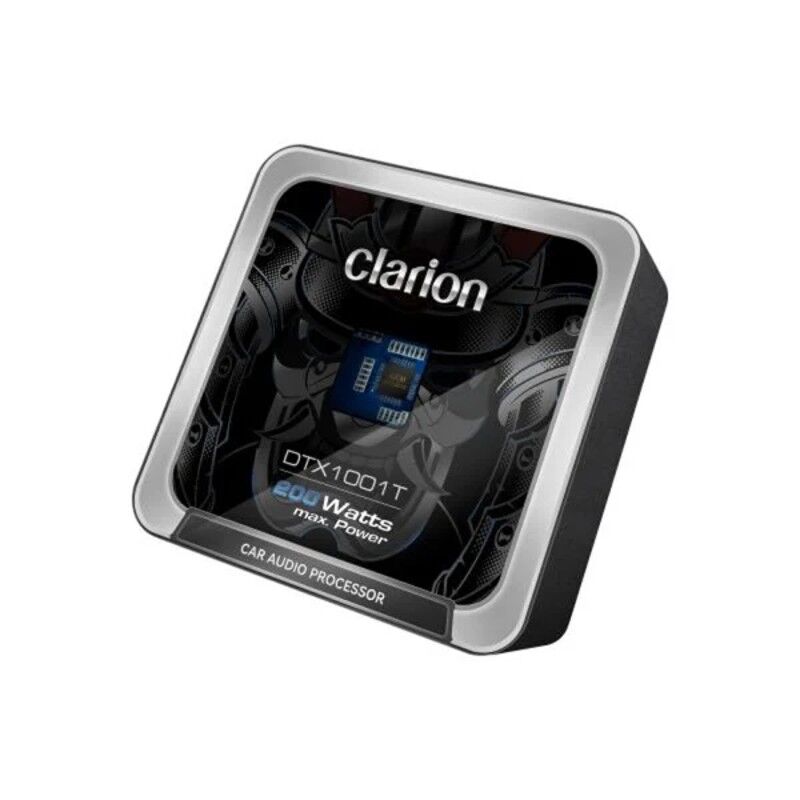

Clarion DTX1001T 4-Channel 200W Amplifier with 6-Channel DSP

Clarion DTX1001T 4-Channel 200W Amplifier with 6-Channel DSP

SKU:DTX1001T

$249.00


In Stock
Add To Compare

Calculate Shipping

The Clarion DTX1001T is a space-efficient 6-channel digital signal processor and 4-channel Class A/B amplifier designed for installations where footprint is critical but sonic performance cannot be compromised. Measuring just 145mm × 145mm × 36mm and weighing 0.76kg, this unit delivers 200W maximum power (50W peak per channel) while providing comprehensive DSP tuning capabilities typically found in much larger processors. The Class A/B amplification architecture prioritizes sonic accuracy with exceptionally low distortion (0.03% THD) and impressive dynamic range (102dB), making this ideal for upgrading factory systems in vehicles where mounting space under seats or behind panels is severely limited. With four high-level inputs featuring signal sensing for automatic power-on, the DTX1001T integrates seamlessly with OEM audio systems without requiring aftermarket head unit replacement. The 31-band parametric equalizer per channel, independent crossover filters with selectable topologies (Linkwitz-Riley, Butterworth, Bessel), and time alignment up to 20,000ms deliver professional-grade tuning capability in a package small enough to hide almost anywhere.

Key Specifications

  • 6-channel DSP processor with 4-channel Class A/B amplification
  • Maximum power output: 200W (50W peak per channel across CH1-4)
  • 4 high-level inputs: 8-28Vpp signal range @ 4.7Ω impedance
  • 6 total outputs: 4 high-level + 2 RCA for system expansion
  • 31-band parametric EQ per channel: 20Hz-20kHz, Q value 0.429-16.052, ±20dB gain, 0.1dB resolution
  • Independent high-pass/low-pass filters per channel: 20Hz-20kHz, 6-48dB/octave slopes
  • Output delay: 0-20,000ms (692cm/272in) for precise time alignment
  • Filter types: Linkwitz-Riley, Butterworth, Bessel
  • Dynamic range >102dB, signal-to-noise ratio >98dB, THD 0.03%
  • Operating temperature: -40°C to +60°C (extreme climate capability)
  • Operating voltage: DC 9-17V
  • Ultra-compact dimensions: 145mm (L) × 145mm (W) × 36mm (H)
  • Lightweight: 0.76kg (packaged)

(DTX1001T)
