- Features and Functions
•4-Channel, Class-AB, Competition Audiophile Amplifier
•Signal to noise ratio of over 110dB
•Coupled the output drivers
•Highest HFE (Gain) Sanken selected output devices
•Differential balanced input stage
•0.1% resistors for lowest possible noise floor
•TI LME49720 (BJT) op-amps on the inputs
•TI LME49720 (BJT) op-amps in the signal path
•WIMA MKS2 series caps in the signal path
•Extremely low ESR caps throughout
•Proprietary patented RCA connectors
Specifications
•Power @ 4Ω: 4 x 150 watts
•Power @ 2Ω: 4 x 250 watts
•Power @ 4Ω Bridged: 2 x 500 watts
•THD @ Rated Power < 0.05%
•Signal to Noise Ratio > 110dB
•Frequency Response 10Hz to 30,000Hz ±1dB
•Input Sensitivity 1v to 9v
•Dimensions in mm: 190(W) x 62(H) x 444(L) Overall: 190(W) x 62(H) x 479(L)

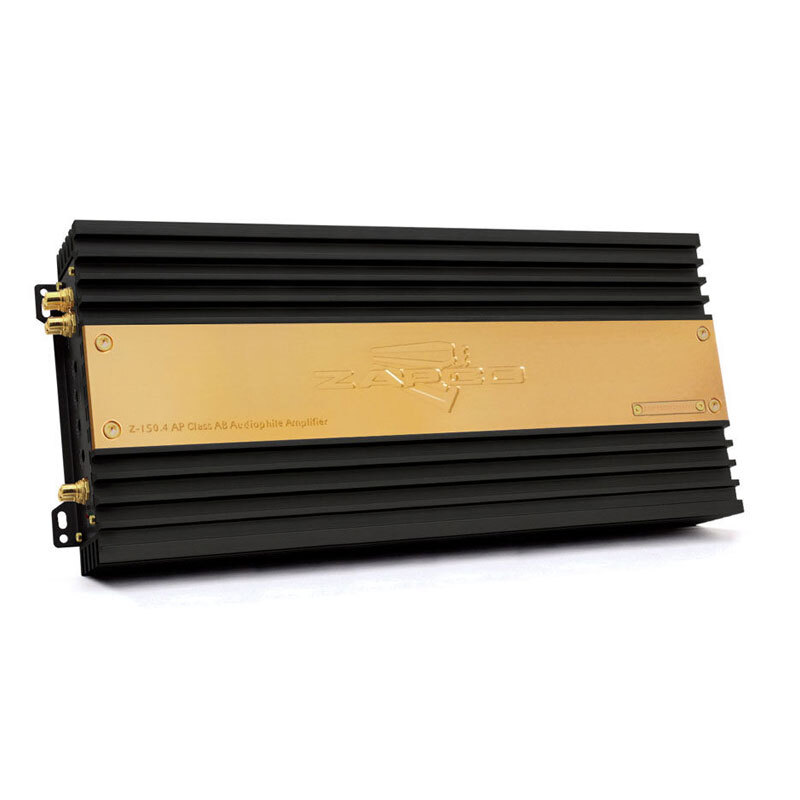

(Z.150.4AP)
