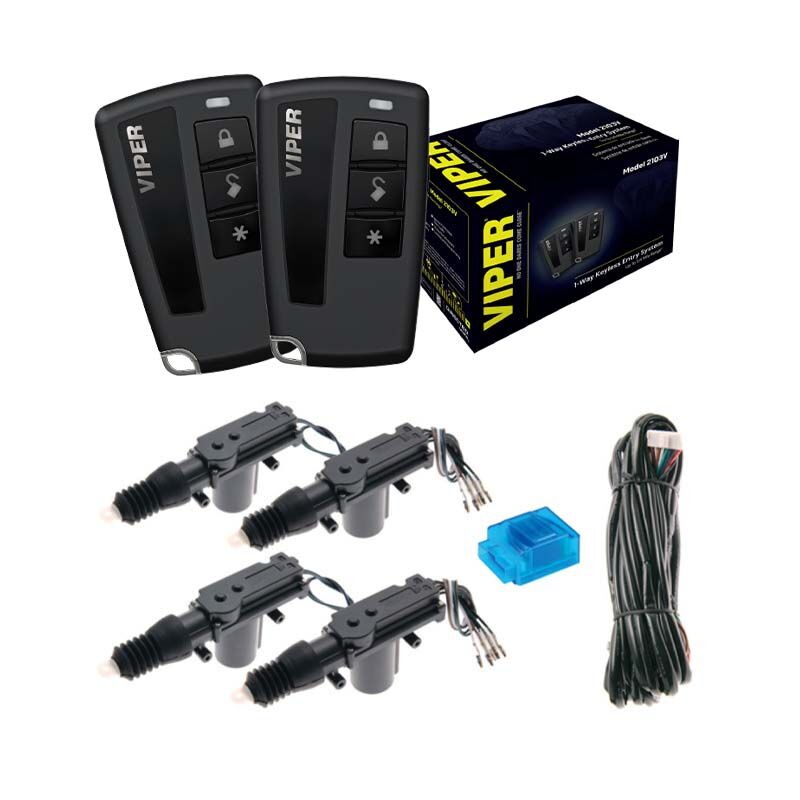

Viper Keyless Entry 2103V & Central Locking Kit To Suit Toyota Land Cruiser 79 Series Dual Cab

This package combines the functionality of the TP-360-42 Central Locking Kit and the feature-rich Viper 2103V 1-Way Keyless Entry System

• Electro-Mechanical activation
  Lock and unlock all doors by operation either front doors
• Electro-Mechanical activation
  This module uses negative lock and unlock signals from a remote alarms/immobilisers to mechanically operated the lock mechanism of a car door

OPERATION
MASTER AND SLAVE ACTUATORS
Each kit uses a master actuator for each front door, and a slave actuator for the rear door (4 in total). Master actuators control all actuators

FULL COMPLEMENT OF HARDWARE
Supplied with all metal brackets, superior 3 point fixing clamps with slot / cross head screws, rods, worms, speed nuts and cabling required for standard installation

INTELLIGENT SWITCH CONTROLLER
Includes active central locking controller


WIRING
PRE-LOOMED WIRE HARNESS
Generous wire loom to connect four doors, all wires fully sheathed


SPECIFICATIONS
WIDE OPERATING VOLTAGE
Operating voltage +9VDC to +15VDC

OPERATING TEMPERATURE
-20 degrees to +85 degrees for equipment designed to be installed within vehicle cabin

POLARITY PROTECTION
The system circuitry is design to protect itself against accidental battery polarity reversal. This can happen when replacing the vehicle battery

SHORT CIRCUIT PROTECTION
The power supply wire to the system is protected against an internal fault within the system

CURRENT RATING
All relays rated to carry 30amps continuous


COMPATIBILITY
COMPATIBLE WITH CYCLOPS REMOTE CONTROL SYSTEMS

Cyclops range of immobilisers/alarms : P355, P375, P375B, P385, P755, P775, P775B, P785, KE-CLR-TX90, KE-CLR-TX11, S35i, S35B, S35C, S75i, S75B and S75C

WARRANTY
MANUFACTURERS WARRANTY

Guarantees product is free from manufacturing defects for 12 months from time of purchase
STANDARDS COMPLIANCE
MANUFACTURED TO INTERNATIONAL STANDARDS
Produced in Accordance with UNI-ES-ISO 9002
