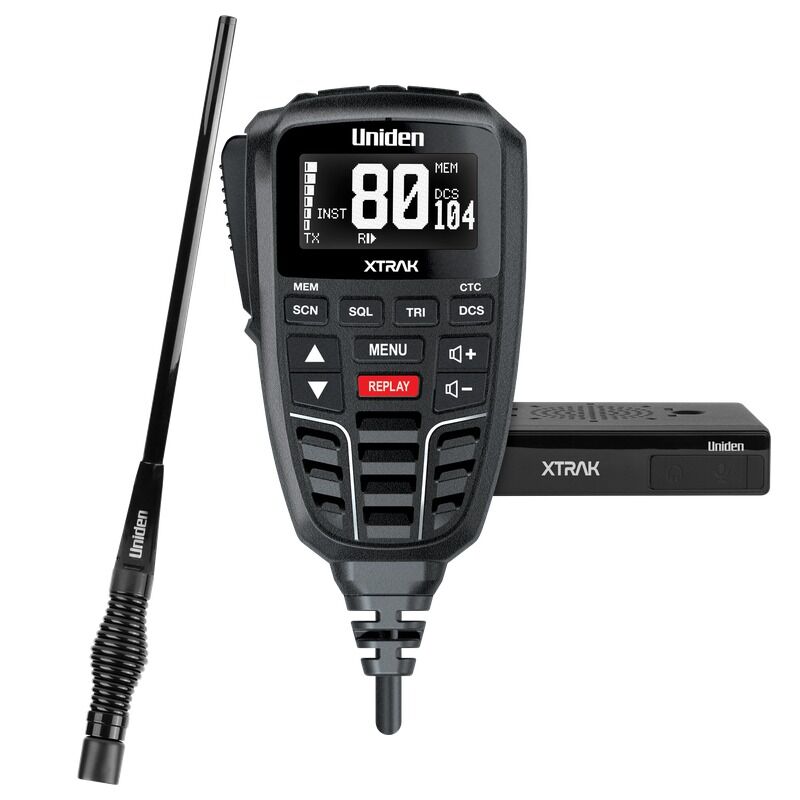

Uniden XTRAK80 SEPT BUNDLE - XTRAK 80 Smart UHF Radio + ATX890S Heavy Duty Raydome Antenna

The Uniden XTRAK80 SEPT BUNDLE pairs the XTRAK 80 smart UHF radio with the ATX890S heavy duty fibreglass raydome antenna for a complete, rugged in-vehicle UHF setup.

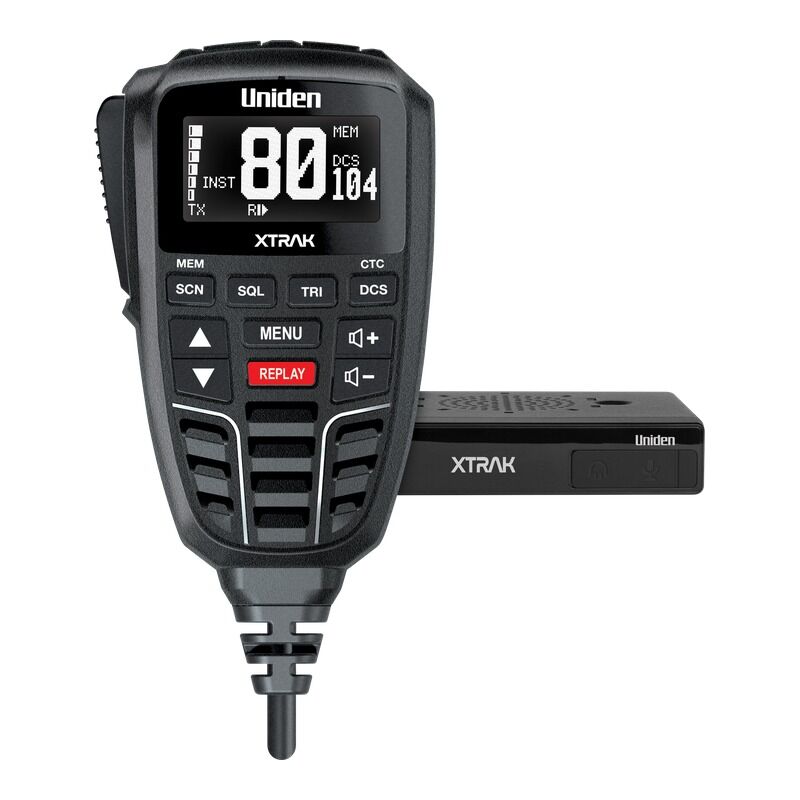

The XTRAK 80 is the flagship smart UHF radio in the Uniden range. Its large, high contrast anti-glare OLED display and backlit keypad are clear and easy to read in all lighting conditions, while the powerful integrated 2-watt speaker and 4-level voice enhancer give maximum clarity in noisy environments.

Uniden's one-touch Instant Replay lets you record and replay up to 6 minutes of recently received communications, so you won't miss important transmissions. Smart Keys toggle between instant channel, call tone or equaliser, and the magnetic mount holds your speaker microphone quickly and securely. Master Scan technology keeps your group communicating: if your channel is interrupted, all radios in the group automatically jump to a new clear channel.

With a trade quality build engineered for rugged Australian and New Zealand conditions, the XTRAK 80 is ideal for 4WD drivers, recreational drivers, truck drivers and RV/caravan owners.

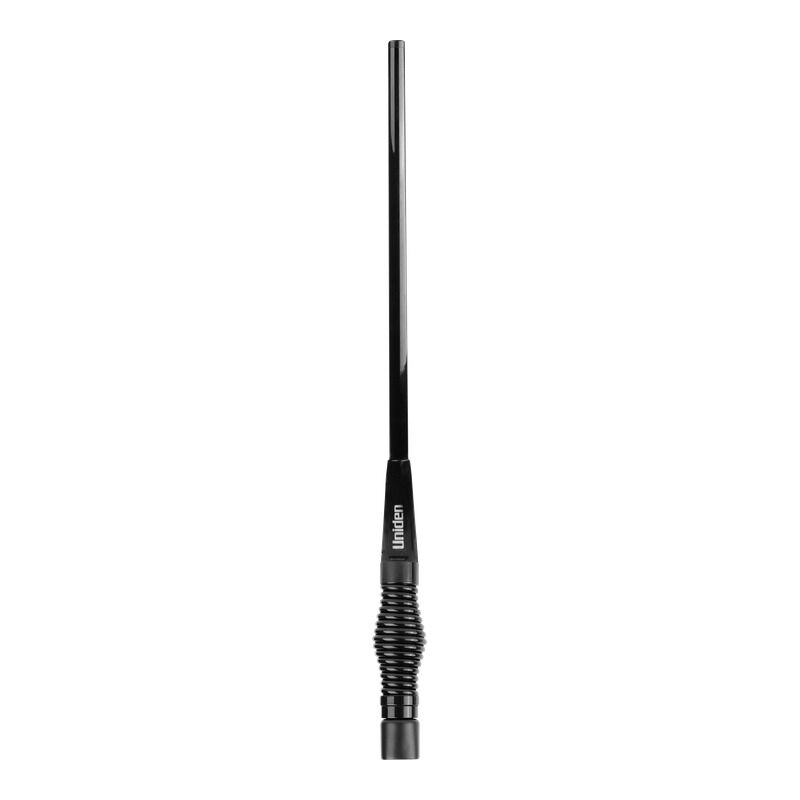

The ATX890S is a heavy duty black fibreglass raydome antenna with aluminium ferrule and stainless steel spring. Engineered for all-round use on flat terrain, in town and country, it is ground independent with 3.0 dBi gain and built for heavy usage in the toughest conditions and off-road environments.

Bundle Includes

• XTRAK 80 – Smart UHF Radio with Large OLED Display
• ATX890S – Heavy Duty Fibreglass Raydome Antenna - Black (3.0 dBi Gain)

Features

• XTRAK 80: smart UHF radio with large anti-glare OLED display on the remote speaker mic
• XTRAK 80: 5 W, 80 UHF channels + 100 extra programmable RX channels
• XTRAK 80: Instant Replay up to 6 minutes, Master Scan, Triple Watch
• XTRAK 80: 2 W mic speaker, magnetic mic mount, 12/24 V
• ATX890S: heavy duty black fibreglass raydome, 3.0 dBi, 612 mm mounted height
• ATX890S: stainless steel barrel spring, aluminium ferrule, locking key & weather cap
•

XTRAK 80 Features

• Designed and engineered in Japan
• Large anti-glare OLED display with dimmer
• 2-watt remote speaker microphone
• Magnetic microphone mount
• 80 UHF channels
• Open / group scan with priority channel watch
• 5-watt maximum TX output power
• 12 / 24 volt suitable for any vehicle
• External speaker jack
• Voice scramble
• Dedicated Instant Replay key: replay up to 6 minutes of received transmissions

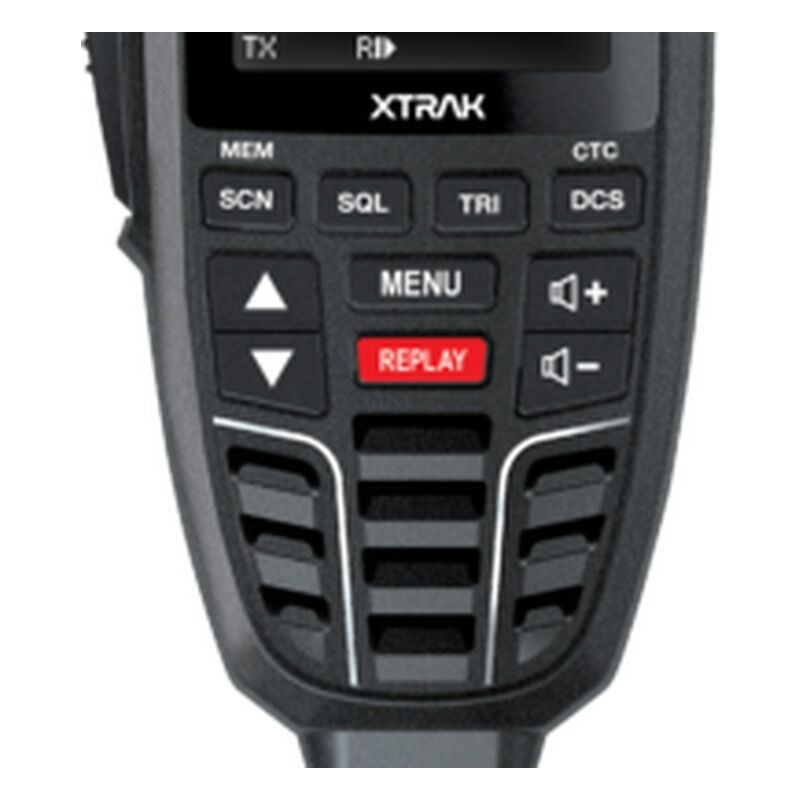

• 3 programmable Smart Keys (instant channels, call tone, equaliser)
• Triple Watch
• 10 level squelch adjust
• Call tone
• Monitor mode
• Equaliser
• 4 level voice enhancer
• 100 extra user programmable RX channels: 400-520 MHz in 12.5 kHz steps
• Master Scan: uninterrupted communication
• Shared channel quiet filter: 104 DCS and 50 CTCSS codes
• Mini compact size: 126.5 mm (W) x 99.8 mm (D) x 24.8 mm (H)

ATX890S Features

• Heavy duty radome antenna with aluminium ferrule and stainless steel spring
• 477 MHz
• Ground independent
• 3.0 dBi gain
• Colour: black
• Spring style: Ø30-45*30 barrel
• Ø6 mm thread
• Whip length: 504 mm
• Mounted height: 612 mm
• Low loss coax cable
• Terminated FME female connector and PL259 adaptor
• Locking key and weather cap
• Suits trucking and 4WD; good all-purpose town & country

Specifications

XTRAK 80 Specifications

ATX890S Specifications

What's in the Box

• 1 x XTRAK 80 base unit
• 1 x XTRAK 80 remote microphone
• 1 x Quick release bracket kit
• 1 x Gimbal mounting bracket
• 1 x Magnetic mic mount
• 1 x 2 m mic extension cable
• 1 x DC power lead with fuse
• 1 x ATX890S antenna with coax cable
• 1 x PL259 adaptor
• 1 x Locking key
• 1 x Weather cap

Warranty

XTRAK 80: 5 years (accessories 1 year); ATX890S: Not stated by Uniden. Uniden Australia manufacturer warranty.

CH22 & CH23 are used for telemetry and telecommand applications; voice communications are not permitted on these channels and transmission is inhibited. CH61, 62 & 63 are for future use and are receive only channels. Specifications subject to change without notice.
