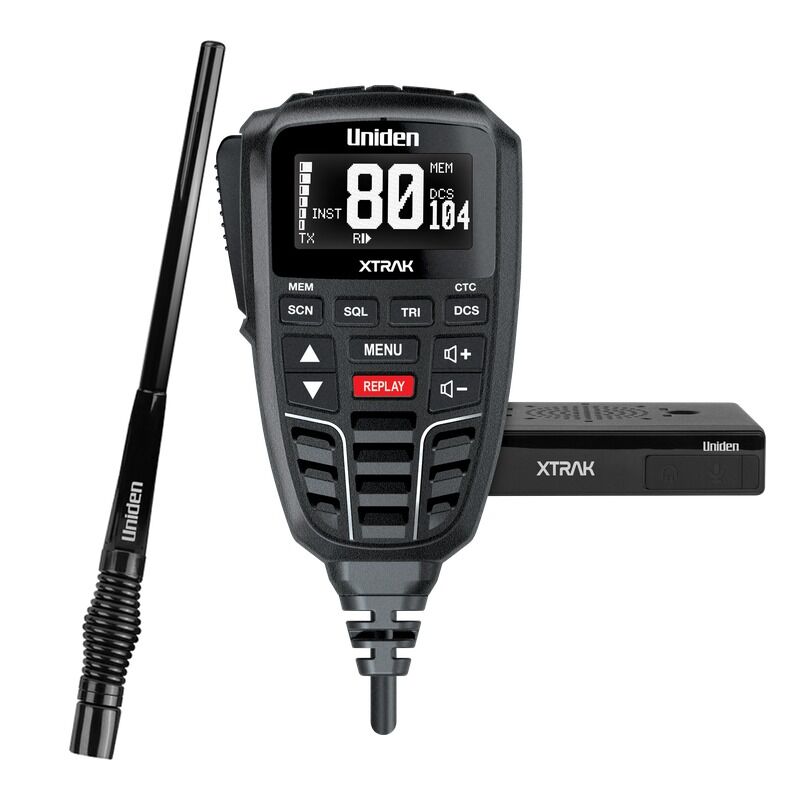

Uniden XTRAK80 BUNDLE - XTRAK 80 Smart UHF Radio + ATX970XS Low Profile Raydome Antenna

The Uniden XTRAK80 BUNDLE combines the XTRAK 80 smart UHF radio with the ATX970XS heavy duty low profile fibreglass raydome antenna in gloss black.

The XTRAK 80 is the flagship smart UHF radio in the Uniden range. Its large, high contrast anti-glare OLED display and backlit keypad are clear and easy to read in all lighting conditions, while the powerful integrated 2-watt speaker and 4-level voice enhancer give maximum clarity in noisy environments.

Uniden's one-touch Instant Replay lets you record and replay up to 6 minutes of recently received communications, so you won't miss important transmissions. Smart Keys toggle between instant channel, call tone or equaliser, and the magnetic mount holds your speaker microphone quickly and securely. Master Scan technology keeps your group communicating: if your channel is interrupted, all radios in the group automatically jump to a new clear channel.

With a trade quality build engineered for rugged Australian and New Zealand conditions, the XTRAK 80 is ideal for 4WD drivers, recreational drivers, truck drivers and RV/caravan owners.

The ATX970XS is a low-profile fibreglass radome UHF antenna finished in high-gloss black and fitted with a heavy-duty stainless steel spring. Engineered for reliable all-round performance across flat terrain, urban environments and country driving, its ground-independent design and 3.0 dBi gain deliver clear, consistent communication. Supplied with 4.5 m of low-loss coax for flexible installation.

Bundle Includes

• XTRAK 80 – Smart UHF Radio with Large OLED Display
• ATX970XS – Heavy Duty Fibreglass Raydome Low Profile Antenna - Gloss Black (3.0 dBi Gain)

Features

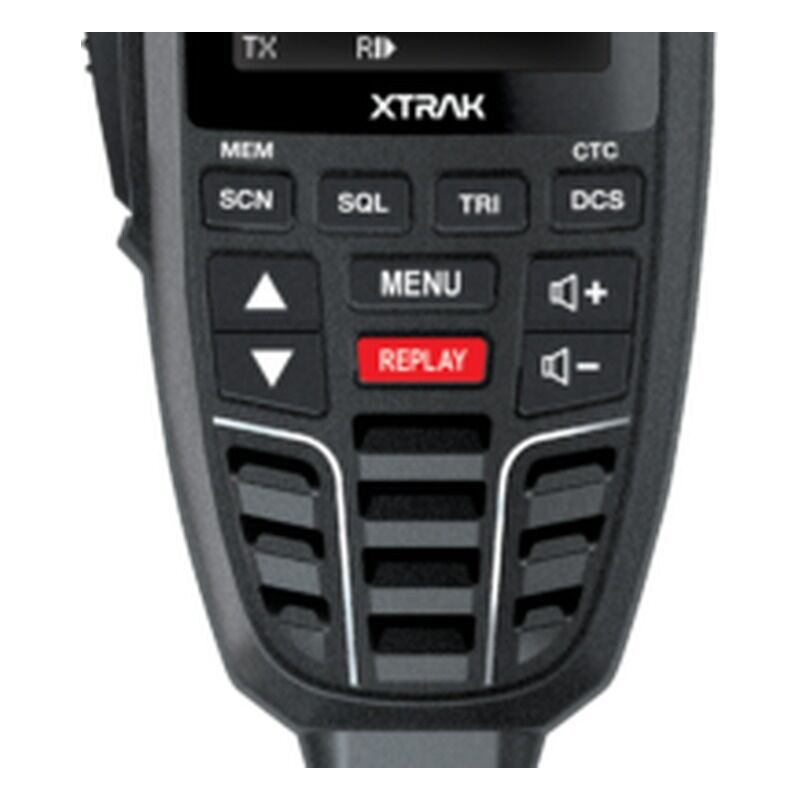

• XTRAK 80: smart UHF radio with large anti-glare OLED display on the remote speaker mic
• XTRAK 80: 5 W, 80 UHF channels + 100 extra programmable RX channels
• XTRAK 80: Instant Replay up to 6 minutes, Master Scan, Triple Watch
• XTRAK 80: 2 W mic speaker, magnetic mic mount, 12/24 V
• ATX970XS: low profile heavy duty fibreglass raydome, gloss black, 3.0 dBi
• ATX970XS: 560 mm mounted height, stainless steel spring, ABS ferrule, 4.5 m coax
•

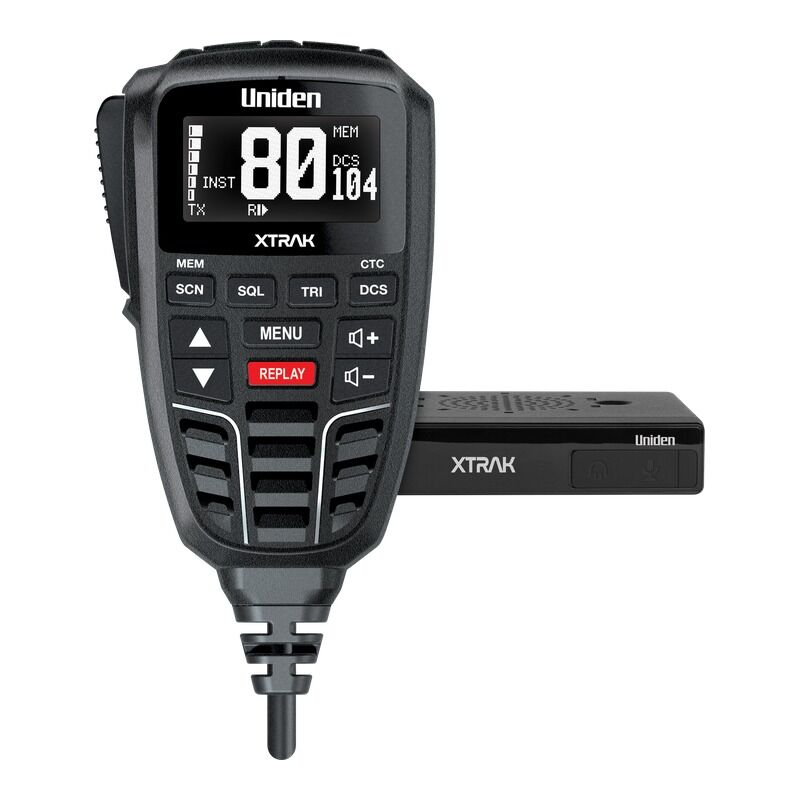

XTRAK 80 Features

• Designed and engineered in Japan
• Large anti-glare OLED display with dimmer
• 2-watt remote speaker microphone
• Magnetic microphone mount
• 80 UHF channels
• Open / group scan with priority channel watch
• 5-watt maximum TX output power
• 12 / 24 volt suitable for any vehicle
• External speaker jack
• Voice scramble
• Dedicated Instant Replay key: replay up to 6 minutes of received transmissions
• 3 programmable Smart Keys (instant channels, call tone, equaliser)
• Triple Watch
• 10 level squelch adjust
• Call tone
• Monitor mode
• Equaliser
• 4 level voice enhancer
• 100 extra user programmable RX channels: 400-520 MHz in 12.5 kHz steps
• Master Scan: uninterrupted communication
• Shared channel quiet filter: 104 DCS and 50 CTCSS codes
• Mini compact size: 126.5 mm (W) x 99.8 mm (D) x 24.8 mm (H)

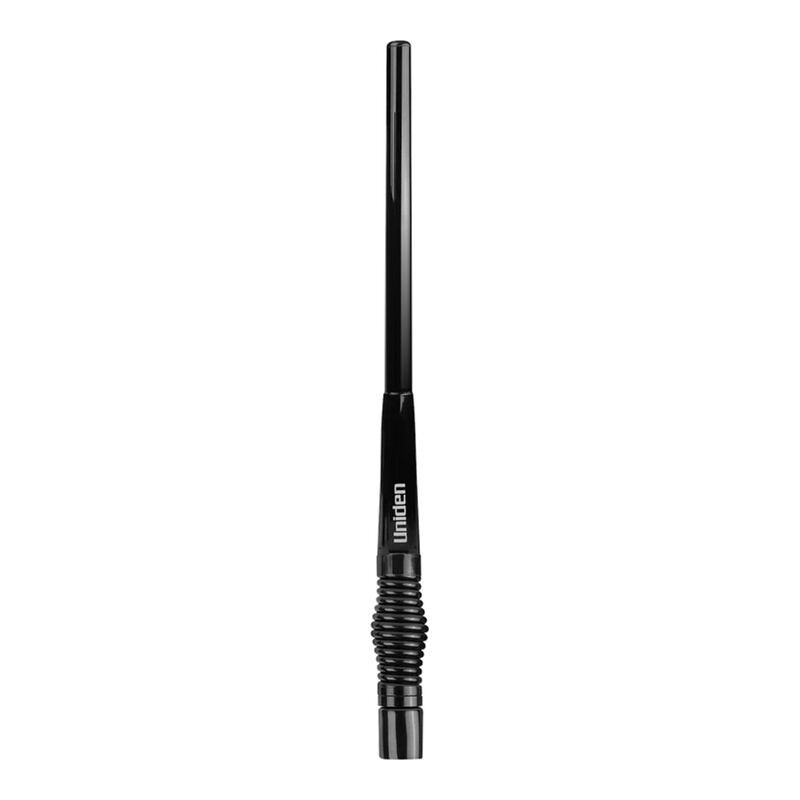

ATX970XS Features

• Heavy duty fibreglass raydome low profile antenna
• High-gloss black finish
• ABS ferrule and heavy duty stainless steel spring
• 3 dBi gain
• Ground independent
• Spring style: 44-55-44 mm barrel with 8 mm thread size
• Mounted height: 560 mm
• 4.5 m low loss coax cable
• Terminated FME female connector and PL259 adaptor

Specifications

XTRAK 80 Specifications

ATX970XS Specifications

What's in the Box

• 1 x XTRAK 80 base unit
• 1 x XTRAK 80 remote microphone
• 1 x Quick release bracket kit
• 1 x Gimbal mounting bracket
• 1 x Magnetic mic mount
• 1 x 2 m mic extension cable
• 1 x DC power lead with fuse
• 1 x ATX970XS antenna with 4.5 m coax cable
• 1 x PL259 adaptor

Warranty

XTRAK 80: 5 years (accessories 1 year); ATX970XS: Not stated by Uniden. Uniden Australia manufacturer warranty.

CH22 & CH23 are used for telemetry and telecommand applications; voice communications are not permitted on these channels and transmission is inhibited. CH61, 62 & 63 are for future use and are receive only channels. Specifications subject to change without notice.
