Uniden X76 BUNDLE - X76 Compact UHF CB Radio + UH825 2W Handheld + AT380 Antenna

The Uniden X76 BUNDLE gives you a complete compact UHF communication setup for the vehicle and on foot: the X76 mini compact in-vehicle UHF CB radio, a UH825 2-watt handheld UHF radio and an AT380 highly flexible 3.0 dBi rubber whip antenna.

The X76 is the ultimate in compact UHF communications, with a trade quality build engineered for rugged Australian and New Zealand conditions, making it ideal for truck drivers, 4WD drivers and caravan owners. Its remote speaker microphone has a built-in oversized backlit LCD screen, allowing flexible control of all functions with one-touch Instant, Call, Mon and EMG buttons. Dual speakers in both the speaker mic and base unit give clear, loud audio in a noisy vehicle, and the 7-colour LCD lets you match your vehicle interior.

The UH825 is a compact 80-channel 2-watt handheld radio built for rugged conditions. It charges via USB-C, offers up to 13 km range and up to 23 hours operating time from its long-life 2000 mAh lithium-ion battery, plus range extender (duplex) capability, Smart Key and Master Scan.

The AT380 is a highly flexible rubber whip with black heat shrink, suited to sedans, agricultural and construction equipment. Ground independent with 4.5 m low loss coax and 3.0 dBi gain, it is rugged, durable and ideal for roof or mirror mounting.

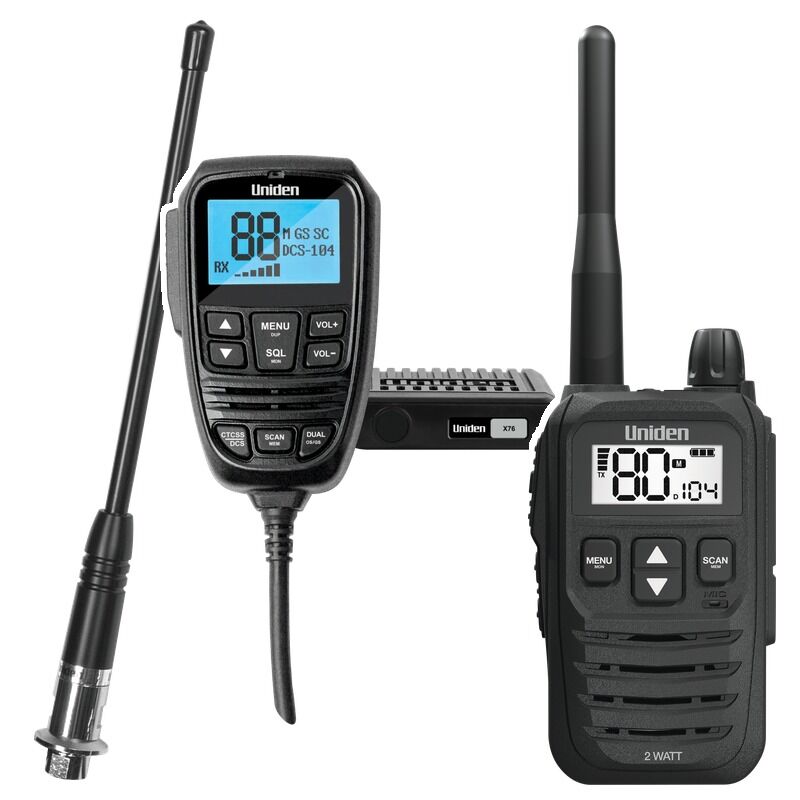

Bundle Includes

• X76 – Mini Compact UHF CB Mobile with Remote Speaker Mic and Large LCD Display
• UH825 – 2 Watt UHF Handheld 2-Way Radio
• AT380 – UHF Antenna - Highly Flexible Rubber Whip with Black Heat Shrink (3.0 dBi Gain)

Features

• X76: mini compact 5 W UHF CB mobile with remote speaker mic and large LCD display
• X76: 80 narrowband channels, 7 colour LCD backlight, dual speakers
• X76: Dual Watch, duplex capability, CTCSS/DCS, quick release bracket
• UH825: 2 W handheld UHF, 80 channels, USB-C charging
• UH825: up to 13 km range and up to 23 hours operating time
• AT380: highly flexible rubber whip with black heat shrink, 3.0 dBi gain
• AT380: ground independent, 4.5 m low loss coax, FME female + PL259 adaptor
•

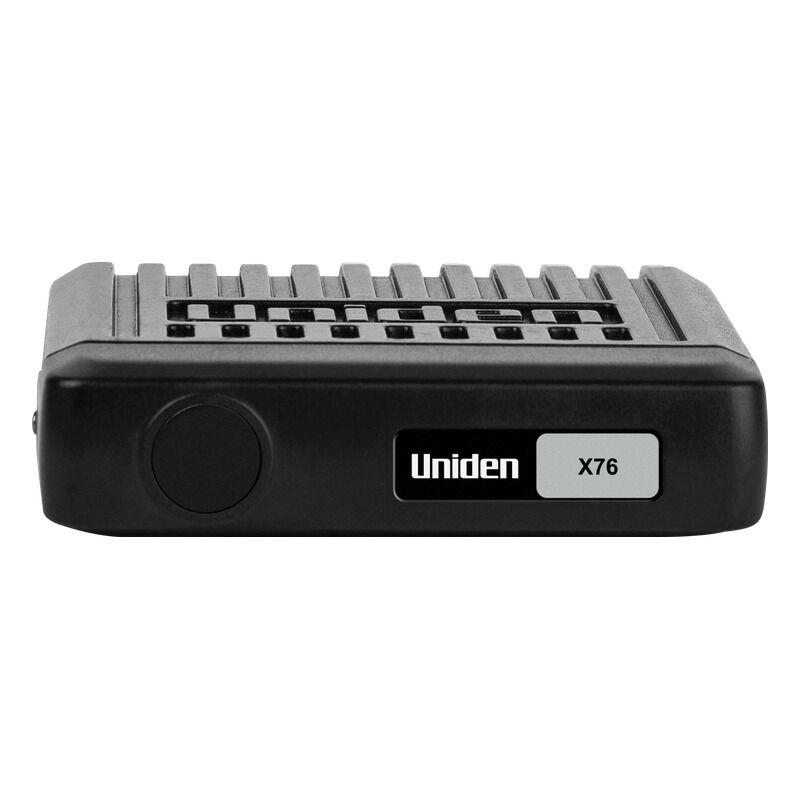

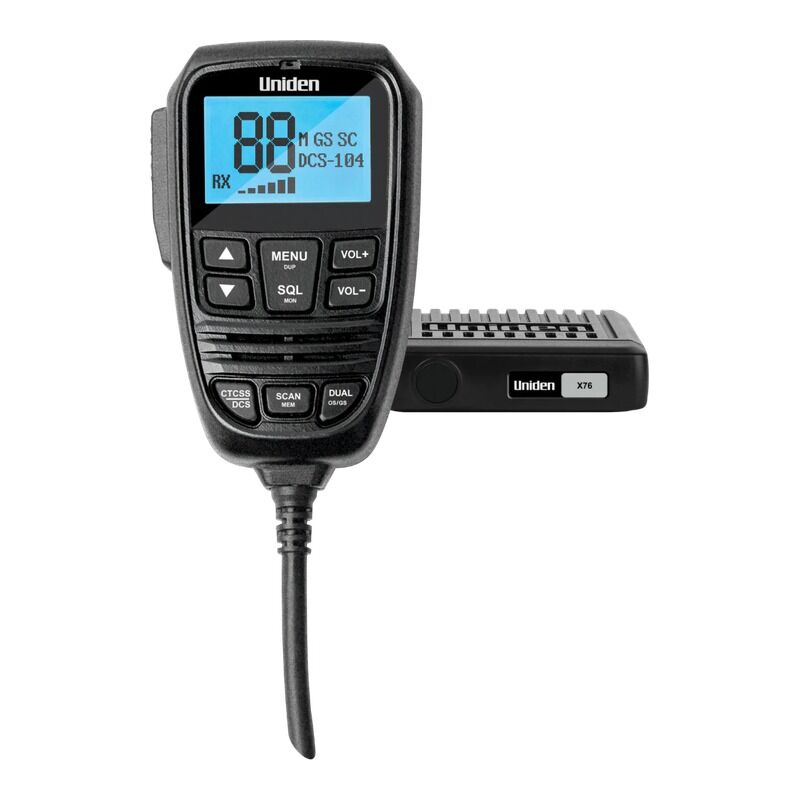

X76 Features

• 80 narrowband channels
• Compact size: 110 mm (W) x 112 mm (D) x 28 mm (H)
• Remote speaker microphone with built-in oversized backlit LCD display
• 5 watt transmission power
• 7 colour LCD backlight options
• LCD brightness control
• Dot matrix display
• Dual speakers with synchronised volume (base and mic)
• Volume keys (base and mic)
• Rotary channel control
• Signal strength and RF power (S/RF) meter
• One-touch emergency channel recall (CH05/CH35)
• One-touch instant channel programming and recall
• One-touch monitor on/off
• One-touch calling tone
• Open / group scan with priority watch
• Dual Watch
• Duplex capabilities (range extender)
• CTCSS/DCS codes
• Adjustable squelch level
• Busy channel lock-out
• Key beep on/off
• Roger beep on/off
• High / low voltage alert
• External speaker jack
• Quick release bracket

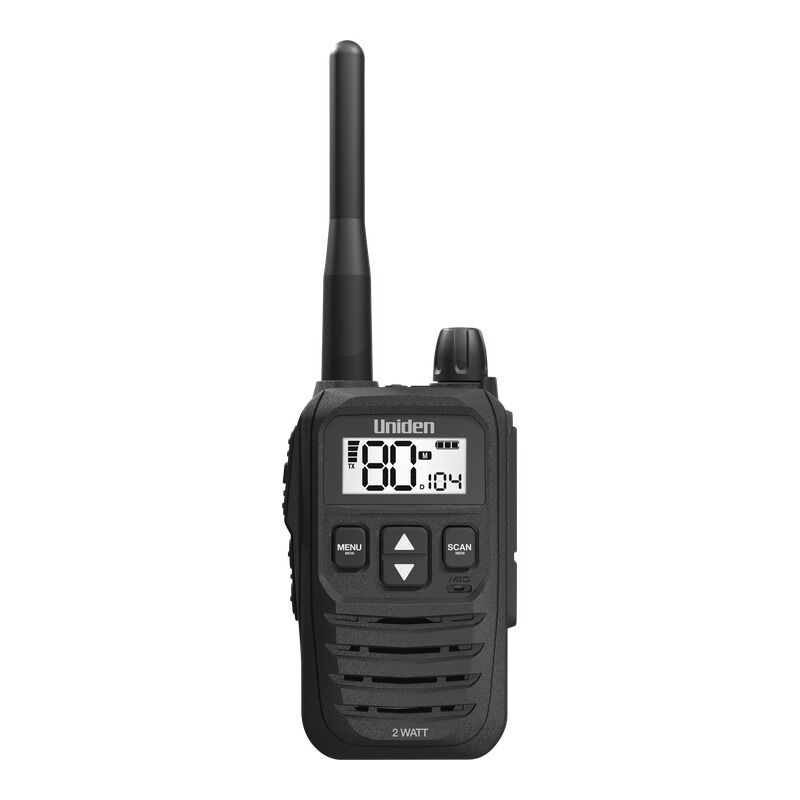

UH825 Features

• 2 watt maximum TX output power (Hi/Lo)
• 80 UHF channels
• USB-C charging
• Up to 23 hours operating time
• Up to 13 km range (typical line of sight)
• Long life 2000 mAh lithium-ion battery
• Master Scan
• Voice enhancer
• Smart key allocation (instant channel, call tone or keypad lock)
• Rapid scan
• Range extender (duplex) capability
• VOX hands-free capable
• Interference eliminator (CTCSS)
• Digital coded squelch (DCS)
• Backlit large LCD display
• Auto battery save
• Open scan
• Group scan
• Battery level indicator
• Busy channel lockout
• Roger beep
• Instant channel programming and recall
• Keypad lock
• 5 call tones
• Designed and engineered in Japan
• Built for rugged Australian and New Zealand conditions

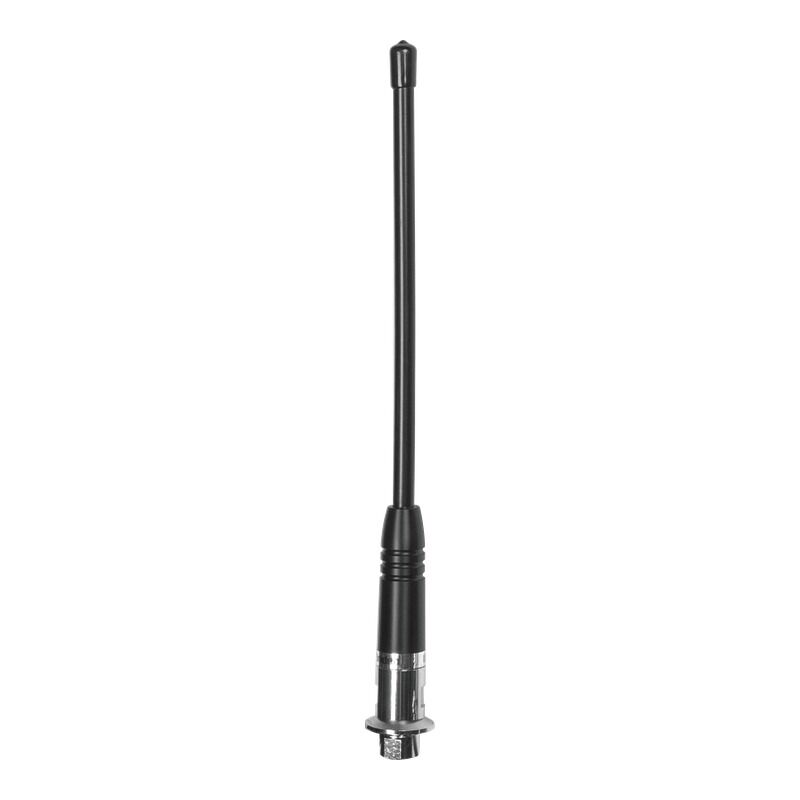

AT380 Features

• Highly flexible rubber whip with black heat shrink
• 3.0 dBi gain
• Ground independent
• Removable
• 4.5 m low loss coax cable
• Terminated FME female connector and PL259 adaptor
• Ideal for roof or mirror mounting
• Suits sedan, agricultural and construction equipment
• Flexible and durable; suited to high terrain and city use

Specifications

X76 Specifications

UH825 Specifications

AT380 Specifications

What's in the Box

• 1 x X76 UHF radio (with remote LCD speaker mic)
• 1 x Quick release mounting bracket
• 1 x Microphone hanger
• 1 x DC power cord with fuse
• 1 x Mounting hardware
• 1 x UH825 UHF radio
• 1 x 2000 mAh lithium-ion rechargeable battery
• 1 x USB-C charge cable
• 1 x Antenna
• 1 x Belt clip
• 1 x AT380 antenna with 4.5 m coax cable
• 1 x PL259 adaptor

Warranty

X76: 5 years (accessories 1 year); UH825: 3 years (accessories 1 year); AT380: Not stated by Uniden. Uniden Australia manufacturer warranty.

CH22 & CH23 are used for telemetry and telecommand applications; voice communications are not permitted on these channels and transmission is inhibited. CH61, 62 & 63 are for future use and are receive only channels. Specifications subject to change without notice.
