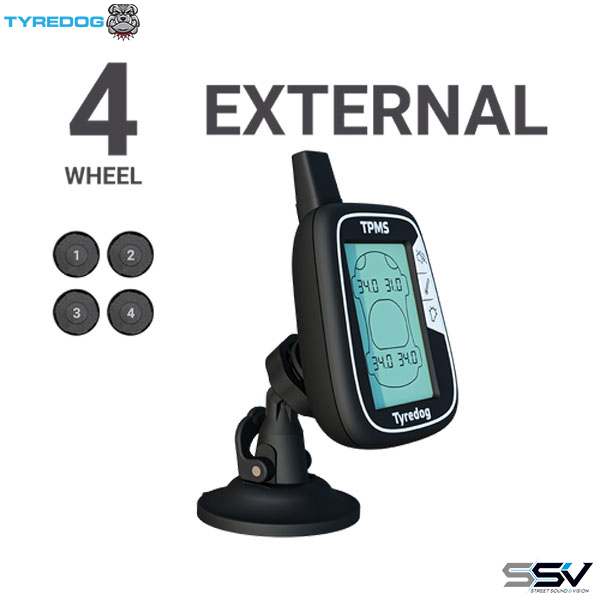

Tyredog TDA-4C TDA-4C Tyre Pressure Monitoring System

Tyredog Car WirelessTyre Pressure Monitor Monitoring System 4WD 4x4 Wheel TPMS

Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

Description

The TYREDOG™ TDA-4C 4 Wheel Tyre Pressure and Temperature monitoring system is a must have gadget for any off-roading or motoring enthusiasts. Stay alerted of any tyre abnormalities immediately, address the issue instantly and save yourself from serious and irreparable damage. The TYREDOG™ system is one of the most highly regarded offroad pieces of equipment that can save you from a trip ruining experience. Have complete confidence in your tyres knowing that you're being guarded by a TYREDOG™. As little as 1 PSI change in pressure will be picked up by the TYREDOG™.

Suitable for: Passenger Vehicles, 4x4, light commercial vans only. This model is not suitable for monitoring Trailers or Caravans. Please checkout Caravan & Trailer section for products suitable for towing applications.

The TDA-4C is our #1 seller for the offroad and touring enthusiast. Thousands of Aussies are protected by the TYREDOG™ Tyre Pressure Monitoring System. Have confidence knowing that the TYREDOG™ is always on guard.

Key Features

External Type Sensors simply screw on to the Valve stem.
Sensors contain a Replaceable 3V CR1632 Battery.
Low Sensor Battery Indicator.
Audible / Visual Alerts when tyre pressure drops below / raises above user set level.
Measure Pressure in PSI, KPA, BAR or KgCM.
Measure Temperature in Celsius or Fahrenheit.
LCD monitor powered by 2 x AAA batteries or Cig. lighter plug.
Monitor between 0 and 80 PSI
D.I.Y. Easy installation.
Anti-theft Secure Fit Rings.
2 YEAR WARRANTY

What’s Included?

1 x LCD Monitor - (inc 2 x AAA Batteries)
1 x 12V Cig Plug for Monitor
4 x Heavy Duty External Sensors (inc 4 x CR1632 Batteries)
4 x SecureFit (Anti-theft) Rings
1 x LCD Mounting Bracket / Suction Cup Mount
1 x Hard Carry Case
Owner’s Manual

Sensor Specifications

Frequency	433.92 Mhz
Pressure Range	0-60 PSI (Reads Accurately up to 80PSI)
Accuracy	Pressure: ± 1 PSI - Temperature: ± 2 Deg °C
Operating Voltage	3V (CR1632 Replaceable Battery)
Operating Temperature	-40 to 125 Deg °C
Operating Humidity	100%
Battery Life	Approx. 12 Months
Dimensions	20.5mm Diameter / 20mm height
Weight	10g (±1) / 13g (±1) inc battery

Monitor / Receiver Specifications

Frequency	433.92 Mhz
Operating Voltage	12V DC (via supplied cig. plug cable) or 2 x AAA batteries
Battery Life	Approx. 12 Months
Operating Temperature	-20 to 70 Deg °C
Dimensions	74mm(W) x 110mm(H) x 23mm(D)
LCD Screen Size	40mm(W) x 60mm(H)
Weight	100 g
