Rockford Fostgate Punch 8" 300-Watt Powered Enclosure

P300-8P

SKU:P3008P

RRP $449.00
$389.00
SAVE $60.00 (13%)



In Stock


Calculate Shipping

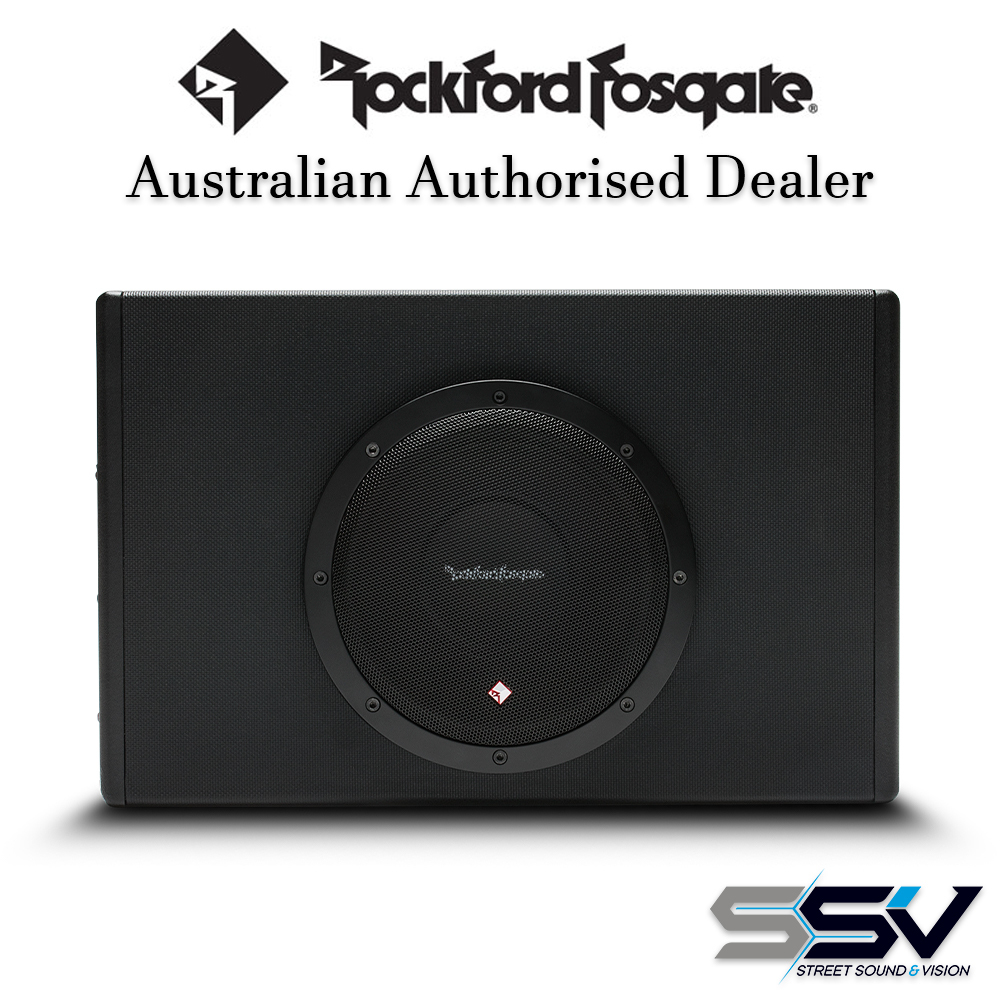

Punch 8" 300-Watt Powered Enclosure

The Punch 300-8P is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 8" high output subwoofer is impedance optimized for the built in 300-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-on/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.



  • High-Efficiency, Low Current Amplifier Design
  • Optimized 8" Low Impedance Woofer
  • 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
  • Adjustable 12db/Octave low pass crossover
  • On Board Phase Switch
  • Intelligent auto turn on/off function
  • Robust Power/Ground connections
  • Quick Input Connections for Easy Removal
  • On Board Adjustable Bass EQ
  • Remote bass level control included
  • Separate low level and speaker level inputs
  • Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
  • Thermal and over/under voltage protection
  • Slim Design For Truck Applications
  • 1 Year Warranty

(P3008P)

CEA-2031 Compliant
CEA-2031 Compliant
Frequency Response
25 Hz to 200 Hz
Woofer Quantity
1
Woofer Size
10"
Woofer Series
Proprietary
Nominal Impedance
—
Power Handling
(Watts RMS)
300 Watts RMS
Enclosure Type
Sealed
Enclosure Material
5/8" MDF (Medium Density Fiberboard
Speaker Connector
—
CEA-2006 Compliant
CEA-2006 Guidelines
Integrated Amplifier
300 Watts RMS
Crossover Controls
Variable 50 Hz to 200 Hz
12dB/Octave Butterworth
Tone Controls
Bass Boost
0 dB to +12 dB;
Phase Control
0° to 180°
Remote Control
Punch Level Control (Included)
Replacement Part: 1510-57864-01
Auto Turn-On Selector
Remote Trigger
DC Offset Sense
Audio Sense
Input Switch
High-Level (Speaker Line)
Low-Level (RCA)
Signal Input
Low/High-Level: 1 RCA Pair (L/R Summed)
Replacement Part: 1560-57865-01
Input Sensitivity
Low-Level: 150 mV to 6 V
High-Level: 300 mV to 12 V
Input Impedance
20k Ohms
Power Input Connector
Quick Disconnect
Replacement Part: 1040-57860-01
Power Wire Gauge
B+/GND: 8 AWG
REM: 18 AWG
Circuit Topology Class
Class-D
Heatsink Type
Extruded Aluminum
Cooling
Convection
Visual Indicators
Power/Protect LED
Fuses
20 Amp (2 x 10 Amp ATO Fuse)
Dimensions
Box H x W x D
Wedge H x W x D1 x D2
13.3" x 21.7" x 4.8" x 7.9"
338 mm x 552 mm x 122 mm x 201 mm
Shipping Weight
25 lbs. (11.3 kg)
