Rockford Fostgate Digital Media Receiver to suit 1998-2013 Harley-Davidson

Rockford Fostgate Digital Media Receiver to suit 1998-2013 Harley-Davidson

SKU:PMX-HD9813

RRP $1,599.00
$1,359.00
SAVE $240.00 (15%)


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $9.95
Shipping with Signature

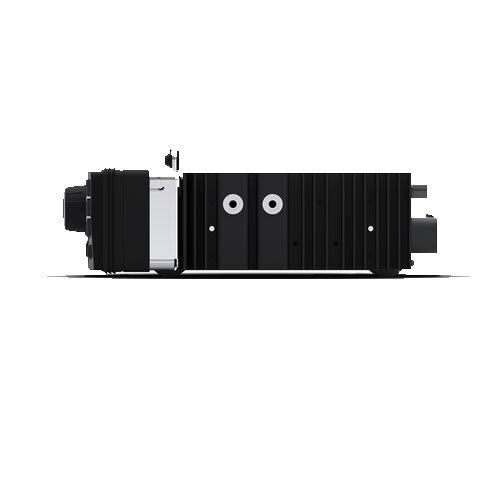

Digital Media Receiver for 1998-2013 Harley-DavidsonPMX-HD9813

Direct replacement digital media receiver for select 1998 - 2013 Harley-Davidson® motorcycles.  Features 3-inch full color, ultra-bright display with day/night modes and oversized buttons for easy control.  Engineered for the ultimate in performance and sound quality featuring 4-Volt pre-amp outputs that don't clip! Plug and play installation with OEM electrical system requires no additional wiring or cutting of existing factory harnesses or components.  Retains factory thumb controls.

Refer to our COMPATIBILITY chart to verify fitment before purchasing.

Plug and play installation requires factory wiring harness and connectors in order to retain functionality.  Systems requiring rear speaker-line outputs will require additional harness (sold separately.) PMX source unit not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems. Estimated Installation Time: 1 HOUR.



  • 1998-2013 Harley-Davidson® direct replacement Media Receiver
  • A2DP and AVRCP Bluetooth® Wireless Streaming
  • Pandora® Internet Radio Control
  • SiriusXM® Ready (requires SiriusXM® SXV300 tuner)
  • Digital AM / FM Tuner
  • USB Input with 1.5A USB Charging
  • AUX Input
  • 3" Full Color TFT Display with Day/Night Mode
  • Retains Factory Handle Bar Audio Controls
  • Voltage gauge with Low voltage Warning
  • 7-Band Graphic EQ + PEQ
  • Plug and Play Installation with OEM electrical connectors
  • Independent Subwoofer Level Control
  • Compatible with PMX-BTUR Remote control
  • Multi Region Radio Frequencies
  • Selectable HP/LP/AP Crossover with Selectable 12/24 dB/Octave Slope
  • Software updatable via USB
  • 2-Year Warranty
  • *Antenna not included

Plug and play installation requires factory wiring harness and connectors in order to retain functionality.  Systems requiring rear speaker-line outputs will require additional harness available in the RFK-HD9813 or separately with the 1130-72997-01.

1 Not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems.




YEAR MAKE MODEL
2006-2013 Harley Davidson® Street Glide®1
1998-2013 Harley Davidson® Road Glide®1
1998-2013 Harley Davidson® Electra Glide®1

(PMX-HD9813)



Operating Voltage

9.5 - 16 VDC

Output Power

CEA-2006 Power Rating
25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω MAX
≤1.0% THD+N

Output Impedance

< 500 Ohms

Idle Current

< 2 Amps

Frequency Response

RCA: 20Hz - 20 kHz
High-Level: 20Hz - 20 kHz

RCA Output Voltage

Front: 4 V Max
Rear: 4 V Max
Sub: 4 V Max

THD+N

4-Ohms: < 1.0 %

Channel Separation

RCA: > 50 dB
High-Level: > 50 dB

Signal-to-Noise Ratio

RCA 2V: > 85 dB
High Level (CEA-2006): > 75 dB
Max Wrms: > 80 dB

AM Tuner

Range: 530 - 1710 kHz
Sensitivity: 40 dB
Frequency Response: 45 to 2.4 kHz

FM Tuner

Range: 87.9 - 107.9 MHz
Sensitivity: 8 dB
Frequency Response: 20 - 15 kHz

Bluetooth®

3.0+EDR
A2DP 1.3

Supported Media Formats

MP3
WMA

USB Version

2.0

USB Output Current

1.5A

USB Capacity

32 Gb max
255 Folders max
999 Songs max
Format Win USB as FAT32
Format Mac USB as MS-DOS (FAT)

Clock

Yes

Display Size:

Nominal Size: 3" Color TFT
Resolution: 960 x 240
Brightness: 380 nits
Contrast: 400
Pixels: 320 x 240
View Angle: 120

Made for iPhone Models

iPhone XS Max
iPhone XR
iPhone 8 Plus
iPhone 7 Plus
iPhone SE
iPhone 6s
iPhone 6
iPhone 5c
iPhone XS
iPhone X
iPhone 8
iPhone 7
iPhone 6s Plus
iPhone 6 Plus
iPhone 5s
iPhone 5

Shipping Weight

4.75 Lbs. (2.15 Kg)

Made for iPod Models

iPod touch (5th generation)
iPod touch (6th generation)
