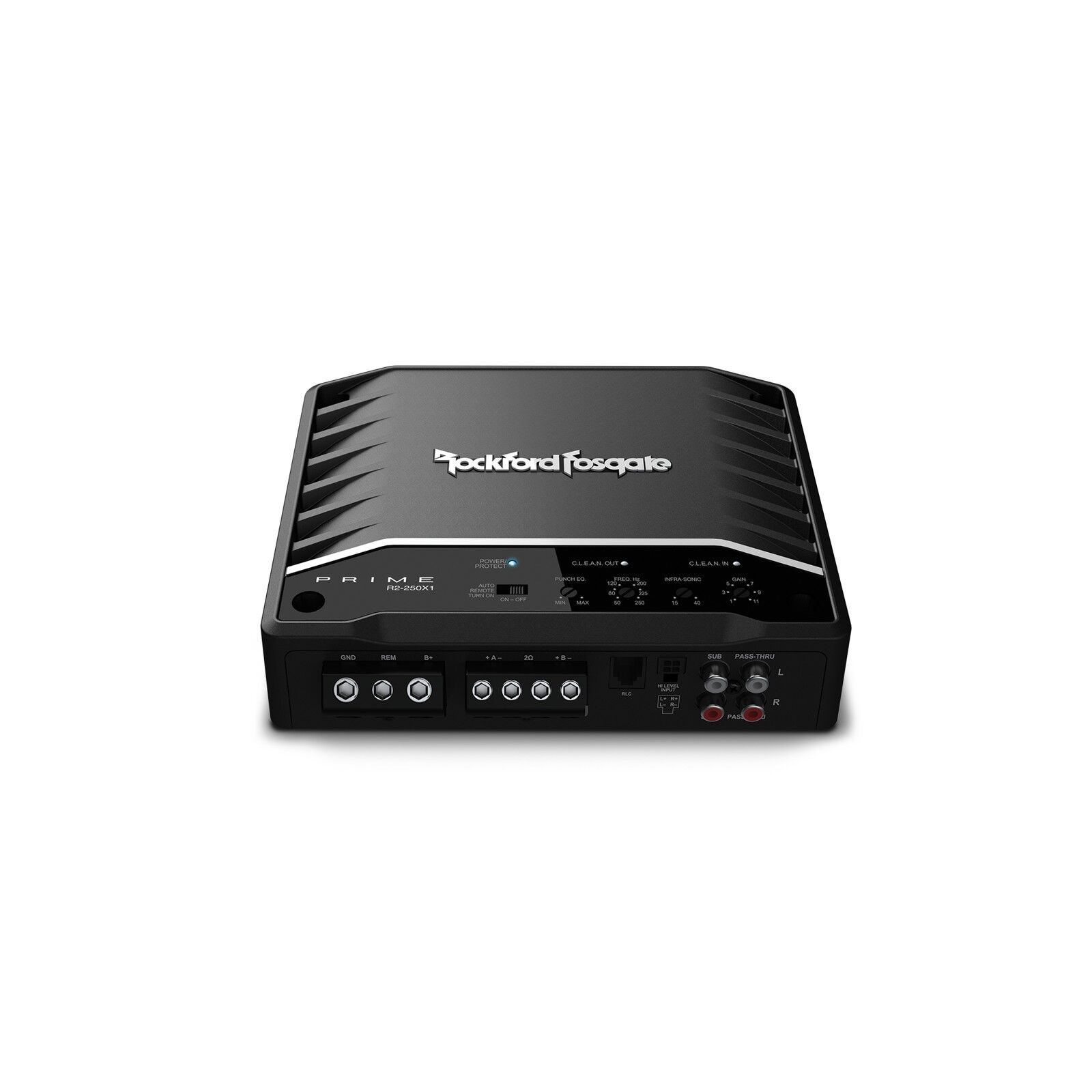

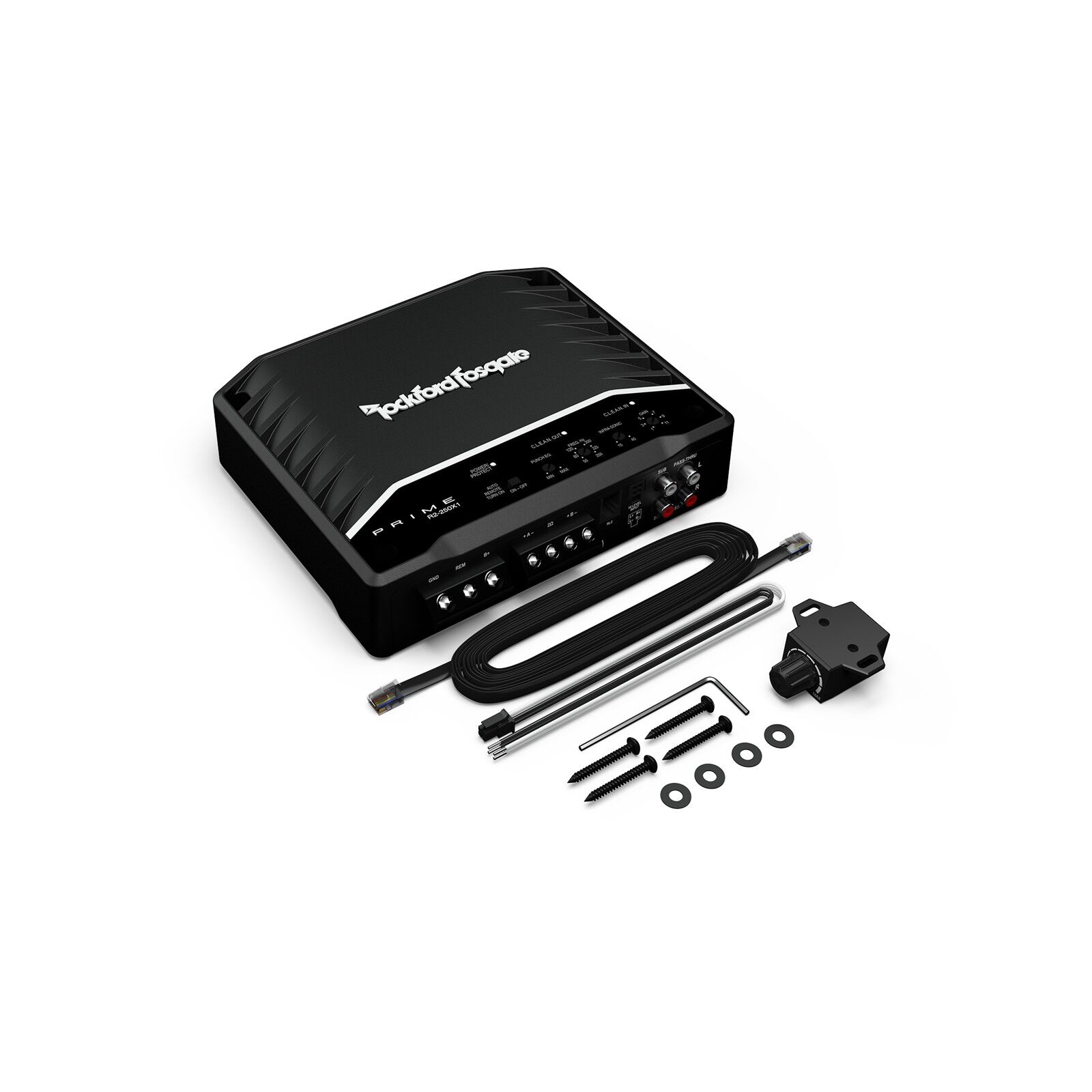

Rockford Fosgate R2-250X1 Prime 250 Watt Mono Amplifier

Rockford Fosgate R2-250X1 Prime 250 Watt Mono Amplifier

SKU:R2-250X1

RRP $409.00
$329.00
SAVE $80.00 (20%)


In Stock
Add To Compare

Calculate Shipping

Rockford Fosgate's R2-250X1 is a 250W, Class-D subwoofer amplifier with C.L.E.A.N. circuitry, P.O.W.E.R. supply, and Punch EQ for efficient, powerful bass.

Overview

The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.

Key Features

  • CEA-2006 Compliant & CE Compliant
  • Class-D Topology
  • Cast aluminum heat sink
  • Features C.L.E.A.N. Set-up
  • Balanced Differential Inputs with RCA Pass Through Outputs
  • High Level Input Capable
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • Variable Input Gain adjustment level
  • Continuously Variable On Board Punch EQ
  • Top Mounted Control Panel
  • Short Circuit & Over Current Protection
  • Rollback Protection
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

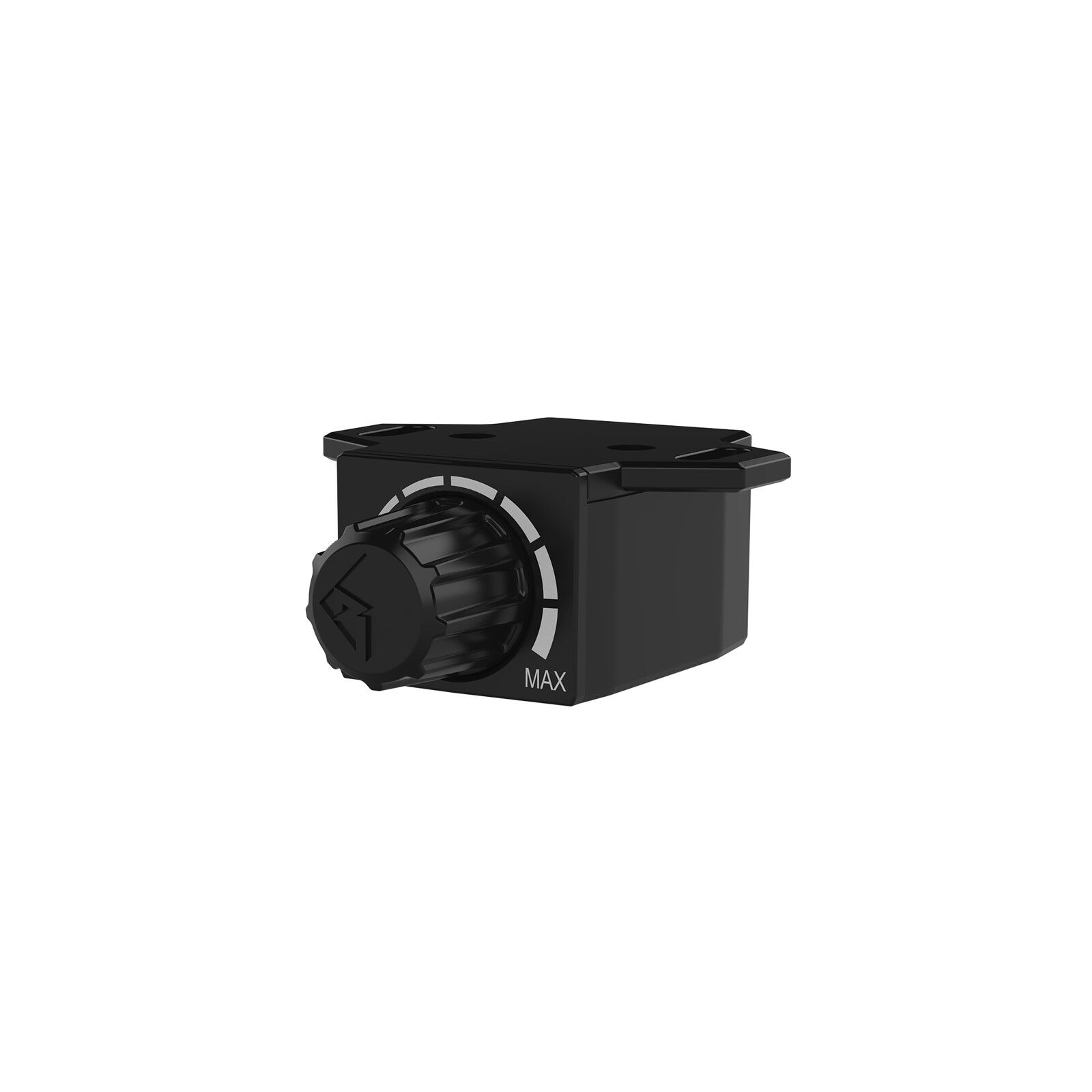

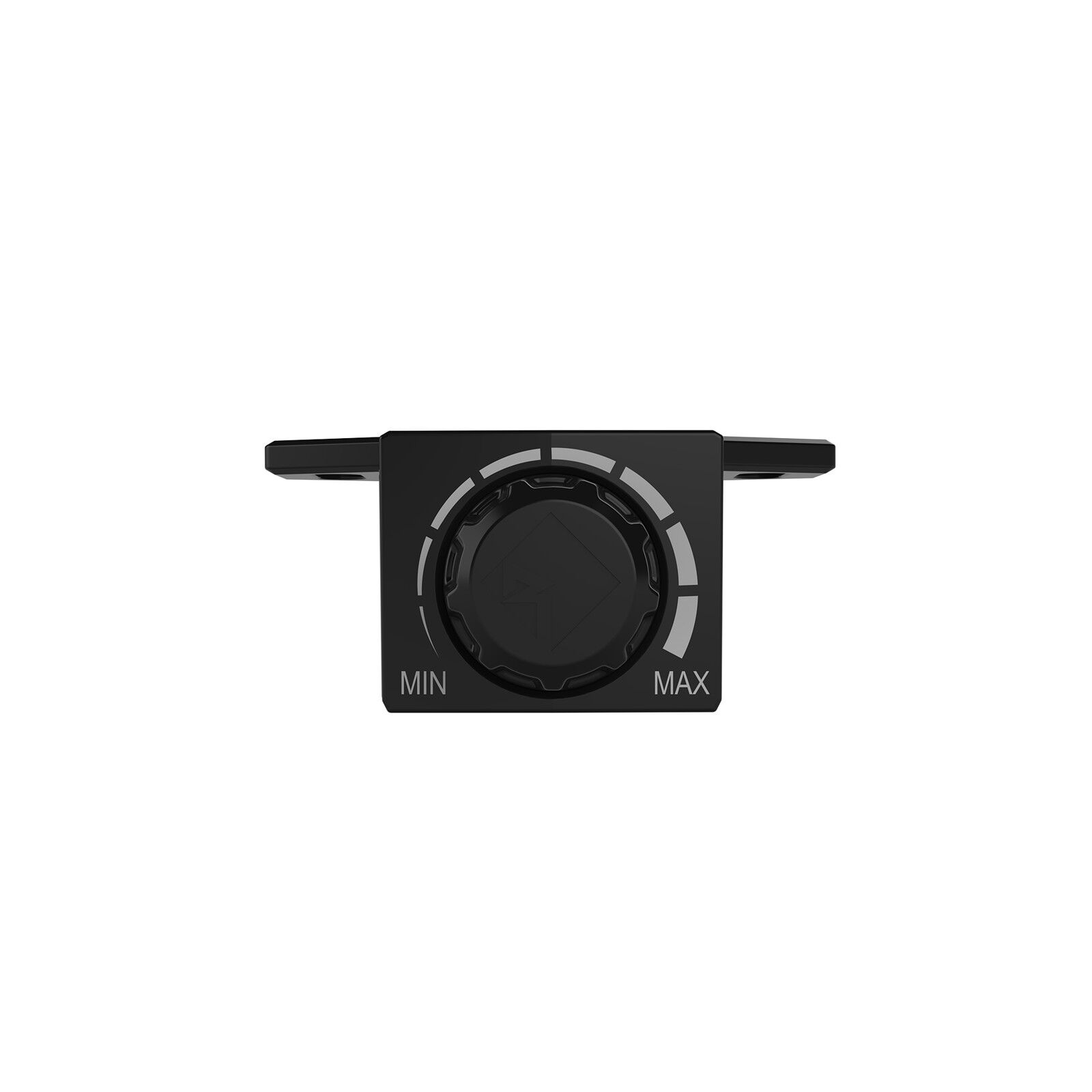

  • Includes RLC Remote Level Control
  • Variable Infrasonic Filter

Warranty

1 year manufacturer's warranty (stated on the Rockford Fosgate product page). In Australia, warranty is handled through the authorised Rockford Fosgate distributor; proof of purchase required.

(R2-250X1)

1 year manufacturer's warranty (stated on the Rockford Fosgate product page). In Australia, warranty is handled through the authorised Rockford Fosgate distributor; proof of purchase required.

  • CEA-2006 Compliant & CE Compliant
  • Class-D Topology
  • Cast aluminum heat sink
  • Features C.L.E.A.N. Set-up
  • Balanced Differential Inputs with RCA Pass Through Outputs
  • High Level Input Capable
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • Variable Input Gain adjustment level
  • Continuously Variable On Board Punch EQ
  • Top Mounted Control Panel
  • Short Circuit & Over Current Protection
  • Rollback Protection
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • Includes RLC Remote Level Control
  • Variable Infrasonic Filter
Model R2-250X1
Number of Channels 1
Total Power (Sum of Rated Power) 250 Watts
Rated Power (RMS Continuous Power) 150 Watts x 1 @ 4Ω / 250 Watts x 1 @ 2Ω
Dynamic Power (PVC/PowerCube®) 209 Watts x 1 @ 4Ω / 328 Watts x 1 @ 2Ω
Bridgeable No
Frequency Response 20 Hz - 250 Hz
Input Sensitivity Low-Level: 150 mV - 4 V / High-Level: 450 mV - 12 V
Circuit Topology Class Class-D
Total Harmonic Distortion (THD+Noise) 4Ω: <1.0% / 2Ω: <1.0%

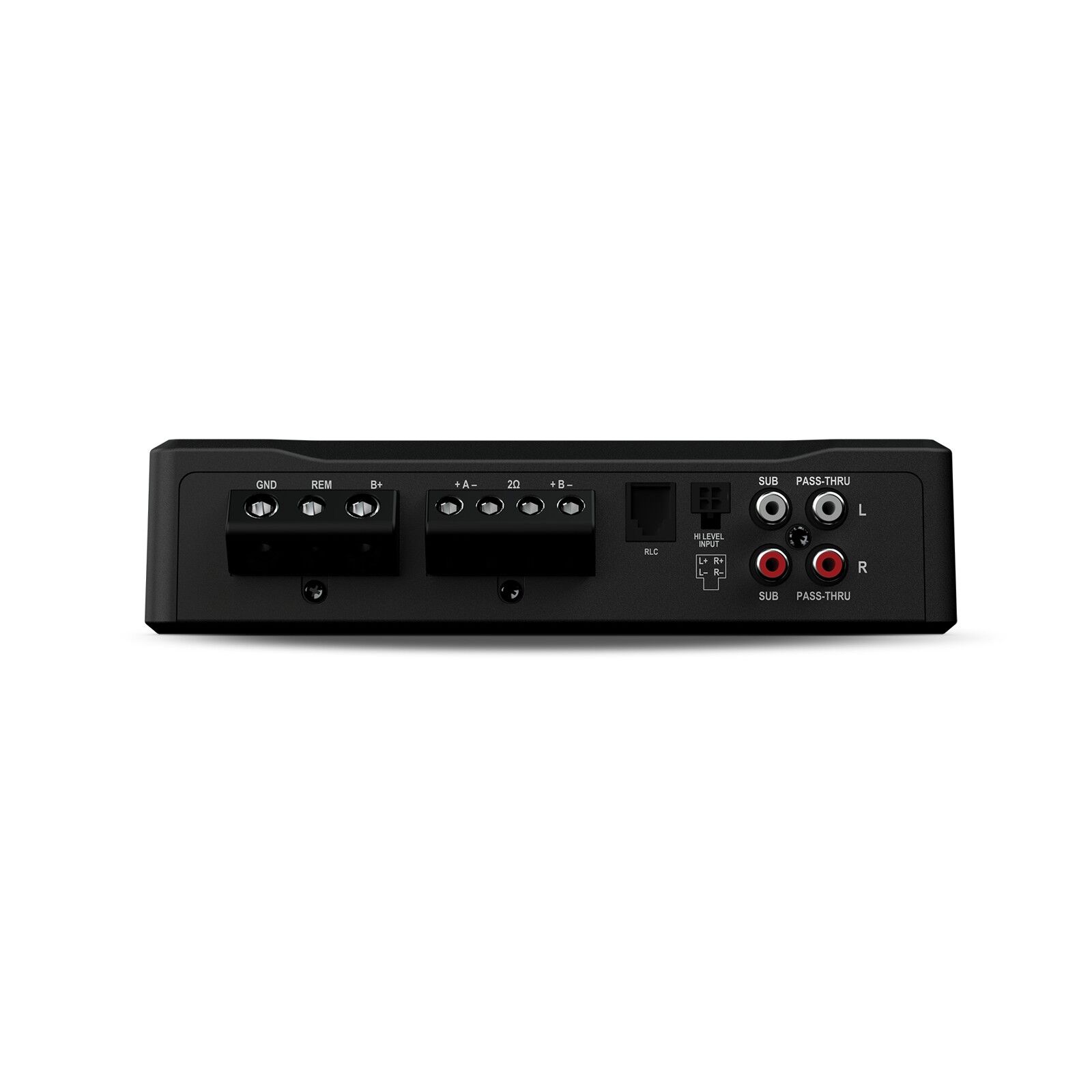

Signal Input Low-Level: 2 RCA / High-Level: 4-Pin Molex
Signal Output Low-Level: 2 RCA / (Pass-Thru active with RCA or Hi-Level input)
Tone Controls 0 to +18 dB @ 45 Hz
Crossover Controls Low-Pass: / 50 Hz - 250 Hz @ 12dB/Octave Butterworth / / Infrasonic: / 15 Hz - 40 Hz @ 12dB/Octave Butterworth
Remote Controls Yes
Visual Indicators POWER (Blue) / PROTECT (Red) / C.L.E.A.N. IN (Red) / C.L.E.A.N. OUT (Blue/Red)
Power Wire Gauge 4 AWG
Power Input Connector Compression Terminal Block
Speaker Wire Gauge 8 AWG
Speaker Output Connector Compression Terminal Block
Cooling Convection
Operating Voltage 9 - 16 VDC
Recommended Fuse (not included) 50 A
Max. Current Draw (13.8V Sinewave) 30 V
Dimensions (H x W x D) 1.9" x 6.8" x 8.1" / (4.9 cm x 17.3 cm x 20.5 cm)
