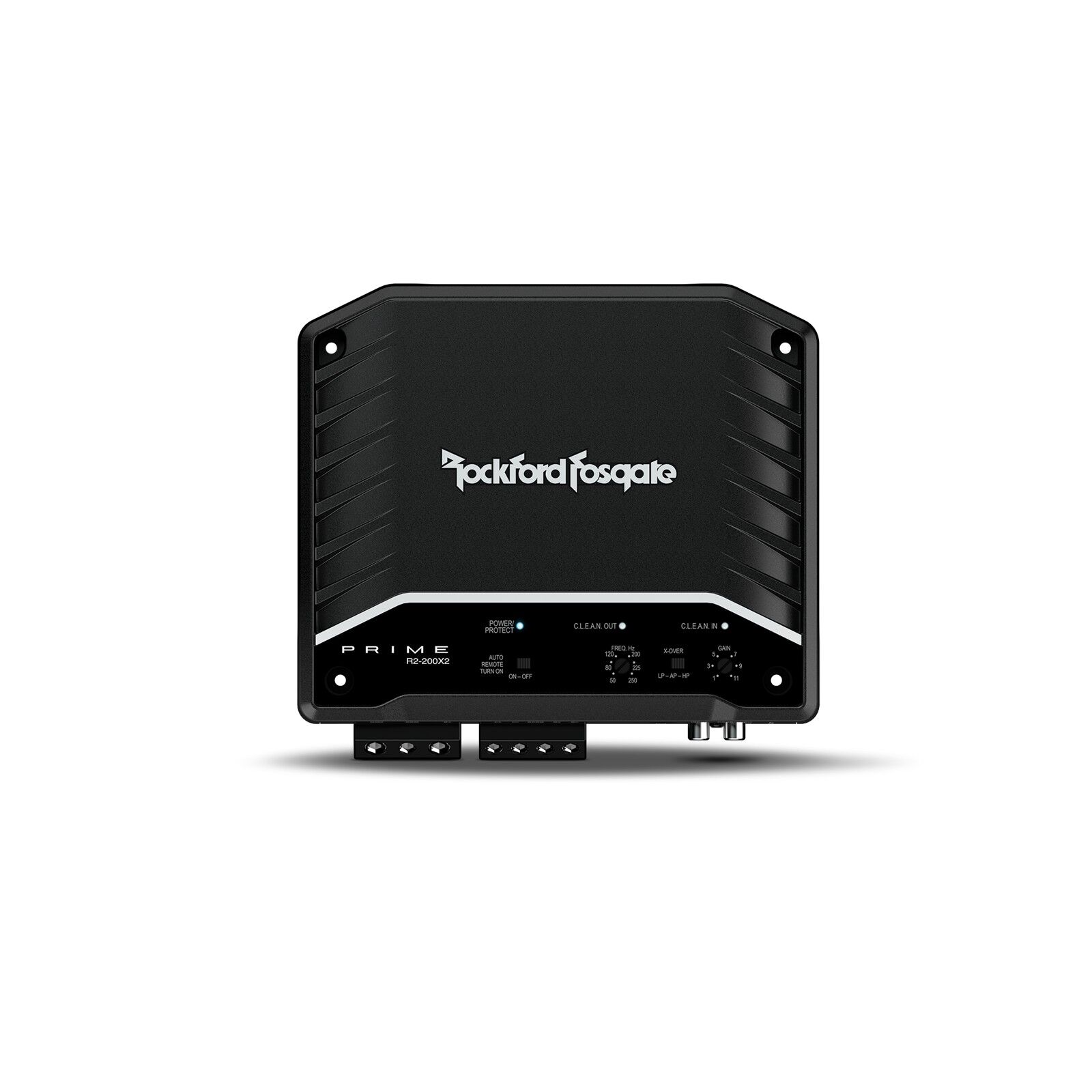

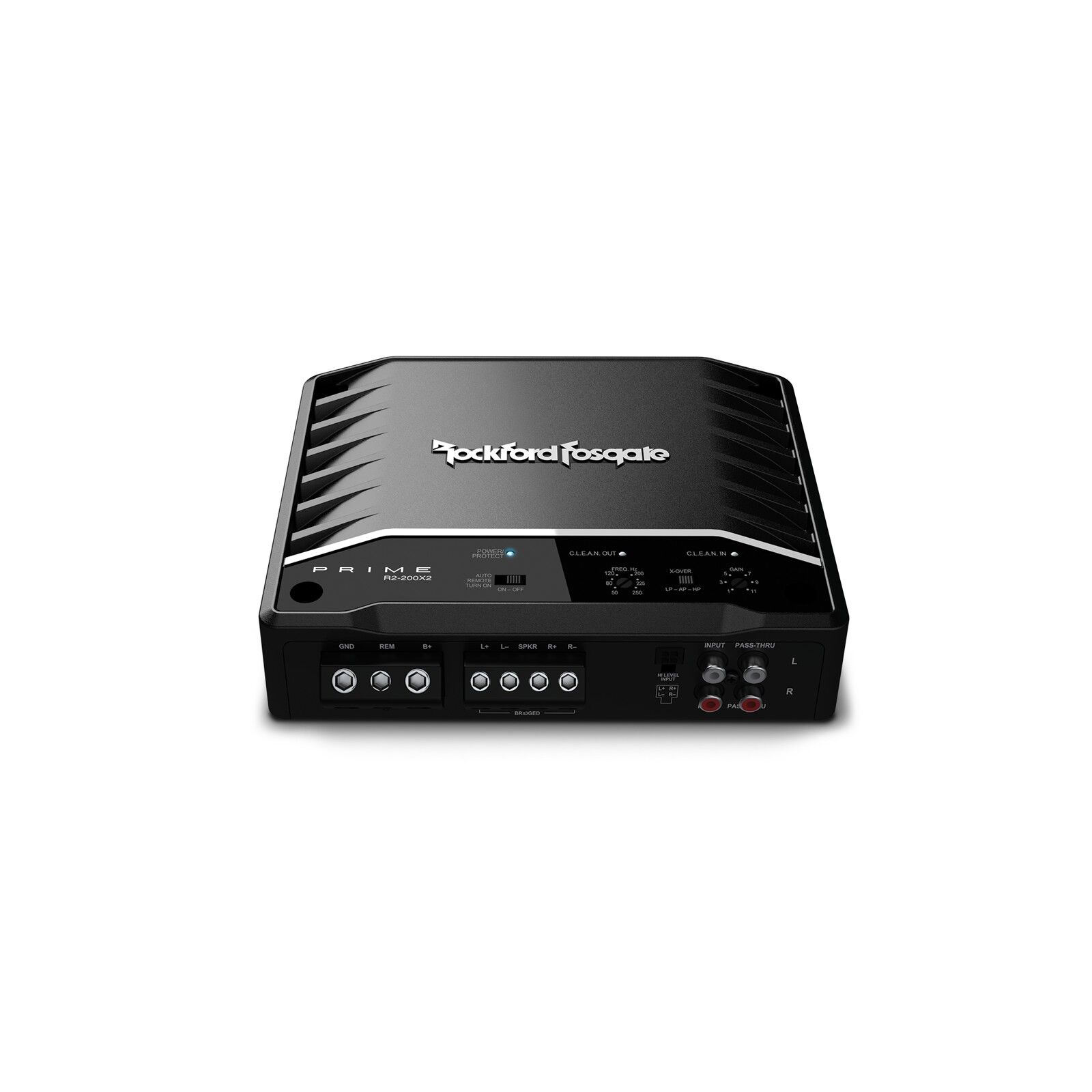

Rockford Fosgate R2-200X2 Prime 200 Watt 2-Channel Amplifier

Rockford Fosgate R2-200X2 Prime 200 Watt 2-Channel Amplifier

SKU:R2-200X2

RRP $409.00
$329.00
SAVE $80.00 (20%)


In Stock
Add To Compare

Calculate Shipping

Rockford Fosgate R2-200X2 is an efficient, powerful 200-watt, full-range Class-D amplifier with C.L.E.A.N. circuitry and P.O.W.E.R. supply for versatile audio.

Overview

The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.

Key Features

  • Full Range Class-D
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • High Level Input Capable
  • CEA-2006 Compliant & CE Compliant
  • Cast aluminum heat sink
  • Features C.L.E.A.N. Set-up
  • Balanced Differential Inputs with RCA Pass Through Outputs
  • Variable Input Gain adjustment level
  • Top Mounted Control Panel
  • Short Circuit & Over Current Protection

Warranty

1 year manufacturer's warranty (stated on the Rockford Fosgate product page). In Australia, warranty is handled through the authorised Rockford Fosgate distributor; proof of purchase required.

(R2-200X2)

1 year manufacturer's warranty (stated on the Rockford Fosgate product page). In Australia, warranty is handled through the authorised Rockford Fosgate distributor; proof of purchase required.

  • Full Range Class-D
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • High Level Input Capable
  • CEA-2006 Compliant & CE Compliant
  • Cast aluminum heat sink
  • Features C.L.E.A.N. Set-up
  • Balanced Differential Inputs with RCA Pass Through Outputs
  • Variable Input Gain adjustment level
  • Top Mounted Control Panel
  • Short Circuit & Over Current Protection
Model R2-200X2
Number of Channels 2
Total Power (Sum of Rated Power) 200 Watts
Rated Power (RMS Continuous Power) 50 Watts x 2 @ 4Ω / 100 Watts x 2 @ 2Ω / 200 Watts x 1 @ 4Ω Bridged/Mono
Dynamic Power (PVC/PowerCube®) 60 Watts x 2 @ 4Ω / 107 Watts x 2 @ 2Ω / 215 Watts x 1 @ 4Ω Bridged/Mono
Bridgeable Yes
Frequency Response 20 Hz - 20 kHz
Input Sensitivity Low-Level: 150 mV - 4 V / High-Level: 450 mV - 12 V
Circuit Topology Class Class-D
Total Harmonic Distortion (THD+Noise) 4Ω: <1.0% / 2Ω: <1.0%

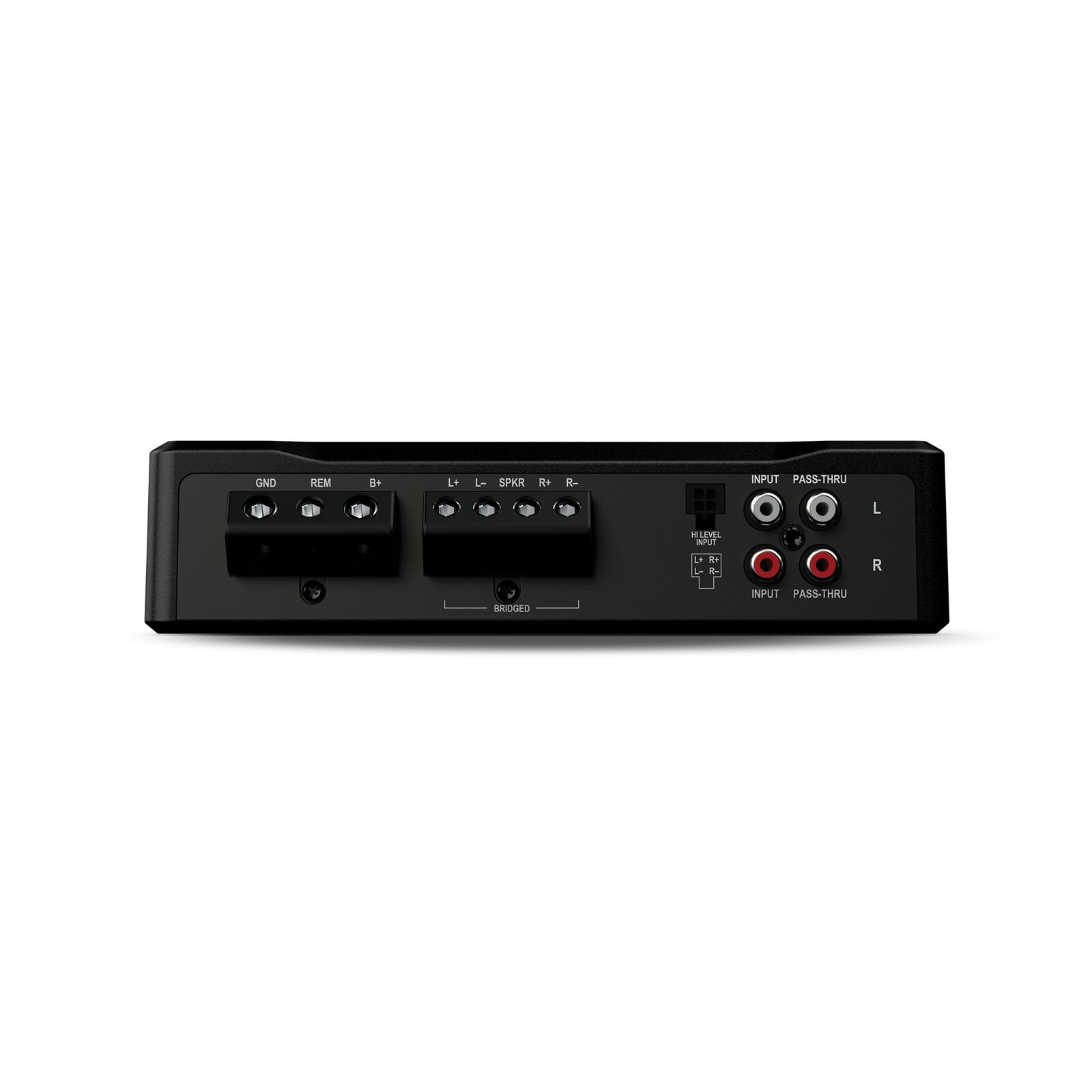

Signal Input Low-Level: 2 RCA / High-Level: 4-Pin Molex /
Signal Output Low-Level: 2 RCA / (Pass-Thru active with RCA or Hi-Level input)
Tone Controls No
Crossover Controls High-Pass: / 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Low-Pass: / 50 Hz - 250 Hz @ 12dB/Octave Butterworth / All-Pass: Yes
Remote Controls No
Visual Indicators POWER (Blue) / PROTECT (Red) / C.L.E.A.N. IN (Red) / C.L.E.A.N. OUT (Blue/Red)
Power Wire Gauge 4 AWG
Power Input Connector Compression Terminal Block
Speaker Wire Gauge 8 AWG
Speaker Output Connector Compression Terminal Block
Cooling Convection
Operating Voltage 9 - 16 VDC
Recommended Fuse (not included) 30 A
Max. Current Draw (13.8V Sinewave) 18 A
Dimensions (H x W x D) 1.9" x 6.8" x 8.1" / (4.9 cm x 17.3 cm x 20.5 cm)
