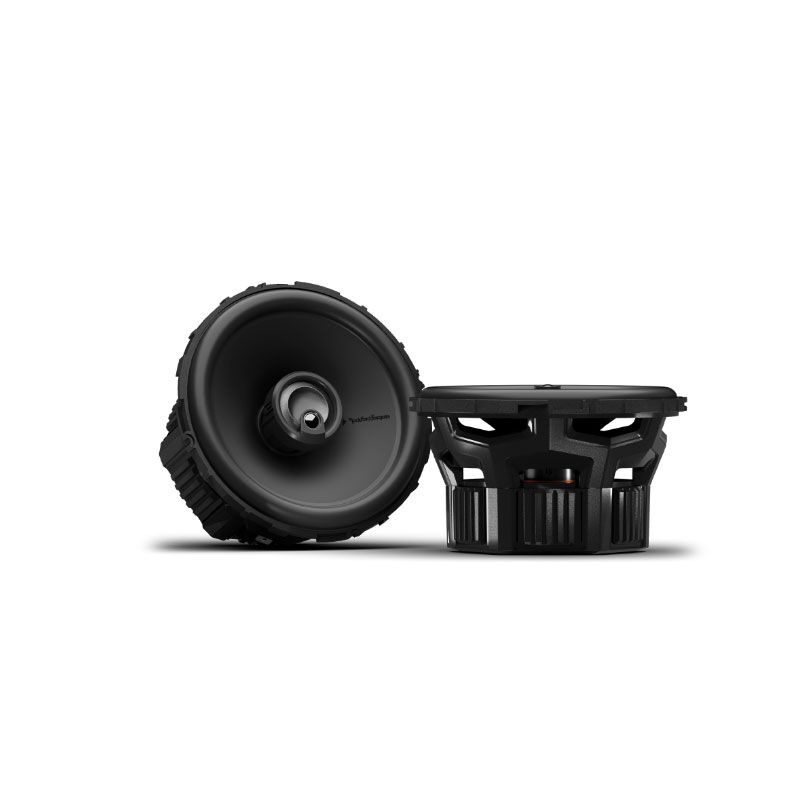

Rockford Fosgate Punch P1 5.25” 3-Way Coaxial Speaker

The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.

Auto Fit Architecture: Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today’s modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.

Superior Flexibility: No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.

Performance Driven: Powered by our advanced VAST 2.0™ technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. The Tru-Sight™ tweeter ensures precise high-frequency alignment, so every note comes through with clarity and accuracy. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.

Built to Last: Every component. Every material. Chosen for strength. Built for the long haul. From reinforced carbon fiber baskets to Santoprene™ surrounds and Nomex® spiders, every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.

CTA-2031 Compliant

Speaker Type

Coaxial

Midrange Size
(Nominal Diameter)

5.25"

Tweeter Size
(Nominal Diameter)

3/4” (19 mm)
Inverted Dome

Piezo Size
(Nominal Diameter)

3/8” (9 mm)
Co-Witnessed Convex

Nominal Impedance
(Ohms)

4Ω

Frequency Response
(Hz)

56Hz - 25kHz

Voice Coil Diameter
(in/mm)

1" (25.4 mm)

Crossover

Tweeter High-Pass: 9kHz @ 6 dB/Octave

Fs (Hz)

75 Hz

Power Handling
(Watts RMS)

75 Watts RMS
150 Watts Peak

Sensitivity
(dB @ 1W/1M)

86 dB

Sensitivity
(2.83V/1M)

89 dB

Cutout Diameter

4.37" (111 mm)

Rear-Loading Depth
(Twist-Lock Adaptor)

2.33" (59.2 mm)

Front-Loading Depth
(Twist-Lock Adaptor)

2.60" (66 mm)

Mounting Depth
(With Motor Cover)

—

Min. Mounting Depth
(No Motor Cover)

2.31" (58.6 mm)

Front Side Clearance

0.44" (11.1 mm)

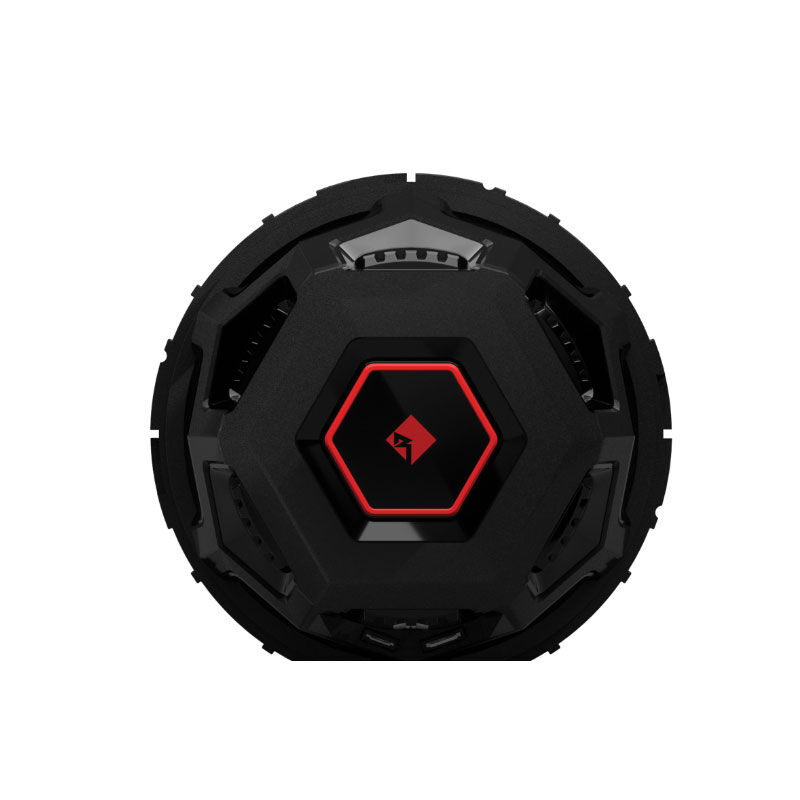

Removable Motor Cover

Yes

Grille/Trim Ring Included

No

Included in the Box

(2) 5.25” 4Ω 3-Way Coaxial Speakers
(1) 5.25” Speaker Cutout Template

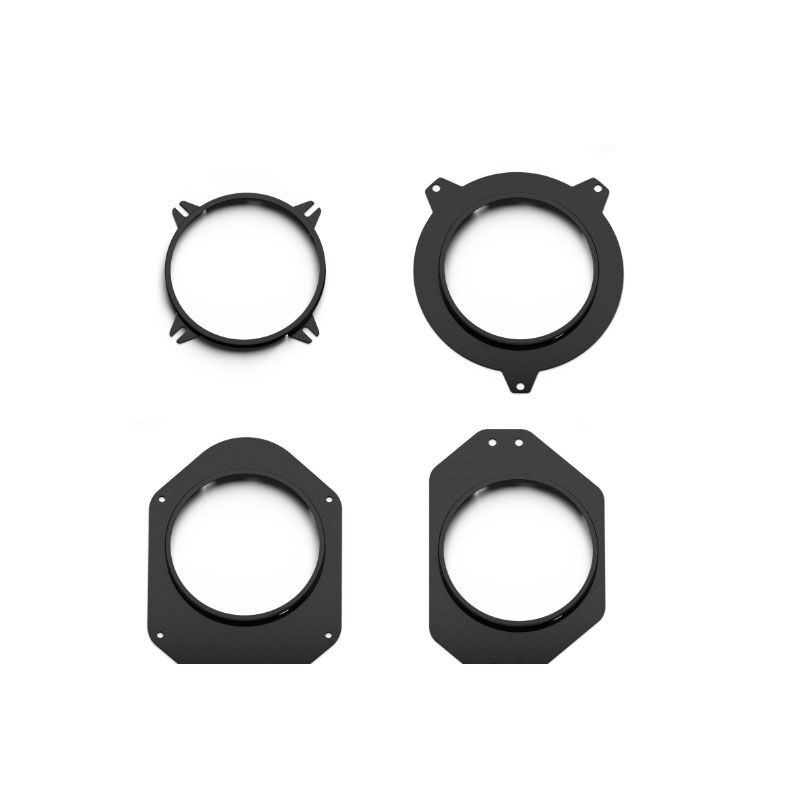

(2) 5.25” 4-Tab Twist-Lock Adaptors
(2) 5.25” to 4x6” Adaptors
(2) 5.25” 3-Tab Wide Adaptors
(2) 5.25” 3-Tab Wide Adaptors
(8) Self-Tapping Phillips #8x32mm (Speaker)
(2) 18 AWG Red/Black Speaker Wire, 205 mm
(3) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(3) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(4) 18 AWG Crimp Butt Connectors

Mounting Hardware

Yes

Shipping Weight

5 Lbs. (2.27 Kg.)
