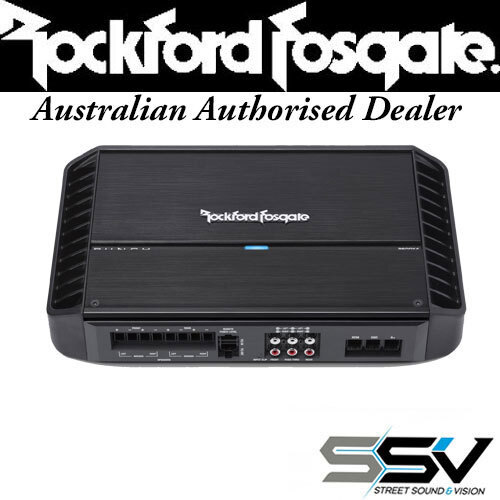

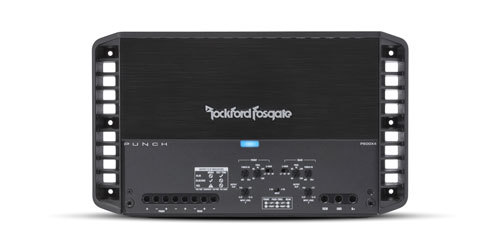

Rockford Fosgate P600X4 400 Watt 4-Channel Amplifier

Rockford Fosgate P600X4 400 Watt 4-Channel Amplifier

SKU:P600X4

$839.00


In Stock

Calculate Shipping

Standard Shipping - $14.95
Shipping with Signature

Punch 600 Watt 4-Channel AmplifierP600X4



The Punch P600X4 is a 4-channel amplifier producing 150 Watts into all four channels at 2-Ohm. The P600X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels.

The Punch P600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.



  • High level input capable with Auto Turn-On circuit
  • RCA pass-thru outputs
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • 1 Year Warranty





(P600X4)

CEA-2006 Compliant
CEA-2006 Power Rating
50W x 4 @ 4Ω
≤1.0% THD+N
Number of Channels
4
Total Power
(Sum of Rated Power)
400 Watts
Rated Power
(RMS Continuous Power)
50 Watts x 4 @ 4-Ohm
100 Watts x 4 @ 2-Ohm
200 Watts x 2 @ 4-Ohm Bridged
Dynamic Power
(PVC/PowerCube®)
82 Watts x 4 @ 4-Ohm
137 Watts x 4 @ 2-Ohm
266 Watts x 2 @ 4-Ohm Bridged
Bridgeable
Yes
Frequency Response
20Hz to 20kHz +/- 1.0dB
Input Sensitivity
150 mV - 12 V
Circuit Topology Class
Class A/B
Efficiency (average)
67% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
Signal Input
Hi/Low level: 2 RCA pair
Signal Output
-
Tone Controls
Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Front Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Rear Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
Function depends upon LP/AP/HP switch position
Crossover Controls
Front High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth
Rear High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth
All-Pass: Yes
Remote Controls
-
Visual Indicators
Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge
8 AWG to 4 AWG
Power Input Connector
Captive C-Clamp
Speaker Wire Gauge
8 AWG to 18 AWG
Speaker Output Connector
Captive C-Clamp
Cooling
Convection
Heatsink

Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
60 A
Average Current Draw (13.8V Music)
30 A
Max. Current Draw (13.8V Sinewave)
60 A
Suggested Alternator
75 A
Dimensional Diagram
Dimensions (H x W x D)
2.38 x 7.76 x 11.03 (in)
6.05 x 19.71 x 28.02 (cm)
Shipping Weight
10.8 Lbs. (4.89 Kg.)
