Rockford Fosgate P1V2-46 Punch P1 4"x6" 3-Way Coaxial Speakers

Rockford Fosgate P1V2-46 Punch P1 4"x6" 3-Way Coaxial Speakers

Professional-grade 4x6 inch 3-way coaxial speaker system delivering 75W RMS power handling with advanced VAST 2.0 technology providing 25% increased cone area for maximum output and deeper, more impactful bass in factory 4x6 speaker locations. The Rockford Fosgate Punch P1V2-46 speakers feature precision-engineered Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and removable motor cover ensuring seamless drop-in integration into modern vehicle factory mounting locations including tight-clearance applications. This comprehensive coaxial speaker system combines 4x6-inch mica-reinforced polypropylene curvilinear cone with 3/4-inch Tetolon inverted dome tweeter featuring Tru-Sight alignment technology and 3/8-inch polypropylene piezo super tweeter delivering full-range frequency response (64Hz-25kHz) with exceptional clarity and impact. Featuring ultra-durable Santoprene half-roll surround, fatigue-resistant Nomex spider construction, 15% glass-fiber reinforced PA66 composite basket, and high-strength Y35 ferrite motor structure (5mm larger than previous generation) with overhung voice coil design, these speakers deliver relentless performance and uncompromising reliability across demanding automotive environments. Complete installation kit includes 4-tab adaptors, bass blocker crossovers, removable motor cover for tight applications, mounting hardware, cutout template, and wiring ensuring professional installation results for factory 4x6 system upgrades requiring enhanced sonic performance without complex modifications.

Product Overview

The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1V2-46 are perfect for Basic OEM systems with 4x6-inch speaker locations in doors or rear decks. Factory single cone drivers don't have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and "punch".

Engineered to Fit Philosophy:

The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.

Auto Fit Architecture:

Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.

Superior Flexibility:

No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.

Features & Benefits

Advanced VAST 2.0 Technology for Maximum Output

Powered by advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area compared to previous generation resulting in maximum output and deeper, more impactful bass from 4x6-inch driver dimensions. This innovative cone geometry maximizes surface area within factory mounting constraints enabling higher SPL output and enhanced low-frequency extension (down to 64Hz) ensuring dramatic performance improvement over factory single-cone drivers without requiring larger mounting openings or modifications.

Precision 3-Way Coaxial Configuration with Tru-Sight Technology

Comprehensive three-way speaker design combines 4x6-inch mica-reinforced polypropylene curvilinear cone for midrange and bass frequencies, 3/4-inch Tetolon inverted dome tweeter with Tru-Sight alignment technology ensuring precise high-frequency alignment, and 3/8-inch polypropylene piezo super tweeter for enhanced ultra-high frequency response. This tri-axial configuration delivers full-range frequency response (64Hz-25kHz) with exceptional clarity, detail, and impact ensuring every note comes through with accuracy and relentless output across entire musical spectrum.

Relentless Power Handling and Output

Robust power handling specification of 75W RMS and 150W peak enables high-output performance when paired with aftermarket amplification while maintaining exceptional sensitivity (86dB @ 1W/1M, 89dB @ 2.83V/1M) ensuring impressive volume levels even with factory head unit power. The overhung voice coil design ensures consistent magnetic flux across excursion range reducing distortion while high-strength Y35 ferrite motor structure (5mm larger than previous generation) provides reliable magnetic field strength supporting sustained high-output operation without thermal compression.

Removable Motor Cover for Tight-Clearance Applications

Innovative removable motor cover design enables installation flexibility in tight-clearance applications reducing mounting depth from 2.02 inches (with cover) to 1.93 inches (without cover). This versatile mounting system accommodates diverse factory mounting locations including door panels and rear deck applications with limited clearance behind mounting surface ensuring successful installation where traditional speakers cannot fit while maintaining full performance capability and protection across all mounting configurations.

Ultra-Durable Construction Built to Last

Every component chosen for strength and built for the long haul. Reinforced 15% glass-fiber PA66 composite basket provides rigid mounting platform resisting resonance and flexing, Santoprene half-roll surround delivers low distortion with unmatched fatigue resistance across temperature extremes, fatigue and tear-resistant linear Nomex spider maintains precise voice coil alignment, ultra-flexible braided tinsel leads securely stitched to spider prevent failure, and co-molded surround/cone body with chemical bonding ensures high durability eliminating separation failures common with adhesive-bonded construction.

Complete Drop-In Installation System

Comprehensive installation kit includes 4-tab adaptors ensuring secure mounting in factory 4x6 locations, external bass blocker crossovers (6dB/octave @ 400Hz) protecting speakers from damaging low frequencies when used without subwoofer, precision cutout template for custom installations, complete mounting hardware including machine nuts, machine screws, and self-tapping screws, pre-terminated speaker wire with spade connectors, and crimp butt connectors enabling professional installation results without requiring specialized tools or fabrication across various vehicle applications.

Technical Specifications

Compatible With

Vehicle Applications:

• Factory Speaker Locations Requiring 4"x6" Dimensions
• Door Panel Speaker Locations
• Rear Deck Speaker Locations
• Factory Systems with Single-Cone Drivers (no tweeters)
• Basic OEM Audio Systems
• Tight-Clearance Applications (removable motor cover)

Ideal Replacement For:

• Factory 4"x6" Full-Range Speakers
• Factory Single-Cone Drivers
• OEM Door Panel 4x6 Speakers
• Factory Rear Deck 4x6 Speakers
• Basic OEM Audio Systems
• Limited-Depth Mounting Locations

Head Unit Compatibility:

• Factory Head Units (50W x 4 typical output)
• Aftermarket Head Units (CEA-2006 compliant)
• Amplified Systems (75W RMS maximum per channel)
• OEM Premium Audio Systems
• Any head unit with 4-ohm speaker output capability

System Configurations:

• Front Door Upgrade (with rear speakers and subwoofer)
• Rear Deck Installation (2-speaker or 4-speaker configurations)
• Full-Range Replacement (all factory speaker locations)
• Component System Supplement (fill speakers)
• Basic System Upgrade (significant improvement over factory single-cone)

Frequently Asked Questions

Q: What is included in the Rockford Fosgate P1V2-46 package?

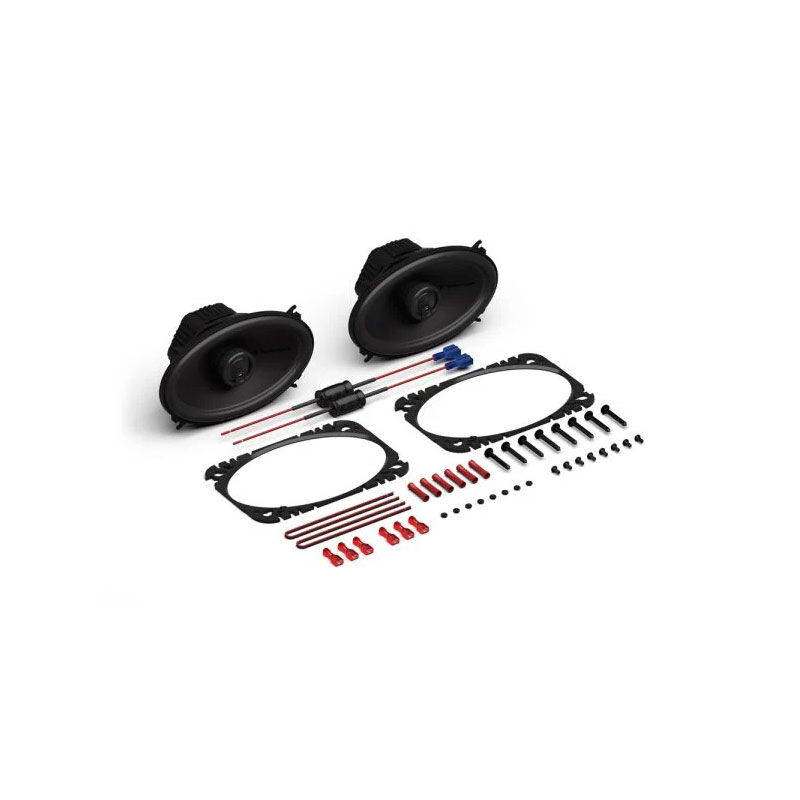

The P1V2-46 package includes (2) 4"x6" 4-ohm 3-way coaxial speakers, (1) speaker cutout template, (2) 4-tab adaptors for factory mounting, (2) 100µF non-polarized bass blocker capacitors, (8) machine nuts M3x0.5, (8) machine screws M3x0.5, (8) self-tapping Phillips mounting screws, (2) 205mm pre-terminated speaker wires with spade connectors, (3) negative female spade connectors, (3) positive female spade connectors, and (4) crimp butt connectors. Grilles are sold separately. This comprehensive kit provides everything needed for professional installation.

Q: Will these speakers fit my factory 4"x6" speaker locations and what is the mounting depth?

Yes, the P1V2-46 speakers feature Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and included 4-tab adaptors ensuring seamless drop-in integration into most factory 4"x6" mounting locations. The cutout diameter is 5.62" x 3.66" (142.7mm x 92.9mm). Mounting depth is 2.02 inches (51.2mm) with motor cover installed, or 1.93 inches (49.1mm) minimum mounting depth with motor cover removed for tight-clearance applications. The removable motor cover provides installation flexibility in limited-depth locations.

Q: Do I need an amplifier to power these speakers or will they work with my factory head unit?

The P1V2-46 speakers work excellent with both factory head units and aftermarket amplification. With sensitivity of 86dB @ 1W/1M (89dB @ 2.83V/1M), these speakers deliver impressive volume levels with typical factory head unit power (50W x 4). For maximum performance, pair with aftermarket amplification up to 75W RMS per channel. The included bass blocker crossovers (400Hz @ 6dB/octave) protect speakers when used without subwoofer, and the 4-ohm impedance ensures compatibility with all factory and aftermarket head units.

Q: What is the removable motor cover and when should I remove it?

The removable motor cover enables installation flexibility in tight-clearance applications. With the motor cover installed, mounting depth is 2.02 inches (51.2mm). Removing the motor cover reduces mounting depth to 1.93 inches (49.1mm) enabling successful installation where limited clearance exists behind mounting surface such as shallow door panels or rear deck locations. The speaker maintains full performance capability and protection with or without motor cover providing versatile mounting options across diverse vehicle applications.

Q: How does VAST 2.0 technology improve performance in 4"x6" speakers?

VAST 2.0 (Vertical Attach Surround Technique) delivers 25% increase in effective cone area compared to traditional speaker designs within the same 4"x6" mounting dimensions. This increased surface area enables higher SPL and enhanced bass response down to 64Hz from the elliptical driver format. Combined with the 3-way coaxial configuration featuring Tru-Sight tweeter alignment, high-strength Y35 ferrite motor (5mm larger than previous generation), and exceptional sensitivity (89dB @ 2.83V/1M), the P1V2-46 delivers dramatic improvements in output, clarity, and bass impact compared to factory single-cone drivers.
