Replacement Mirror with Constant Running Camera To Suit Hilux, 200/300 Series L/Cruiser, Colorado, Triton, Navara

SUPPLIED & FITTED:- $1295

SKU:073AB232_CCDNP_RVE10


In Stock

SUPPLIED & FITTED PRICE $1295

Replacement Mirror with Constant Running Camera To Suit Hilux, 200/300 Series L/Cruiser, Colorado, Triton, Navara

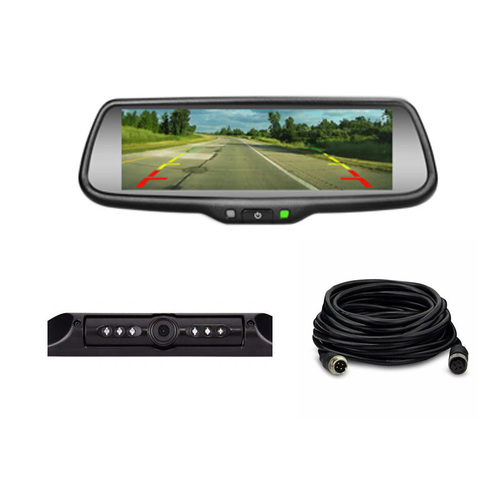

Kit Includes:-

  • Premium OEM Style 7.3″ Replacement Mirror with Auto Brightness and Built in SPEAKER
  • License Plate HD Colour CCD Camera
  • RVE10 4 Pin Extension Cable - 10 Metres
  • Installation

This Premium Mirror designed for CarVision features an embedded A grade 7.3” LCD Display that captures the crystal clear images from the rear view camera and Built in SPEAKER. The 7.3” LCD display automatically comes on once reverse is selected along with the CarVision camera it will capture any blind spots in your path or if towing you can turn on monitor via centre button.

This monitor combined with a premium CARVISION camera can be wired up for constant viewing (on all the time) whilst driving, especially for vehicles towing a Caravan, horse Float or Vehicle with poor visibility with no vision through the rear window due to a large custom Toolbox or Canopy etc.

The CV-073AB2 combined with one of CARVISION Heavy Duty Cameras which has a built in Microphone, not only allows you to see whats behind you, now you can also HEAR via the built in speaker.

The CV-073AB2 comes with 2AV inputs which allows up to 2 Cameras to be connect, which you can select/control via the hidden smart touch frame menu control (LH Bottom Frame) which automatically illuminates/Beeps once touched and hides again after 5 seconds . Also allows you to control adjustment for Volume/Brightness and Built in Guide lines. No need for remotes anymore.

The 2AV inputs are RCA & 4pin Aviation connector. 1AV is with a female RCA plug (no sound) perfect for rear of the car or Blind Spot on Caravan and the 2nd Av is with a male 4PIN aviation connector (SOUND POWER & EARTH) which is perfect for reversing Caravans or Cars.

The CV-073AB2 Monitor has a Auto Brightness Control. Auto Brightness is essential to a rear view mirror. It can sense ambient light and auto adjust the 7.3” LCD monitor to optimum affect . The brightness is different at daytime, dusk and nighttime, so on bright sunny the monitor will adjust to full brightness to eliminate sun glare when reversing.

The CV-073AB3 has Built in Adjustable Park Lines. Regular Park Lines are from the camera which are not accurate enough for the driver. Because some reverse cameras are mounted on the left, right, center or under, some vehicles are sedan, hatch SUV. There is a great difference between fixed park lines and real park lines. Drivers can manually adjust via hidden smart touch frame and get accurate guide lines .

The CarVision mirrors housing is made of High quality Plastic PC+ABC to with stand the Australian conditions compared to others ABS lower grade.

Our Mirror Glass is 4mm thickness which is more secure and strong, compare to others 1.8mm to 3mm.

The Diameter of the Mounting Bracket tube is larger, it has a internal spring for stiffness and adjustability, ball joint end pressed in the back of the housing not screwed in.

FEATURES AND SPECIFICATIONS:

  • Auto brightness 7.3” TFT-LCD monitor.
  • Anti Glare, High Reflective Mirror
  • Resolution:1280*370.
  • Video Inputs: AV1 to VCD/DVD or 2nd camera (default) back up.
  • Power Supply : DC12V.
  • Hidden Smart Touch Frame.
  • Auto Switch when in reverse.
  • Uses Existing Mirror Mount on Windscreen.
  • Signal System:NTSC.
  • Built in Speaker.
  • Adjustable Park Lines Built In.

(073AB232_CCDNP_RVE10)
