Redarc DPS2410 24V 10A In-Vehicle DC Power Supply

24V 10A In-Vehicle DC Power Supply

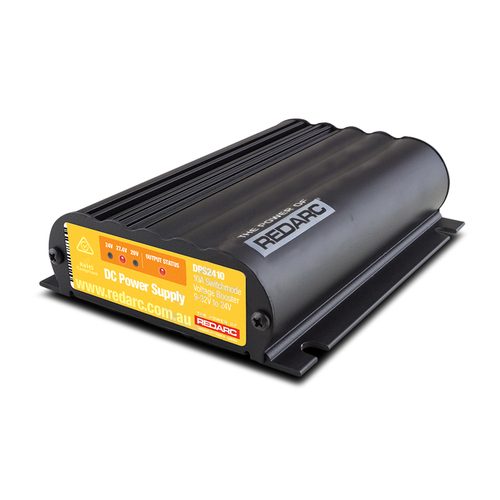

The REDARC DPS2410 is a 24V 10 amp DC Power Supply that provides constant, regulated power for all sensitive load requirements.

The DC Power supply features a wide input voltage range of 9 to 32 volts and selectable voltage output for a number of loads such as lamps, radios, small motors, computer and communications equipment, fridges, pumps and TVs from a 24V automotive power system.

The DC Power Supply generates little electrical noise enabling the unit to power hi-tech radio systems without any interference.

Fully encapsulated in REDARC’s silicone elastomer, the DC Power supply can be mounted externally on the vehicle and can be used in marine applications. The DC Power Supply has in-built protection against spikes/surges and reverse polarity.

Benefits:

• More efficient with regulated output power
• Improved functionality and reduced installation complexity
• Protects against surges/spikes and incorrect connections

Features:

• Fully encapsulated
• Ignition controlled
• No fan for reduced noise
• Highly efficient design
• Wide input voltage range
• User selectable output voltage

Specifications:

• Output System Voltage 24VDC
• Output Current Rating (Cont.) 10A
• Input Fuse Rating 40A
• Output Fuse Rating 40A
• Input (Operating) Voltage 9 - 32VDC
• Length (mm) 150
• Width (mm) 120
• Height (mm) 37
• Weight (kg) 0.68
• Type Approval E and CE
