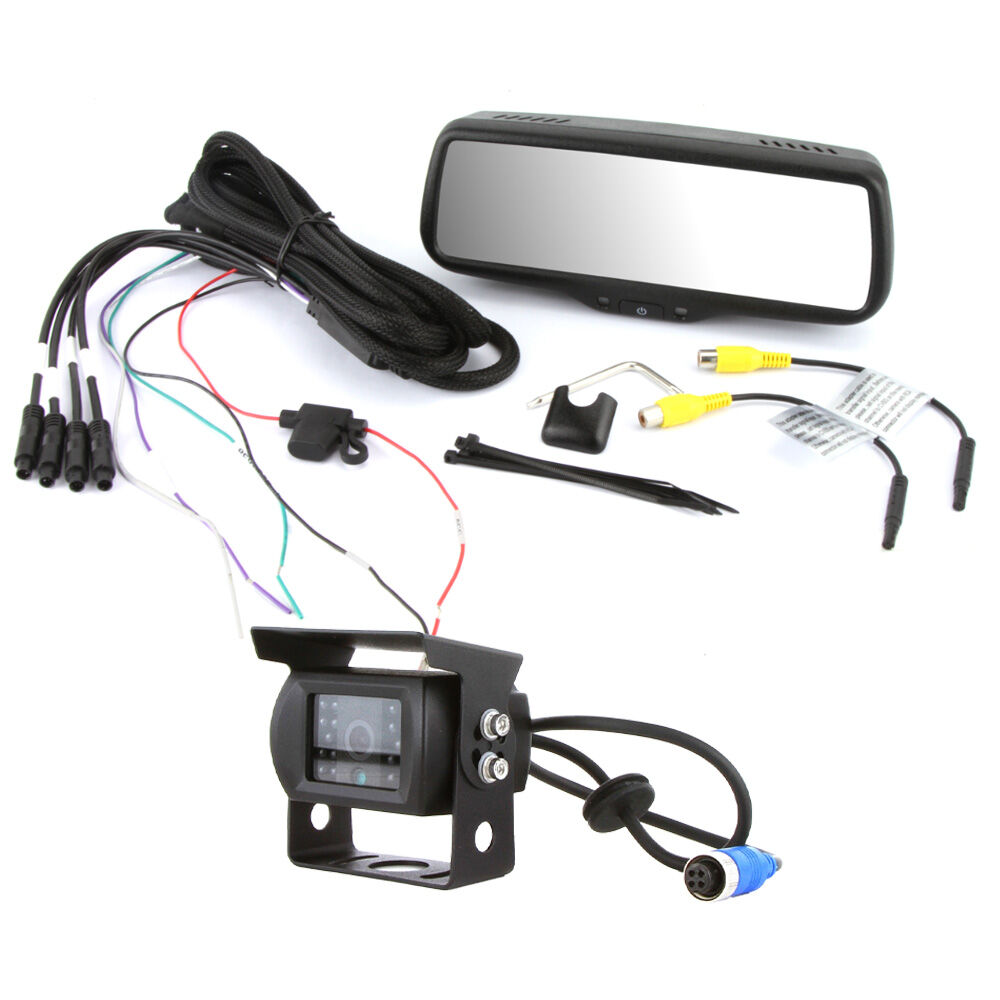

Premium OEM Style 7.9 Inch Replacement Mirror with Auto Brightness Includes AHD Camera

Premium OEM Style 7.9 Inch Replacement Mirror with Auto Brightness

Includes AHD Camera & mirror mount bracket that suits most Toyota, Mitsubishi, Nissan and Holden vehicles

This mirror features a 7.9 inch full screen display that captures the crystal clear images from the rear view camera.
The 7.9 inch full screen automatically comes on once reverse is selected.

This monitor has an auto brightness control feature, which allows it to sense ambient light and auto adjust the monitor to optimum effect.
The brightness is different at daytime, dusk or night time. On a bright sunny day the monitor will adjust to full brightness to eliminate sun glare when reversing.

The mirror/monitor has 4 video inputs which allows you to connect up to 4 cameras to your vehicle, caravan or trailer.
To select the video input, use the hidden smart touchscreen menu controls.  This automatically illuminates once touched and hides again after 10 seconds.

The mirror is designed with the following features to withstand Australian conditions:
4mm Thick glass and a high quality PC + ABS plastic housing.
Large diameter mounting bracket tube with an internal spring for stiffness and adjustability.

Features:

• Mirror with 7.9 inch TFT-LCD full screen
• Illuminated smart touchscreen
• Auto brightness control
• Auto switch when in reverse
• Uses existing mirror mount on vehicle windscreen
• Includes mirror mount bracket that suits most Toyota, Mitsubishi, Nissan and Holden vehicles
• Use reverse mirror touchscreen for parking lines adjustment or turn Off.

Specifications:

• Aspect Ratio: 16 : 9
• Resolution:  1280*370
• Video System: PAL/NTSC/AHD/HD-TVI Selectable
• 4 Video Inputs with 3 Triggers
• Operating Voltage: 12V DC
• Mirror Housing Size:  213mm Wide x 83.8mm High x 49.2mm Deep
• Packaging:  Display box


Heavy Duty AHD Camera - PAL

For use with the RV70PK-AHD rear view screen and camera kit
This all metal waterproof construction AHD camera is ideal for trucks or buses where heavy duty application is required. Operates on 12V vehicles and includes built in IR LEDs for excellent night visibility and microphone for extra safety.

• 1/3 Inch Sony PAL CMOS Image processor
• 140° Horizontal Viewing angle
• Resolution: 1280x720
• IR LEDS: 18 IR Led
• 0.1 LUX illumination (night mode)
• Operating Voltage: 12V
• Sun Visor Included
• Material: Aluminium alloy shell
• S/N ratio: >48db
• Waterproof rating to IP68
• Video output: 1Vp-p 75 ohm composite
• Supplied with 0.6m 4pin water resistant lockable connector
• Dimensions: 86.5mm W x 77mm H x 75mm D

THIS CAMERA Will WORK WITH THE FOLLOWING CABLES:
Woza Cable Kit: RVEW
Extension Cables: RVEW, RVE05, RVE07, RVE10, RVE15, RVE20

Important information:
AHD cameras will not work on non-AHD screens.
Non-AHD cameras will not work with AHD screens.
