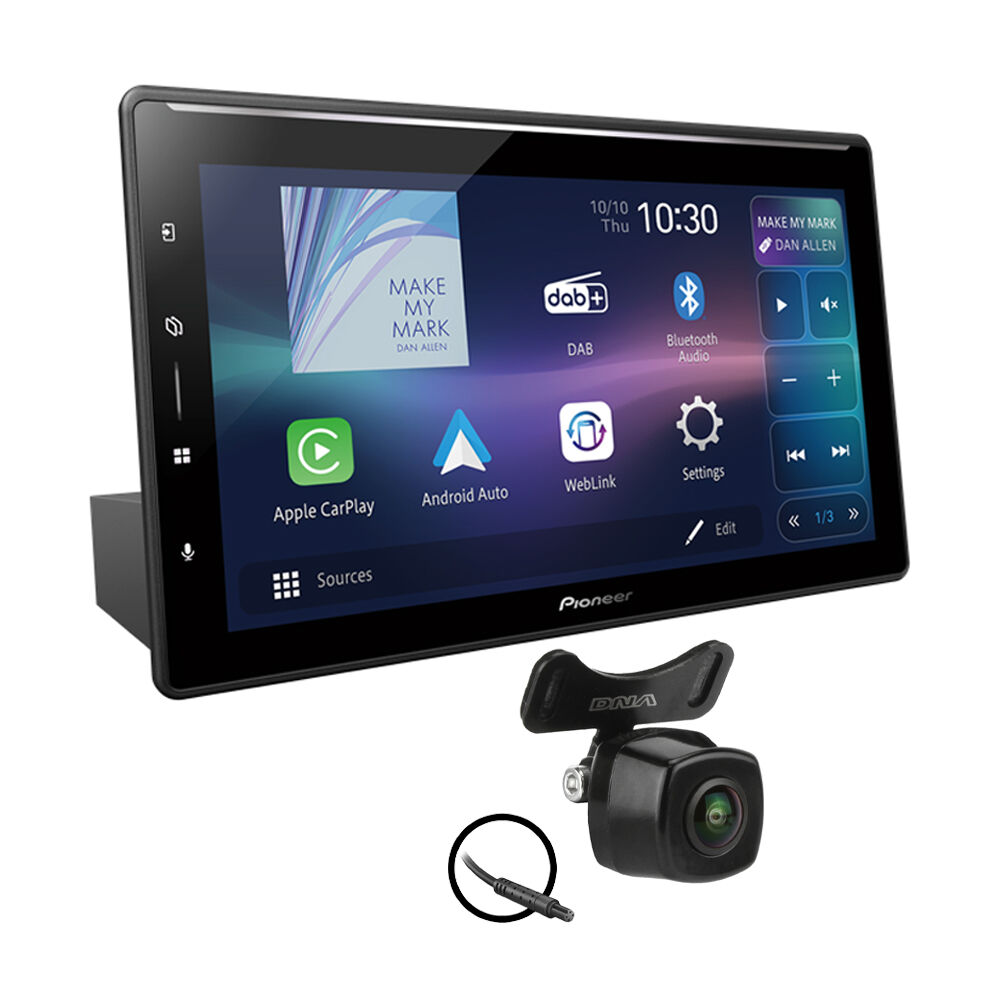

Pioneer SPH-EVO107DAB 10.1" Wireless AV Receiver DAB Maestro with Rear (HD-TVI) Camera

The new evolution of Pioneer AV is here with the Pioneer SPH-EVO107DAB!

This stunning design supports a massive 10.1″ HD (1,280 x 720 pixel) capacitive screen with capacitive keys incorporated, including our new “Direct” key to quickly access the Apple CarPlay or Android Auto GUI. The inclusion of convenient hard keys on top for volume and mute control also helps make life that little easier. Thanks to our highly successful “Floating/Separable” screen design, you have the ability to mount the unit in a wide selection of positions to ensure the perfect look for your vehicle. Also supporting our “Light and Dark” GUI options and new high proximity panel construction, helps to ensure not just the best picture quality but also a wide viewing angle is achieved. The new Pioneer GUI also supports customizable shortcut keys allowing quick access to key functions of the unit.

Our new “Luminous Bar” not only looks great, but can also assist in making your drive a little safer!

It’s not just about looks either! With professional engineering, we closely examined the key audio components to ensure premium sound quality was achieved. Additionally, the inclusion of our “Advanced Sound Retriever” feature ensures improved quality of compressed audio playback.

Supporting a wide selection of entertainment and information services including:

• Apple CarPlay™ (wireless or cable connection) including “Split screen” viewing option

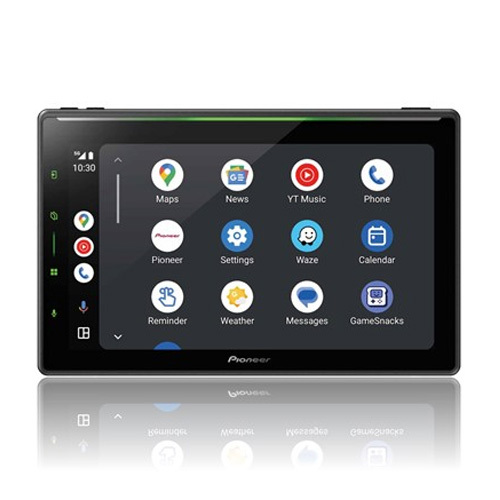

• Android Auto™ (wireless or cable connection)

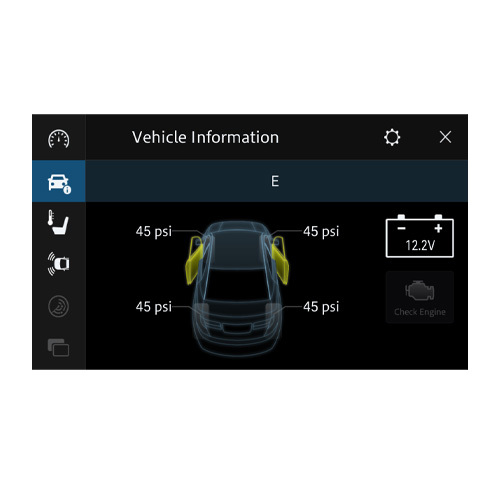

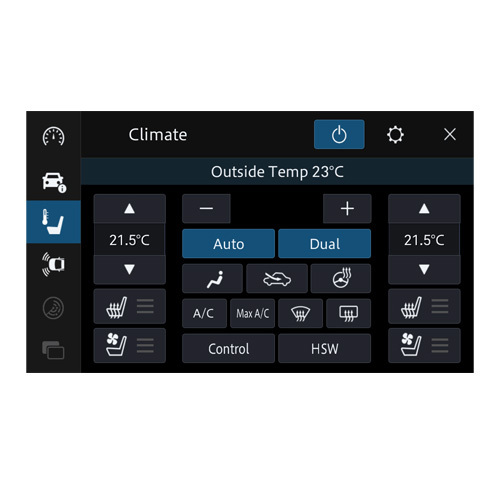

• iDataLink Maestro compatible(*)
• Luminous Bar
• WebLink® 3.0
• WebLink® Cast for compatible iOS and Android™ Handsets
• Spotify(#)
• Full HD video playback from USB***
• Bluetooth (Dual Phone##)
• AM/FM and DAB Tuners and more!

With this much choice you will never want to leave your car!

HD-TVI Reverse Camera Butterfly Mount

This butterfly camera is designed and built robust for 4WD, recreational and trade applications.

Model Strengths:
Heavy Duty Robust Design
Zinc Alloy Housing
Parking Guide Lines*
Mirror Image*

Features:
Includes selectable options: 1080P/720P format, parking guide lines and reverse mirror imaging.
Camera also includes butterfly mount and has a Waterproof IP68 rating.
Ideal for 4WD and or trade vehicles that get knocked about where a tough camera is needed.

Selectable features:
1080p/720p format (Purple wire):  By default is set to 1080P.  (Cut wire to change to 720P)
Image Control (Green wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)
Parking Line (White wire):  By default is set to show parking lines.  (Cut wire to turn off)

Specifications:
Video System:                    HDTVI
Resolution:                         1280(H)*720(V)
Frame Rate:                       30fps
View Angle:                        170°
Working Voltage:               DC6V-15V±0.5V
Waterproof Rating:           IP68
Camera Body Size:            25mm W x 24mm H x 28mm D
Hole Size:                           8mm Diameter
Packaging:                         DNA Gift box with sleeve

Compatible with headunits compatible with HD-TVI format
