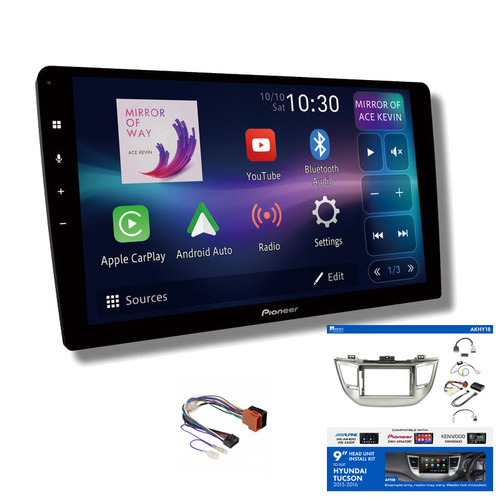

Pioneer DMH-AP6850BT 9" head unit & Aerpro AKHY18 Installation Kit to suit Hyundai tucson 2016-2017

The Ultimate In-Car Entertainment Upgrade with Pioneer DMH-AP6850BT 9 Inch Wireless Carplay Android Auto Head unit with Aerpro AKHY18 9 Inch install kit to suit Hyundai tucson 2016-2017

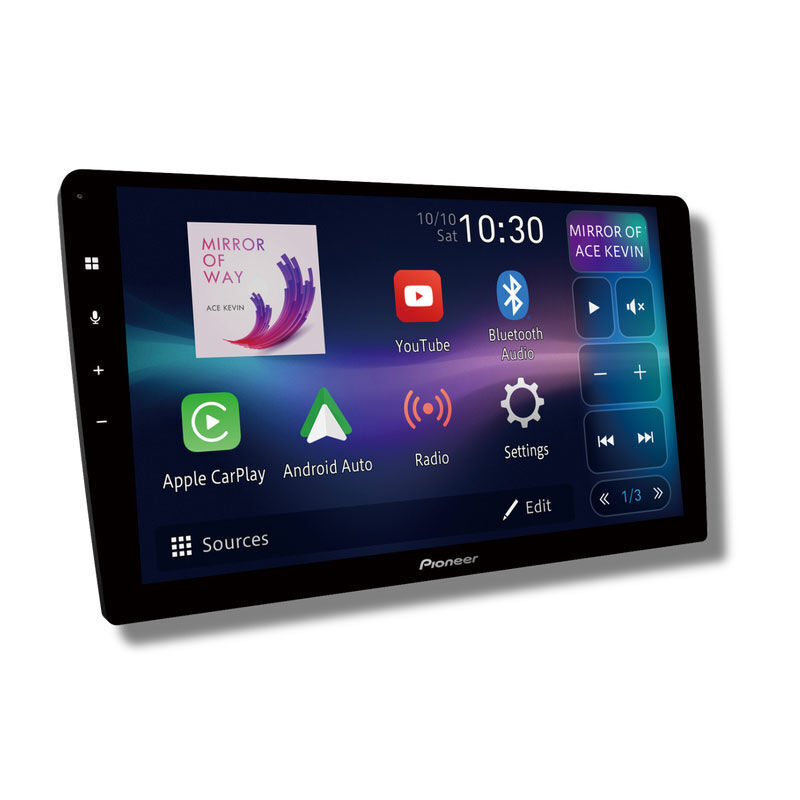

Pioneer DMH-AP6850BT 9-Inch Custom-Fit Wireless Apple CarPlay Android Auto Head Unit

• 9 " W S V G A C a p a c i t i v e D i s p l a y
• A p p l e C a r P l a y ( w i r e d / w i r e l e s s )
• A n d r o i d A u t o ( w i r e d / w i r e l e s s )
• W e b L i n k C a s t ( w i r e d / w i r e l e s s )
• W e b L i n k B r o w s e r f o r A n d r o i d
• F u l l H D P a l y b a c k v i a U S B
• D u a l C a m e r a I n p u t ( A H D 1 . 0 )
• O E M C A N B U S S u p p o r t

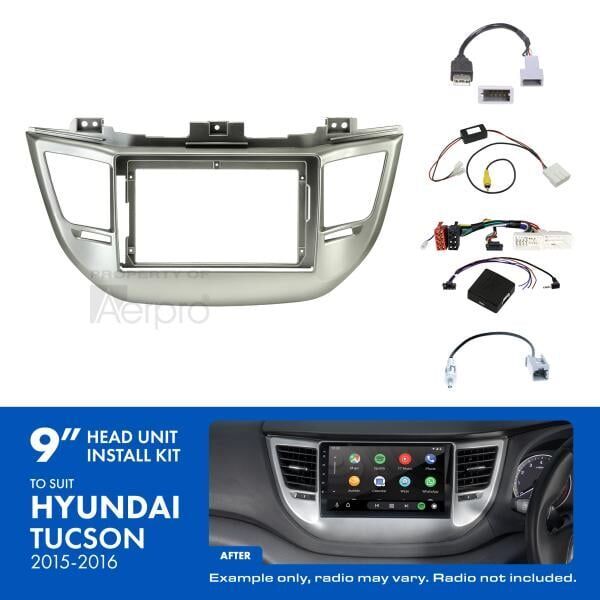

The Aerpro AKHY18 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your Hyundai Tucson 2016-2017 vehicles with factory navigation, whilst maintaining important vehicle features such as Steering Wheel Control functionality.

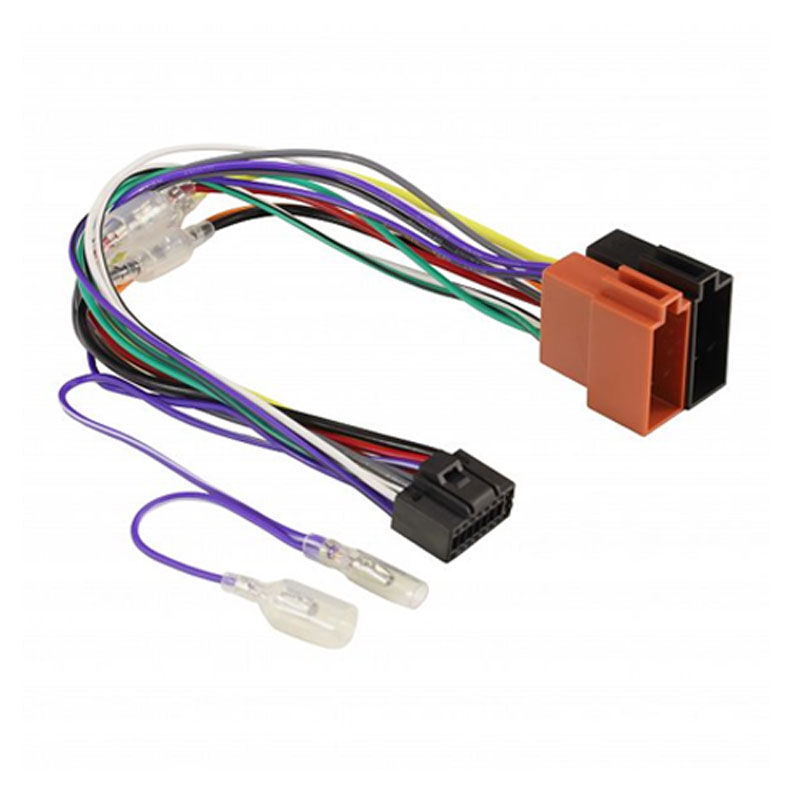

Head unit ISO harness is included in the kit.

Important Information:

• This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS and Aerpro AM9X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

Features

• To suit Hyundai Tucson 2016-2017 vehicles with factory navigation
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs

• Kit Inclusions:
  • Silver Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor
  • Factory USB Retention Harness
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes (including phone button)
  • Factory Reverse Camera: Yes (if equipped)
  • AUX Input: No
  • USB Input: Yes
  • Parking Tones: N/A
  • Factory Amplifier: No
  • Vehicle Menu: No
  • Other: Suits vehicles with factory navigation
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS and Aerpro AM9X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.

Vehicles

• Hyundai Tucson 2015-2018 (Headunit Dependant)
