PAC PACAP4-GM71 AmpPRO Amplifier Integration Interface To Suit Select GM 2020-Up

Overview

The PAC PACAP4-GM71 is an amplifier integration interface for select GM 2020-Up.

Amplifier Integration Interface: The PAC AmpPRO AP4-GM71 simplifies the installation of aftermarket amplifiers in select 2019-2024 GM vehicles with a Bose sound system. With the AmpPRO AP4-GM71, you can improve your vehicle's audio performance while keeping an original radio's fit, finish, and features. The AmpPRO AP4-GM71 is compatible with the GM Super Cruise Feature.

Vehicle Compatibility: The PAC AmpPRO AP4-GM71 can be used in the following 2019-2024 GM vehicles equipped with a factory amplified Bose sound system.

6Ch Pre-Outs: The PAC AmpPRO AP4-GM71 provides a 6-channel pre-amp output for use with aftermarket amplifiers. Using the full-range, fixed level factory radio output, in conjunction with data-bus CAN messages, the AP4-GM71 delivers a variable 5V RMS pre-amp output with fading, balance, equalization, and level control capabilities. Pre-outs include Left/Right Front, Left/Right Rear, and two non-fading (Sub).

Please note: Your vehicle must have a Bose Infotainment system RPO code IOS, IOT, or IOK to be compatible. To verify the "IO" RPO code on your vehicle, check the glove compartment for a silver sticker with these codes. If this sticker is not present, you must scan the QR code on the GM label found in the driver's door jamb. The RPO codes will be listed in alphabetical order in either scenario.

Please note: If running the Subwoofer output to an amplifier requiring 2 channels of input, an RCA "Y" adapter will be required (sold separately).

Please note: These AmpPRO PC App settings can be adjusted with the module installed in the vehicle or on the bench. However, it is recommended to make the adjustments with the module installed, and the factory radio on so that the changes can be heard.

Key Features

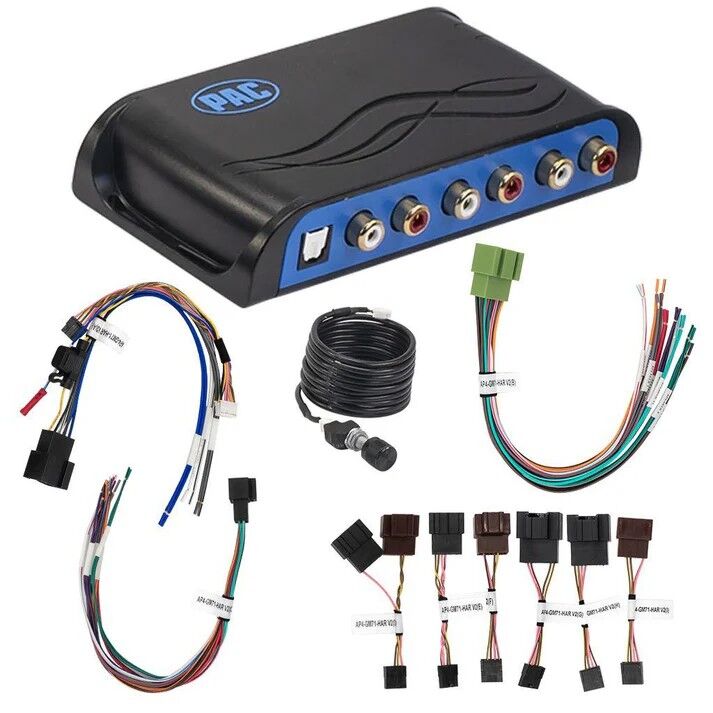

• amplifier integration module and T-harness
• add an aftermarket amplifier
• works with select 2019-up GM vehicles with Bose sound system
• 6-channel RCA outputs (front, rear, subs)
• switchable 5- or 4-volt RMS output
• retains factory radio controls and audio features
• wired remote level control for sub channels
• remote turn-on lead for amplifiers
• AmpPRO PC App, available from PAC, lets you adjust minimum and chime volumes and 3-band EQ via your Windows-run PC
• optical digital output for high-end digital processors and amplifiers
• Minimum Volume Level: From the app you can set the minimum volume level of the factory radio.
• Firmware: The AmpPRO app will also allow you to update the interface with new firmware as it becomes available.

What's Included

• 1 x PAC PACAP4-GM71 amplifier integration interface

Specifications

Warranty

Covered against manufacturing defects by the Australian distributor's warranty, in addition to your rights under Australian Consumer Law. Contact Street Sound & Vision for warranty support.
