Musway D1S Micro 4ch Amplifier with 6ch DSP & BT

Musway D1S Micro 4ch Amplifier with 6ch DSP & BT

SKU:MUSD1S

In Stock
Add To Compare

Musway D1S Micro 4ch Amplifier with 6ch DSP & BT

For music enthusiasts looking to upgrade their car audio system for the first time, the D1S is the best entry-level choice. Its Class AB amplifier delivers warm sound quality, and the built-in high-quality Bluetooth further enhances audio performance. With Musway's plug play harnesses, the D1S can be installed quickly and easily for a swift upgrade.

Features

  • EPS (Intelligent High-Level Input-Error Protection System)
  • Start-Stop ready
  • With the easy-to-use MUSWAY PC software, the D1S can be configured perfectly and in real time via PC
  • Built in 4-Channel high performance high to low converter, Hi-Fi sound quality and low noise
  • Internal Bluetooth Module: Hi-Fi Bluetooth for Audio Streaming.
  • For cars without ACC wire, signal sense can be used turn on/off amplifier
  • 28-bit DSP main chip supports the 10-band parametric EQ, digital crossovers and time correction.

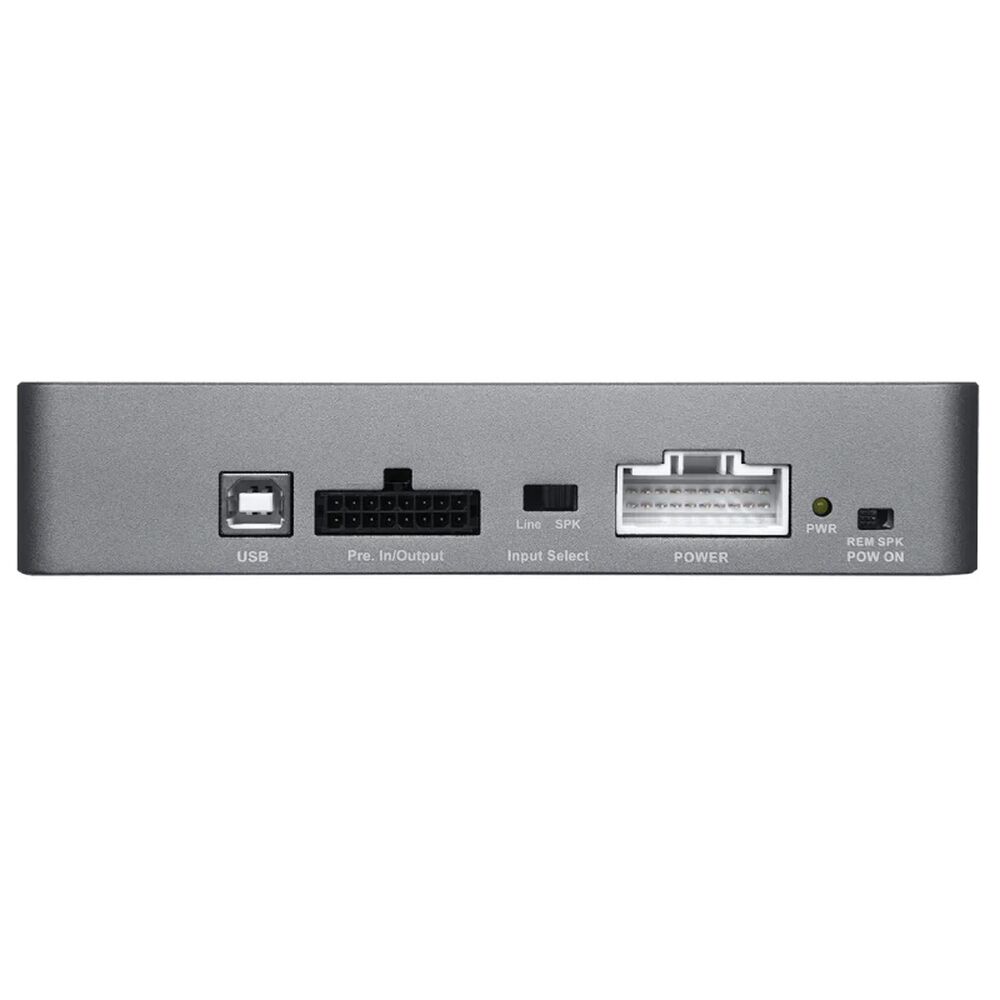

  • Input: 4 x High-Level, 2 x AUX/RCA
  • Output: 4 x High-Level, 6 x Low-Level (RCA) (Configurable via DSP Software)

Specifications

OUTPUT POWER (RMS) at 13.8 VDC, 1% THD

25 W x 4 at 4Ohms

Frequency response

15Hz-22KHz (±0.5dB)

Distortion - THD (1 kHz at 4 0, 90% Power)

<0.02%

S/N ratio at A weighted, 1 V, Max. Power

95dB

Input sensitivity

2V RMS (High-level) Input impedance 2200 (High-level)

Gain margin

mute, -59dB ~ 0dB

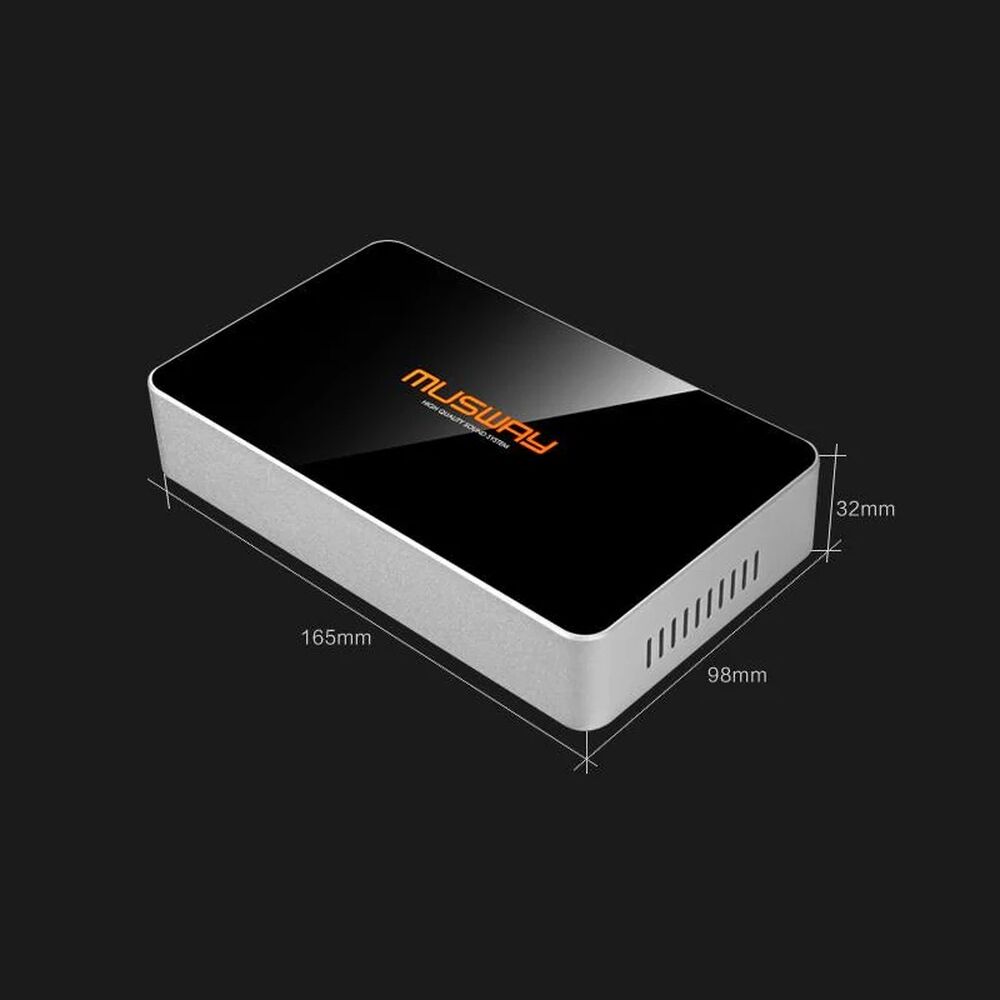

Dimension

165(L) x 98(W) x 32(H)

Net Weight

450g

(MUSD1S)
