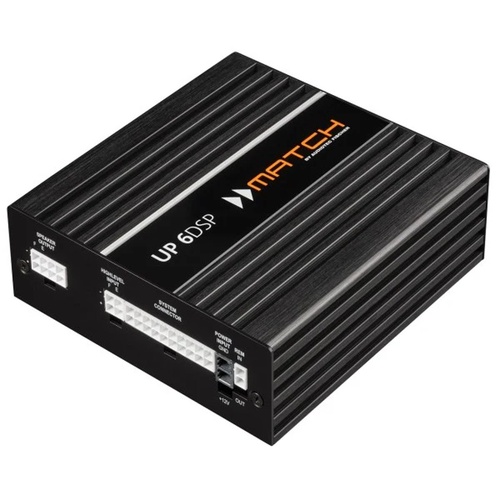

MATCH UP 6DSP - 6 Channel PnP Amplifier | 7ch DSP

Efficiency excellence for tailored OEM Integrations
The new UP 6DSP is a true all-rounder that not only delivers power and dynamics for authentic hi-fi sound but also provides all the necessary features for an effortless integration into the vehicle.

The perfect upgrade for standard sound systems

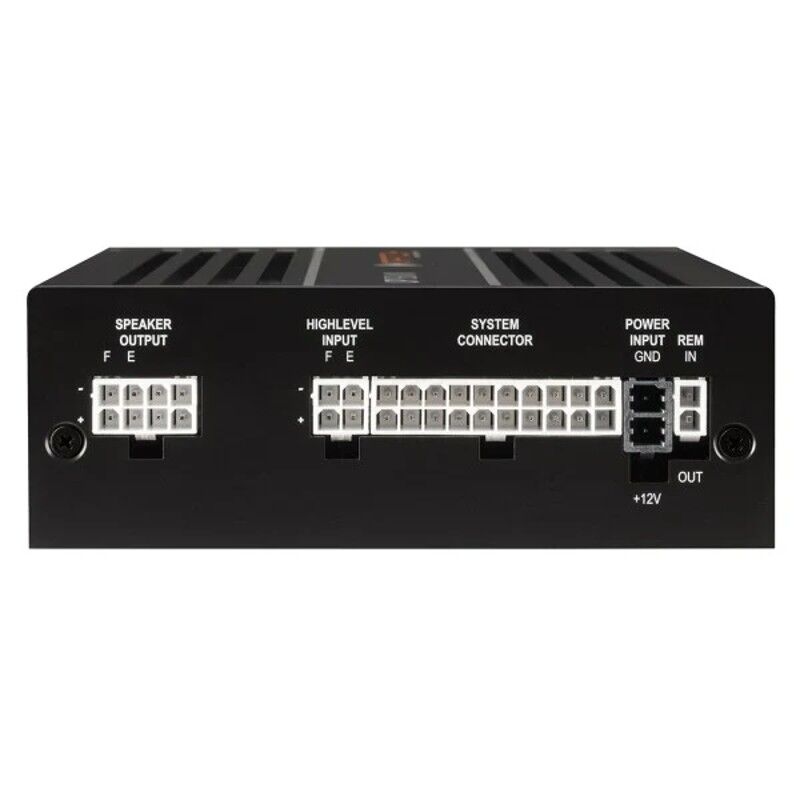

Equipped with six highlevel inputs, an optical digital input and the MATCH Extension Card Slot, the UP 6DSP masters the challenge of a seamlessly integrating into existing standard sound systems. Thanks to the innovative ADEP.3 circuit as well as six amplifier channels and an additional preamplifier output, the powerful 7-channel DSP allows for individual speaker configurations. The amplifier's power even brings larger subwoofers to life, with two of its output channels delivering impressive 160 W at 2 Ohms – ideal for particularly power-hungry speakers.

Virtual Channel Processing – this is how signal routing works today
The optimal adaptation to existing multi-channel sound systems requires sensible management and configuration of the many DSP channels – so it was no question that the UP 6DSP is also equipped with Audiotec Fischer's innovative virtual channel processing.
Especially when front, rear and center systems are split into multi-way systems, conventional routing concepts quickly reach their limits in terms of implementation and usability. The multi-stage "Virtual Channel Processing", in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to map even highly complex system configurations and to freely assign our proprietary FX sound features. Additionally, thanks to the same number of input and amplifier channels the UP 6DSP is also a prime example for applications where 1 to 1 routing (IOR) makes sense.

ACO – Advanced 32 Bit CoProcessor platform
Of course, the UP 6DSP is equipped with our proprietary 32 Bit ACO platform, which doesn’t just take over all control tasks ultra-fast, but also handles a bunch of audio functions: fantastic sound effects such as Augmented Bass Processing or Real Center are implemented as well as a channel-separated Input EQ including Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios, which already include a sound setup by default.

Compact design for flexible installation options
The UP 6DSP impresses with its powerful yet compact design, which allows easy installation even in confined spaces.

DSP PC-Tool 5 feat. TuneEQ – Powerful features for the ultimate sound experience
Of course, the MATCH UP 6DSP can be easily configured via our professional and exceptionally intuitive DSP PC-Tool 5. The familiar, numerous setting options leave nothing to be desired and guarantee an extremely precise sound adjustment even for complex system configurations. And thanks to the new, proprietary TuneEQ function for automated frequency response correction, you also save a lot of time when optimizing your sound.

Product parameters

• Channels: 6 Channel
• Built-in DSP: Yes
• RCA Input: 0 | High-Level only
• High-Level Input: 6x High level
• Power W RMS/ch | 4Ω: 65

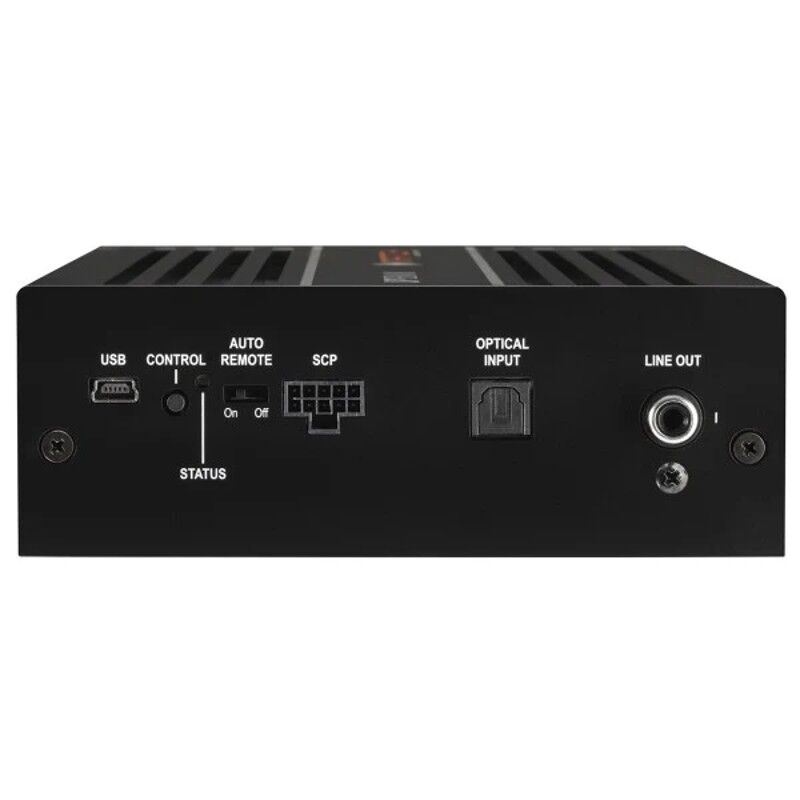

• Other Input: Optical
• Class: Pure GD | Ultra HD
• Max Input Sensitivity (V): 11
• THD+N | %: 0.03
• Operational Voltage:
• RCA Out: 1x RCA | Mono
• Product Depth | mm: 130
• Product Width | mm: 130
• Product Height | mm: 46
