MATCH UP 1FX - 1 Channel Compact Digital High-Power Amplifier | 1Ω Stable

Power. Precision. Control: MATCH UP 1FX
Exceptionally compact and powerful, this highly efficient high-fidelity Class D amplifier delivers exceptional sound quality in combination with an impressive output power of up to 1000 Watts. The immense power drives even high-performance subwoofers to peak performance and makes the UP 1FX the perfect companion for all HELIX and MATCH subwoofer chassis and enclosure subs.

Perfect integration without compromises

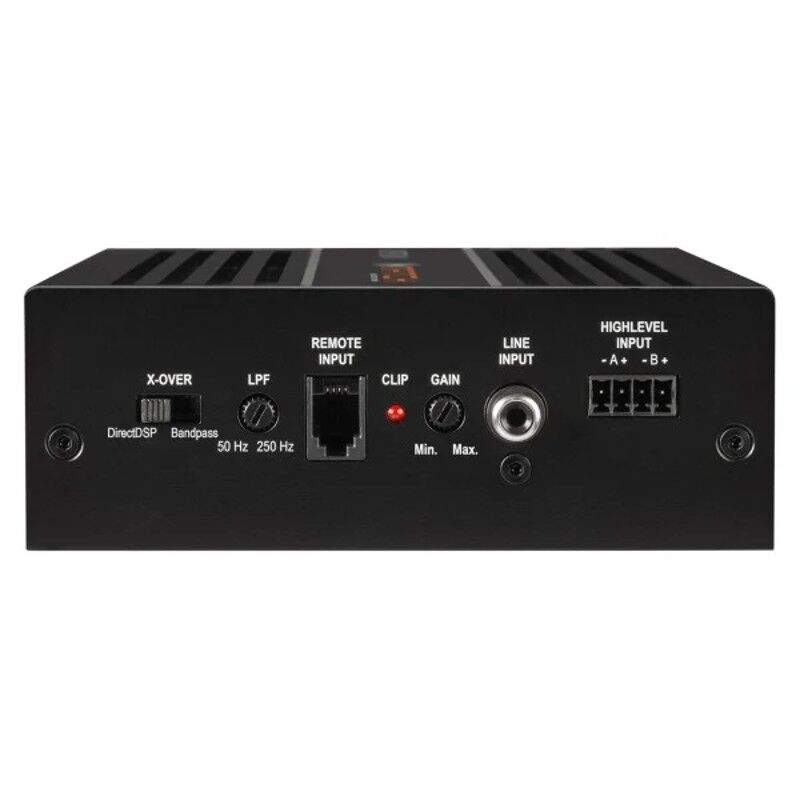

Simple and uncompromising – the MATCH UP 1FX offers the ideal solution for upgrading factory subwoofer amplifiers, thanks to the integrated active crossover and high power stereo highlevel input with ADEP.3, max. 32 V input voltage, and signal summing. The mono RCA / Cinch input as well as the DirectDSP function make it the perfect complement to our MATCH UPGRADE DSP amplifiers. Furthermore, the power supply with Start-Stop capability and extended input voltage range of up to 18 V enables the amplifier to be used in modern electric vehicles.

Pure sound enjoyment
Despite its enormous output power, the MATCH UP 1FX is more than just a subwoofer amplifier. Its special construction, excellent signal-to-noise ratio, and low distortion guarantee pure audio enjoyment. Therefore, the UP 1FX is the perfect partner for heavy-duty mid-woofers in audiophile system concepts. In addition, the  innovative DirectDSP function allows bypassing the internal crossover and routes the input signal unfiltered to the output stages of the amplifier, delivering a sound that even exceeds the expectations of discerning music enthusiasts.

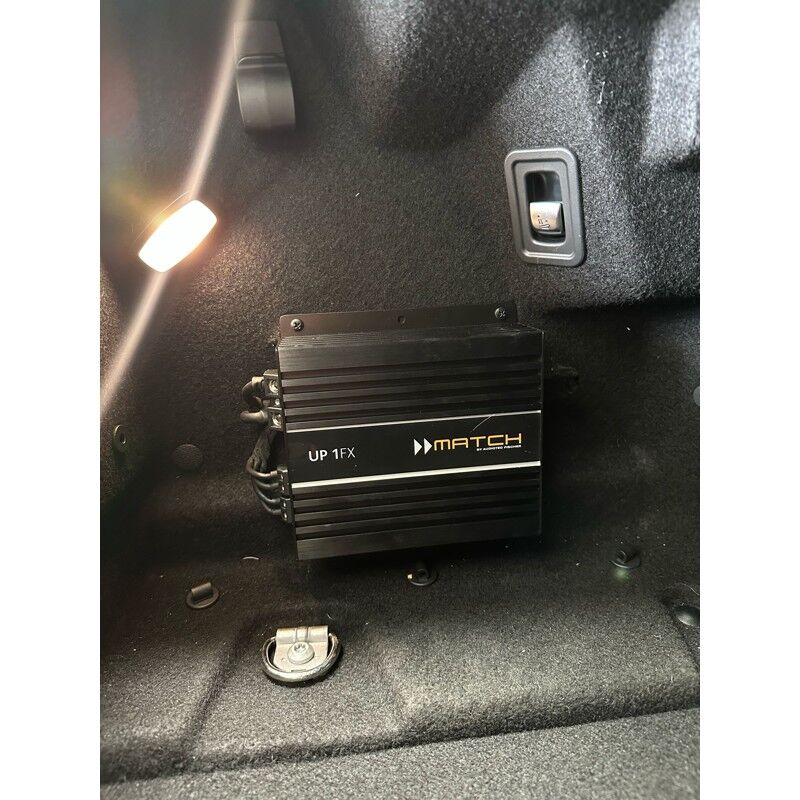

Compact dimensions for flexible installation possibilities
Contrary to its impressive power output, the 1-channel subwoofer upgrade amplifier comes in the same extremely compact dimensions as our UP 8DSP amplifier. This allows space-saving installations, even in vehicles with limited space.

Product parameters

• Channels: 1 Channel | Mono
• Built-in DSP: No
• RCA Input: 1x RCA | Mono
• High-Level Input: 2x High level
• Power W RMS/ch | 4Ω: 350
• Power W RMS/ch | 2Ω: 600
• Power W RMS/ch | 1Ω: 900
• Class: D
• Max Input Sensitivity (V): 32
• THD+N | %: 0.002
• Operational Voltage:
• RCA Out: 0x | No Pre-out
• Product Depth | mm: 153
• Product Width | mm: 130
• Product Height | mm: 46
