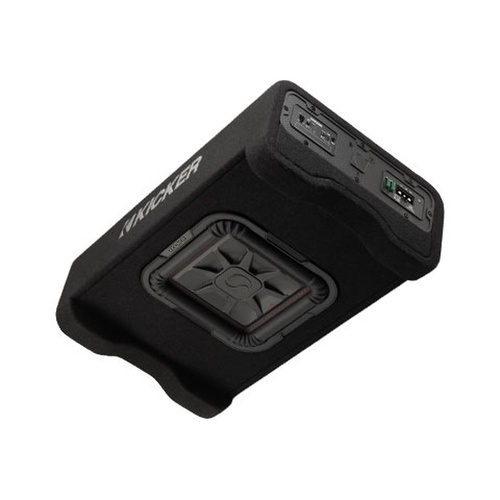

Kicker PL7TDF Powered Down-Firing 10" Enclosure

Everything you need in one package, and then some! Award-winning Solo-Baric L7 Subwoofers in a tough but convenient, down-firing enclosure, and big power from an internal amplifier providing big bass to your vehicle. Outstanding!

Powerful and Down-Firing - It Means Business!

Compact, factory-tuned enclosure for tight locations to fit many trucks and SUVs
Two models available – 12-inch sub with 600-watt amp, or a 10-inch sub with 500-watt amp
Amp is built-in and power-matched for the hardest-hitting bass
Easily integrates with factory system
Down-firing for ultimate subwoofer protection
Thick, tough internal bracing to resist stacking weight
Solo-Baric L7 square technology for moving more air and creating more bass
Start/Stop-System Compatible
Remote bass control included
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.

Specifications
Product Dimension Sheet
53PL7TDF10 Dimensions
TYPE
powered down-fire
WOOFER SIZE (in, cm)
10, 25
RMS POWER (watts at 14.4v)
500
PHASE SWITCH
0-180°
FREQUENCY RESPONSE (Hz)
25-120
S-TO-N RATIO (A-weighted, re: rated power)
>90dB
INPUT SENSITIVITY
Low Level – 125mV-5V; High Level – 1V-40V
CROSSOVER
active 24dB/octave, variable 50-120Hz low pass; 24dB/octave, high pass at 25Hz
BOX HEIGHT (in, cm)
7-1/2, 19.1
BOX DEPTH (in, cm)
14-3/8, 36.5
BOX WIDTH (in, cm)
23-3/8, 59.5
