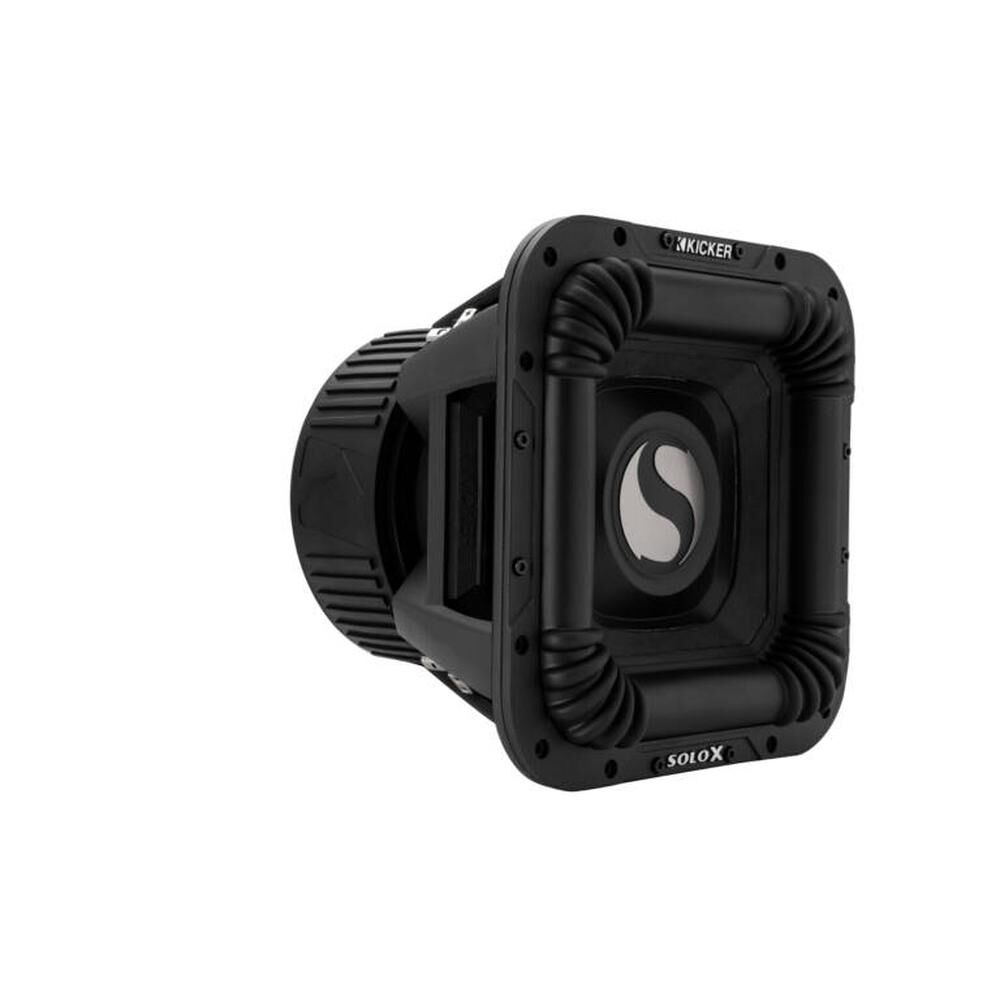

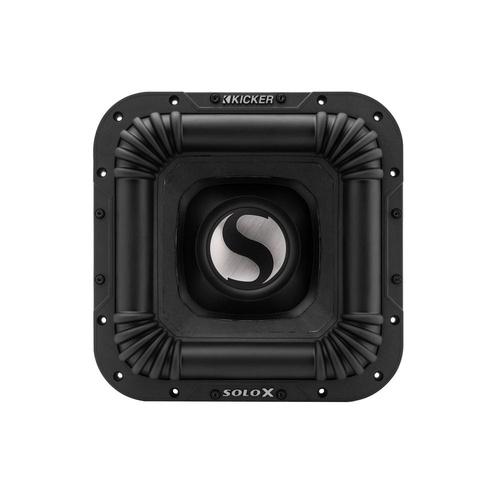

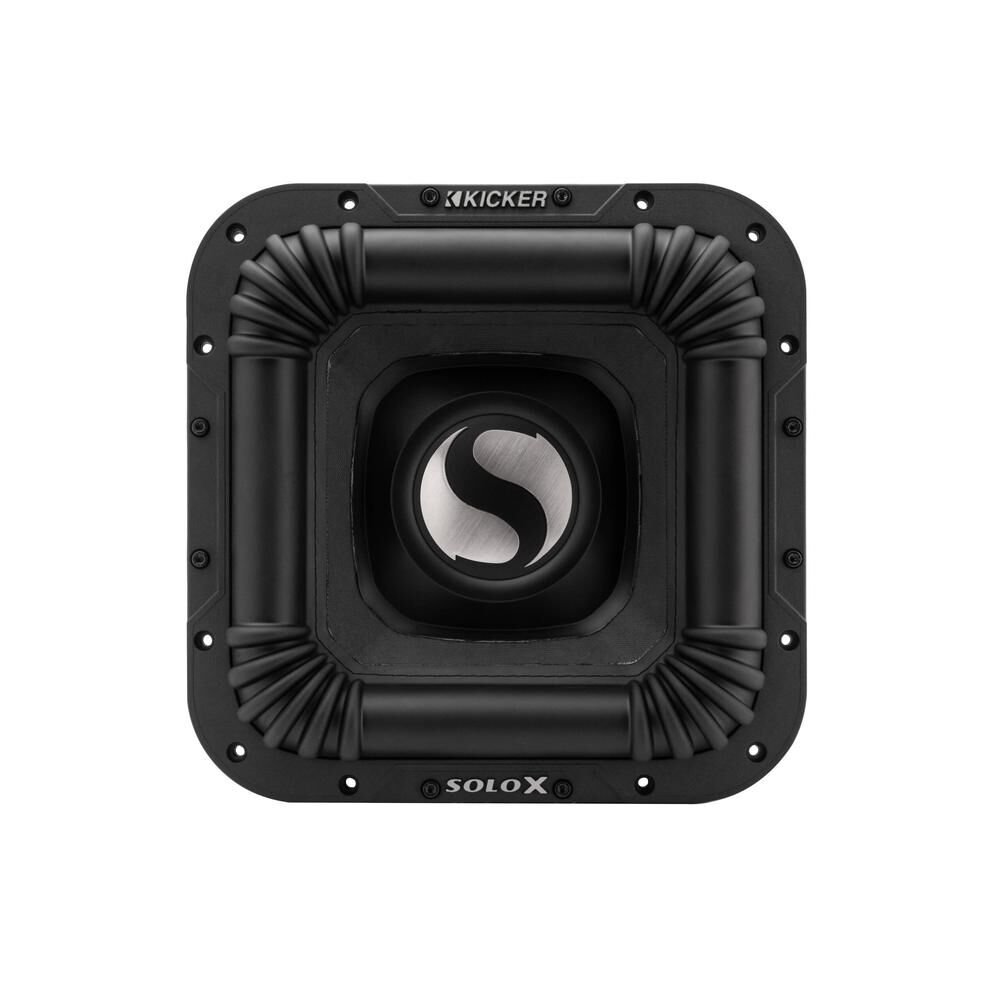

Kicker 49L7X122 12" DUAL 2 OHM Subwoofer

12" SoloX L7X 2 Ohm

The KICKER SoloX L7X is our most advanced bass technology with extreme power handling made to turn heads!

Incomparable

Incomparable

SoloX always promises high-excursion design, made for ultra-deep bass at very high volume. It's developed like no other KICKER subwoofer.

Specifications
Thiele/Small Parameters
49L7X122 T/S Parameters
Size (in, cm)
12, 30
Rated Impedance (Ohms)
2 DVC
Rec Amp Power rms
1000-2000
Frequency Response
20-100
Magnet Diameter (in, cm)
8-11/16, 22
Total Magnet Weight (oz, kg)
406, 11.5
Voice Coil Diameter (in, mm)
3, 75
Voice Coil Winding Width (in, mm)
2.5, 62.5
Product Dimension Sheet
49L7X12 Dimensions
Top Plate Thickness (in, mm)
0.5, 13
Xmax (in, mm)
1.25, 31.25
Mounting Cutout (in, cm)
11-1/16, 28.1
Mounting Depth (in, cm)
10-1/8, 25.7
Recommended Vented Box Volume (Cu. Ft., L)
3, 84.9
Port Opening (in x in, cm x cm)
3.5 x 13, 9 x 33
Port Length (in, cm)
36.5, 93
Vented Enclosure Tuning Frequency (Hz)
31
