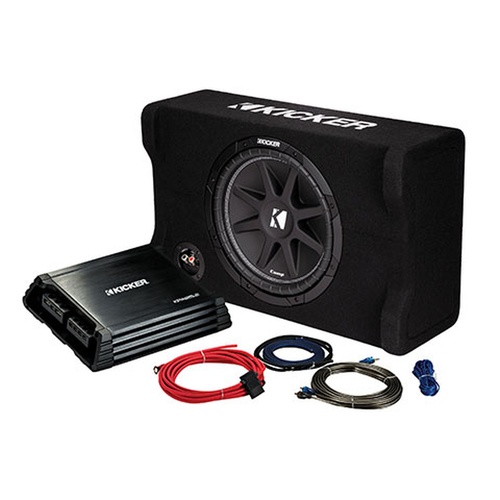

Kicker 49KKPDF212 12" Downfiring Subwoofer Amplifier And Wiring Kit

Stack Your Stuff

The high-output Comp Down-Firing Enclosures are tough as nails. Load your cargo right on top of the sub enclosure for extra space – with plenty of bass! No grilles needed.

Comp Power

With full perimeter venting and UniPlate™ back plate and pole piece, the Comp subwoofer has outstanding thermal management. A stiff, injection-molded cone with 360° back bracing keeps the bass smooth and loud all day long.

Better Boxes

Built for extreme bass, this KICKER sub box utilizes extensive internal bracing, thick MDF construction and custom embroidery. You get the kind of reliability and great looks that make showing off your bass easy – and awesome!

Specifications
Loaded Enclosure Specifications:
TYPE:
down fire
WOOFER SIZE (in, cm):
12, 30
IMPEDANCE (Ohms):
4
Recommended Amplifier Power (watts RMS)
150
Peak Power (watts, per ANSI/CTA-2031-A)
300
SENSITIVITY (dB 1w/1m):
92.3
BOX DIMENSIONS

DIMENSION A (in, cm):
22-7/8, 58.0
DIMENSION B (in, cm):
14-3/16, 36.0
DIMENSION C (in, cm):
7-7/8, 19.5
DIMENSION D (in, cm):
6-15/16, 17.5
Amplifier Specifications:
RMS Power [Watts]
@ 14.4V, 4Ω stereo, ≤ 1% THD+N : 30 x 2
@ 14.4V, 2Ω stereo, ≤ 1% THD+N : 60 x 2
@ 14.4V, 4Ω bridged mono, ≤ 1% THD+N: 125 x 1
Length [in, cm]
8-1/8, 21
Height [in, cm]
2-3/8, 6
Width [in, cm]
7-3/16, 18
Frequency Response [Hz]
10Hz–20k
Signal-to-Noise Ratio [dB]
>95, A-weighted, re: rated power
Input Sensitivity
Low Level: 125mV–5V
High Level: 250mV–10V
Electronic Crossover
HI, LO or OFF; Fixed 100Hz @ 12dB/Octave
KickEQ™ Bass Boost
Selectable 0 or +9dB @ 40Hz
