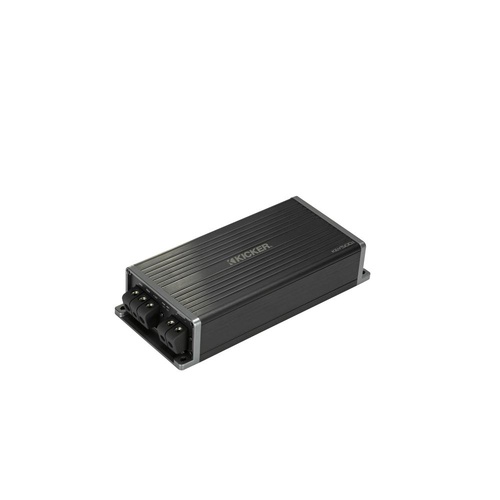

Kicker 47KEY5001 500 Watts RMS Mono Amp

AUTO EQ

Using KICKER's supplied test tones, the KEY automatically analyzes the audio being fed into the amplifier. Once this signal has been analyzed, the amp will automatically fix peaks in the signal coming in and restore the low bass that is typically missing. In a matter of moments, you get a clean, even bass response from your amp!

Start with these FREE TEST TONES for easy setup!

ALL THE CONTROL

Craft your sound with ease! The KEY500.1 comes with 24dB sub-sonic and low-pass crossovers, bass boost and gain controls.

START. DON'T STOP.

The amplifier also features FIT 2+/¢ (Fail-safe Integration Technology 2 PLUS) which provides nearly universal compatibility with stock or aftermarket radios. Another industry first, the KEY500.1 is uniquely suited to accept factory input signals as high as 40 volts (400 watts). The KEY amplifier will work with almost every car on the road today, whether you have a factory or aftermarket audio system.

Specifications
Power (watts/ch), 1 Ohm mono
500
Power (watts/ch), 2 Ohm mono
300
Power (watts/ch), 4 Ohm mono
150
Standard dimensions in.(H x W x L)
1-11/16 x 4-1/8 x 8-1/8
Metric dimensions cm(H x W x L)
4.3 x 9.2 x 20.7
Frequency Response (Hz):
10-160
Input Sensitivity:
high level: 1V-40V / low level: 125mV-5V
Signal-to-Noise Ratio:
>90dB, a-weighted, re: rated power
Selectable Electronic Crossover:
Variable Low Pass 40-160 Hz, Variable High Pass 10-40 Hz
What's in the Box:
1 fuse holder
1 manual and installation hardware
