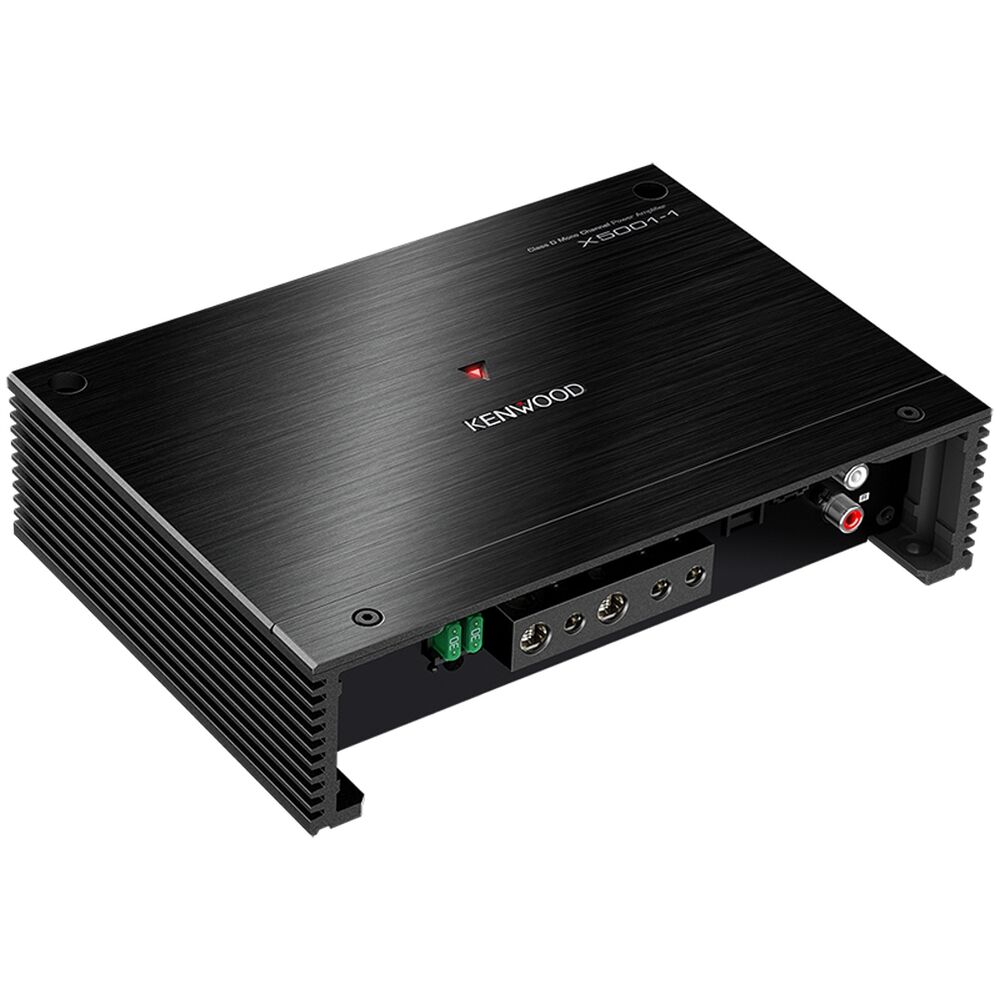

Kenwood X5001-1 Class D Mono Power Amplifier

Kenwood X5001-1 Class D Mono Power Amplifier

• Max Power 1000W
• RMS 300W (4Ω)
• RMS 500W (2Ω)
• Size (W) 213mm x (H) 53mm x (D) 149mm
• Variable Low Pass Filter
• Bass Boost
• Infrasonic Filter
• Optional Wired Remote Ready

Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

High Quality Capacitors
PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

Infrasonic Filter (ISF)
When the Infrasonic Filter Switch is turned on, the amplifier cuts off the low frequencies below 25Hz, which makes the amplifier’s power supply and output devices more efficient, providing clear bass output.

Gauge-style terminals lock wire
into position with set screw for secure installation.

One-side Connection
All terminals and connections are on one side foreasier installation and a cleaner look.

①Fuse (30A x2)
②Battery terminal (POWER IN BATT.)
③Power control terminal
④Ground terminal (GND)
⑤Speaker output terminals
⑥Remote terminal
⑦Speaker level input terminal
⑧Line in terminal

⑨Input sensitivity control
⑩Infrasonic filter switch
⑪Bass Boost Level control
⑫LPF frequency control
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
