Kayhan Audio CP-3432 12.1" Android Car Stereo with Sat Nav To Suit Ford Falcon FG MK2 | Version 6+

12.1" Android 14 | 8GB/256GB | Wireless CarPlay/AA

SKU:CP-3432

$1,895.00



In Stock
Usually ships in 5–7 business days

colour


Calculate Shipping

Kayhan Audio CP-3432 12.1" Android Car Stereo with Sat Nav To Suit Ford Falcon FG MK2 | Version 6+

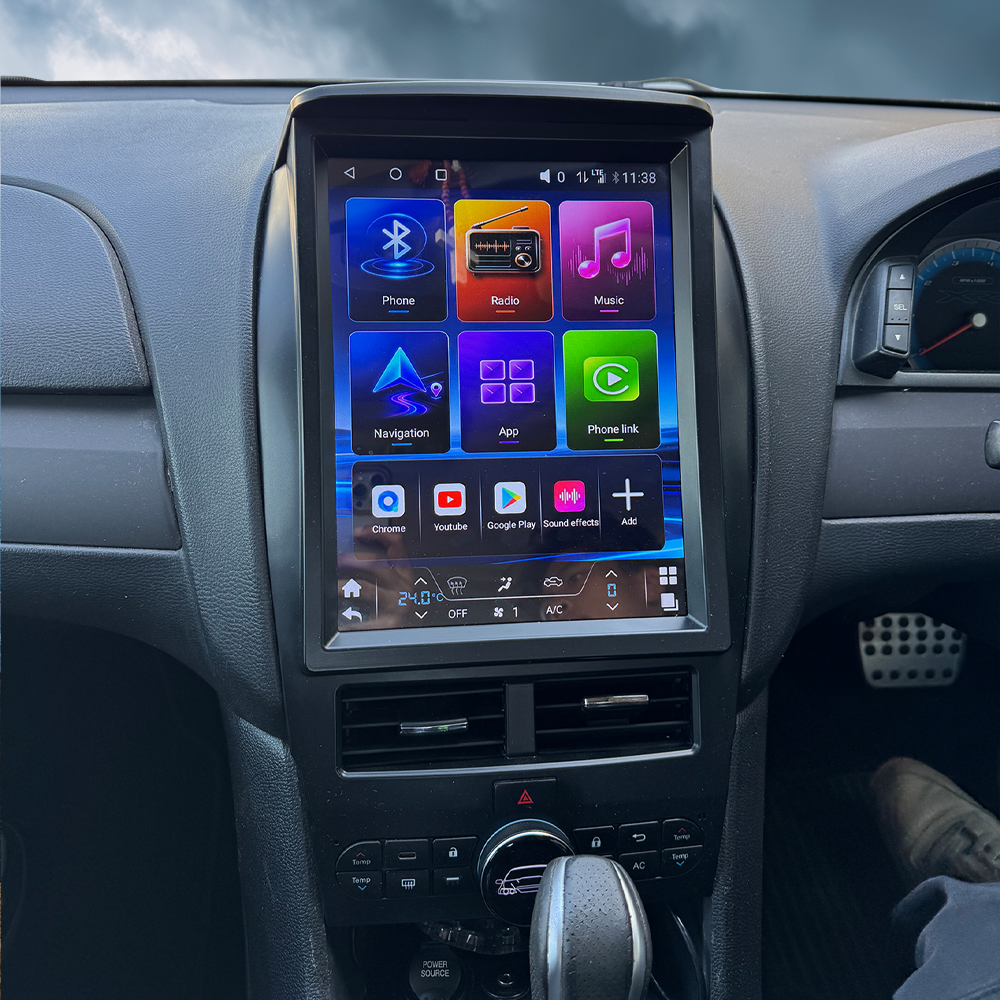

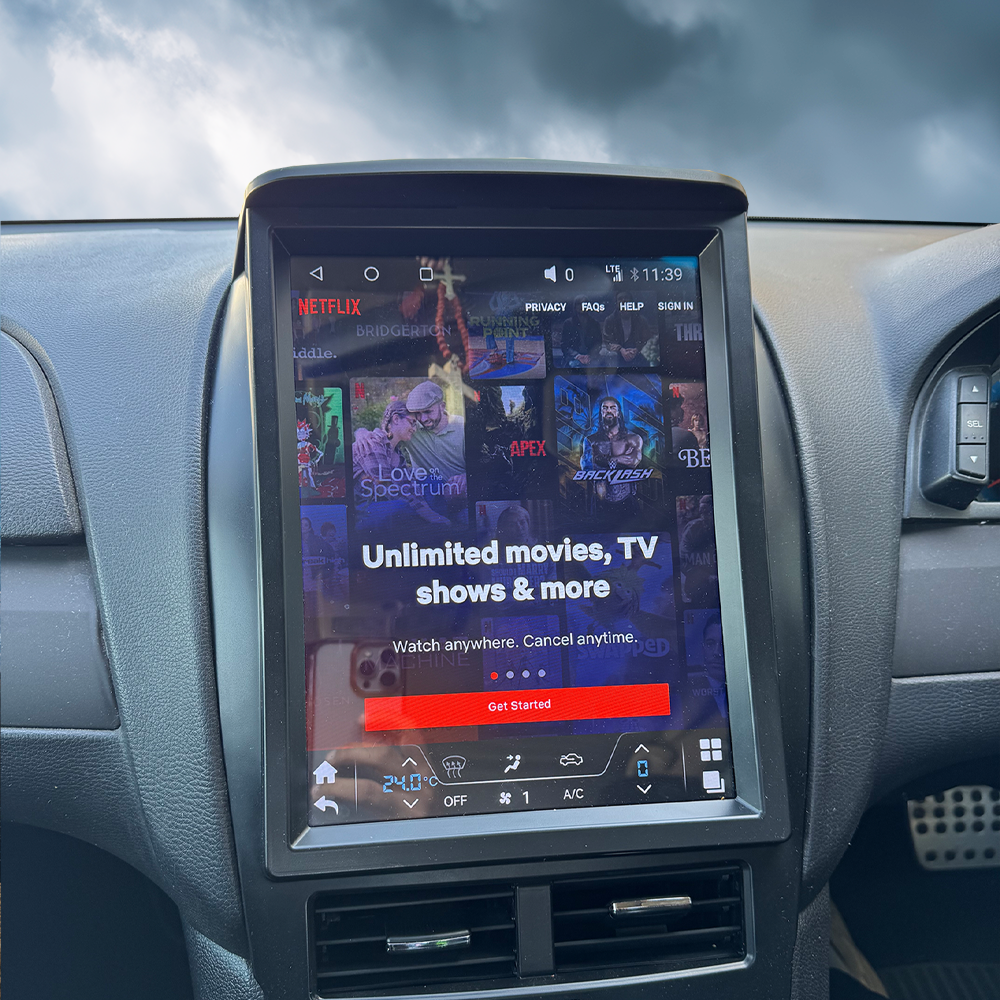

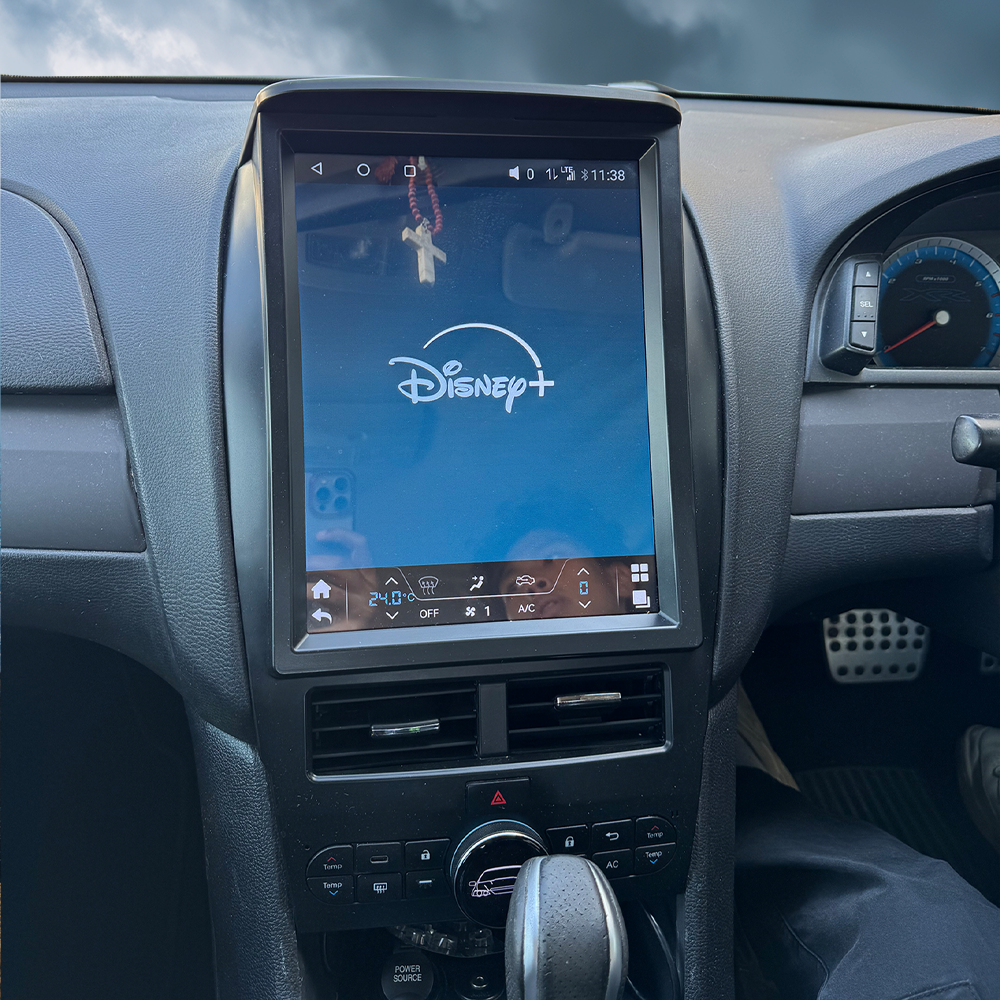

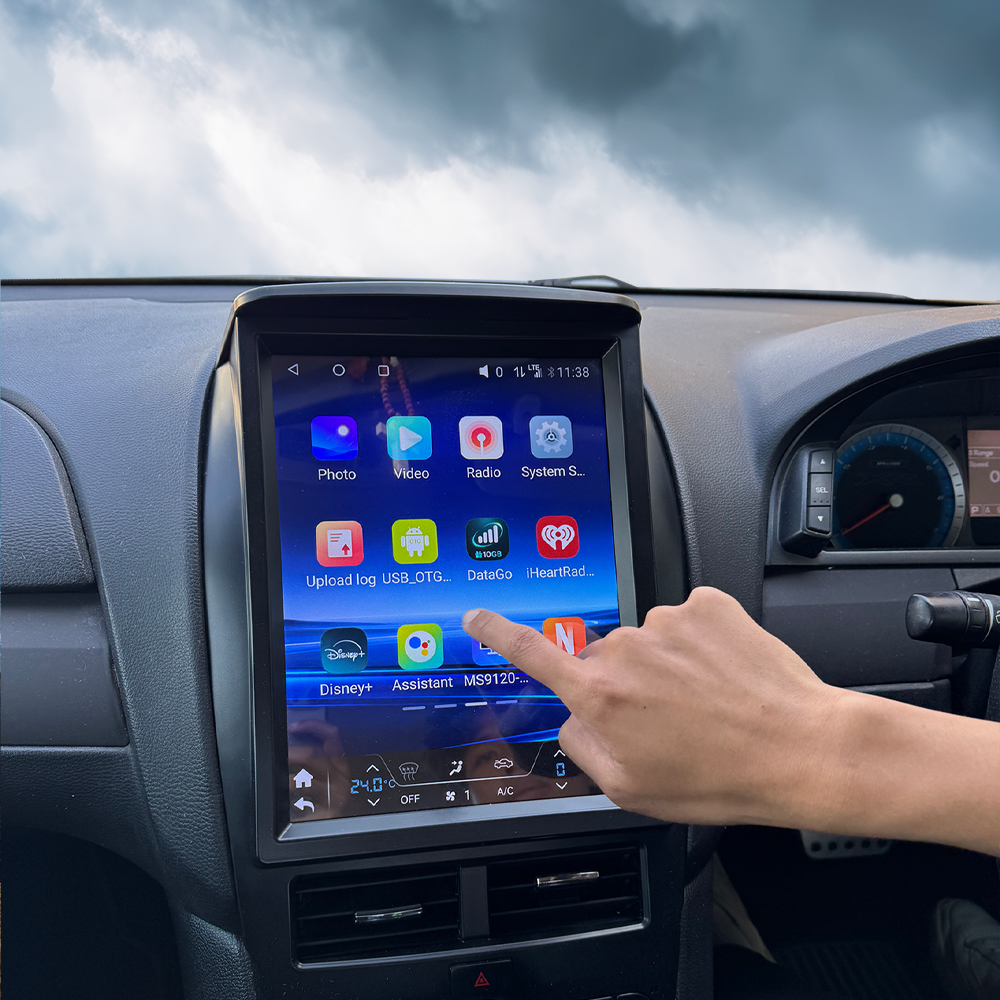

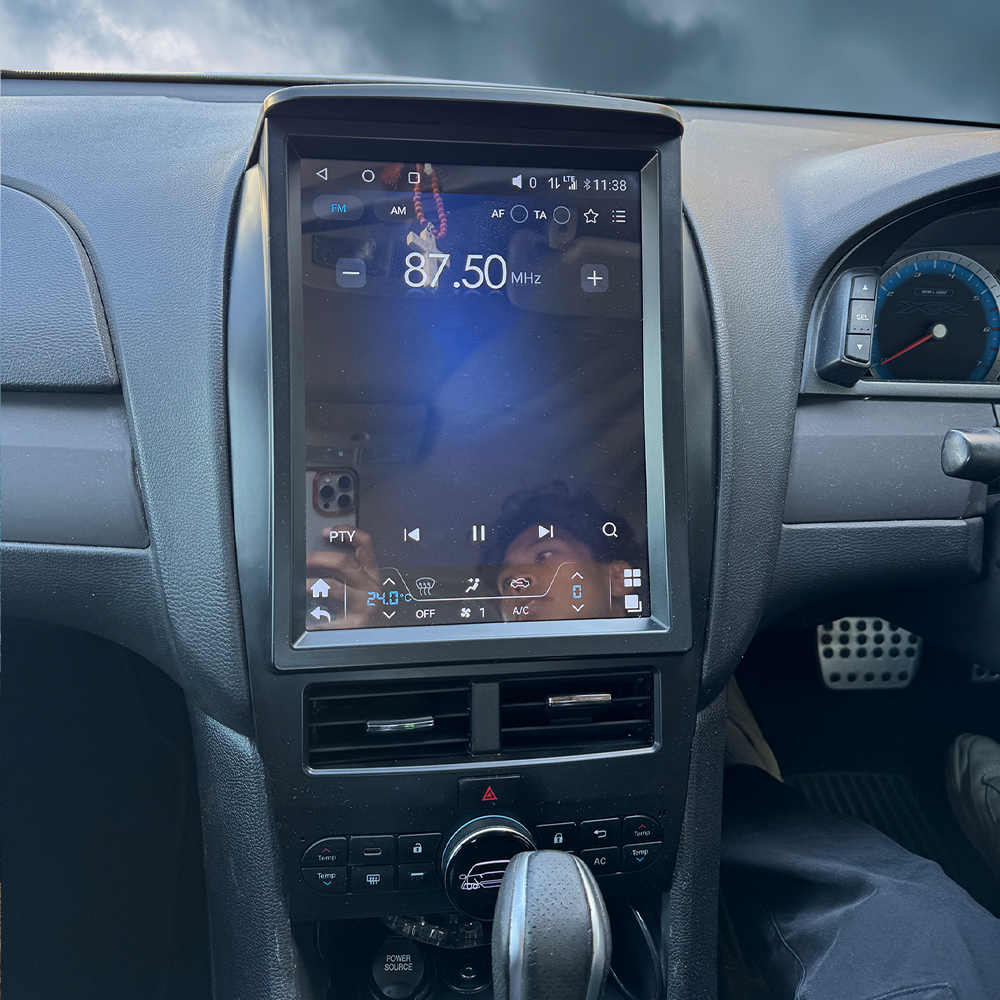

Give your Ford Falcon FG MK2 a modern big-screen upgrade with the Kayhan Audio CP-3432. This 12.1" Android 14 multimedia unit has 8GB RAM and 256GB storage, built-in sat nav, wireless and wired Apple CarPlay and Android Auto, 4G LTE, DAB+ and advanced audio processing. It is built specifically for the FG MK2 dash and keeps the factory features you rely on, including vehicle settings, AC controls, reverse sensors, steering wheel controls and factory amplifier control. It comes as a complete kit with top hat, air vents and air vent panel, so there are no extra parts to hunt down.

Features

  • Large 12.1" touchscreen (1024 × 768) with anti-glare, hard-coated surface and 500 cd/m² brightness
  • Android 14 on a Qualcomm SM6225 octa-core processor (up to 2.8GHz)
  • 8GB RAM + 256GB storage for fast, smooth performance

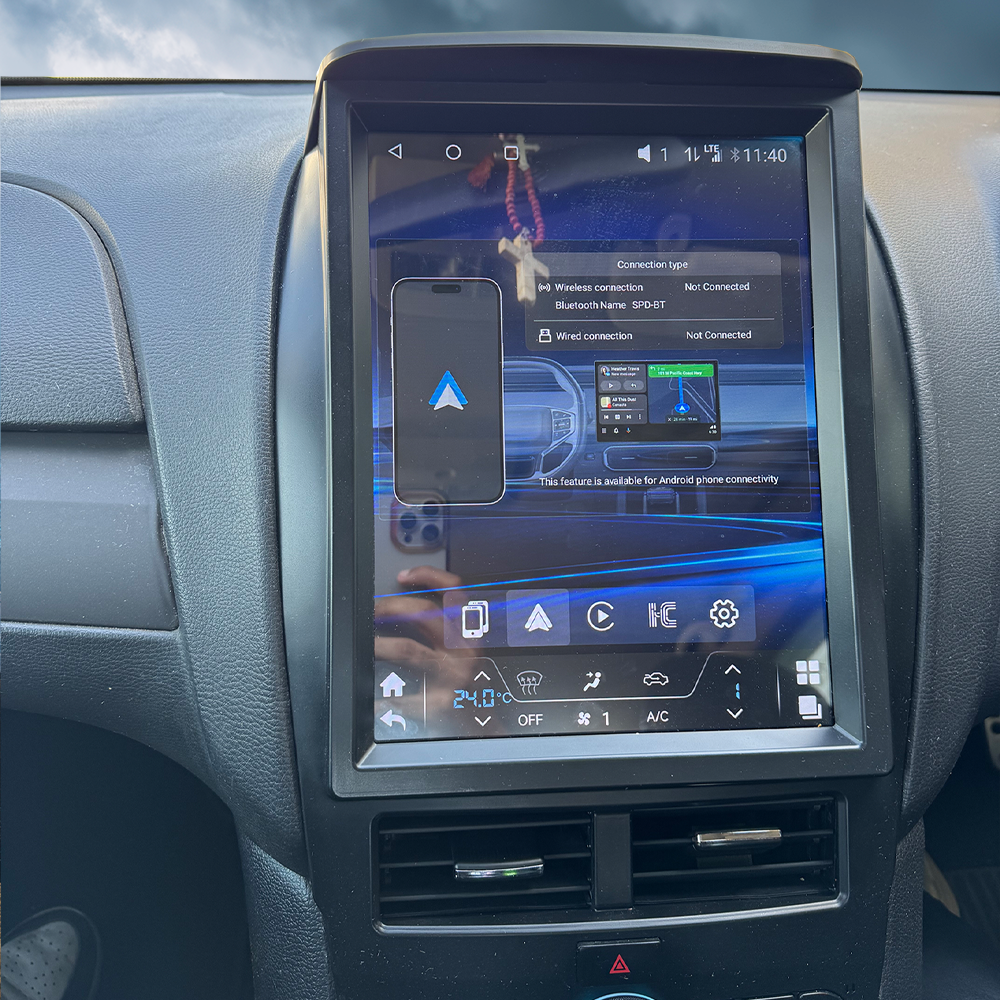

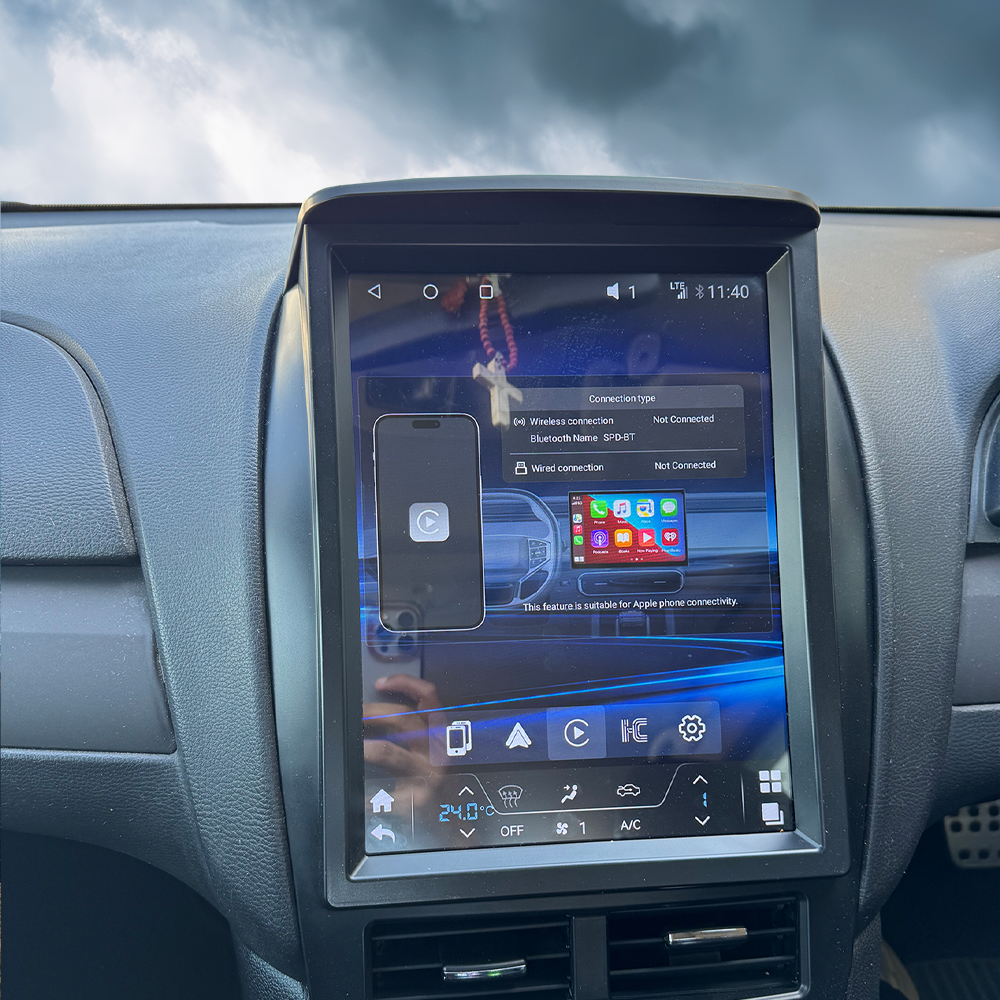

  • Wireless and wired Apple CarPlay and Android Auto

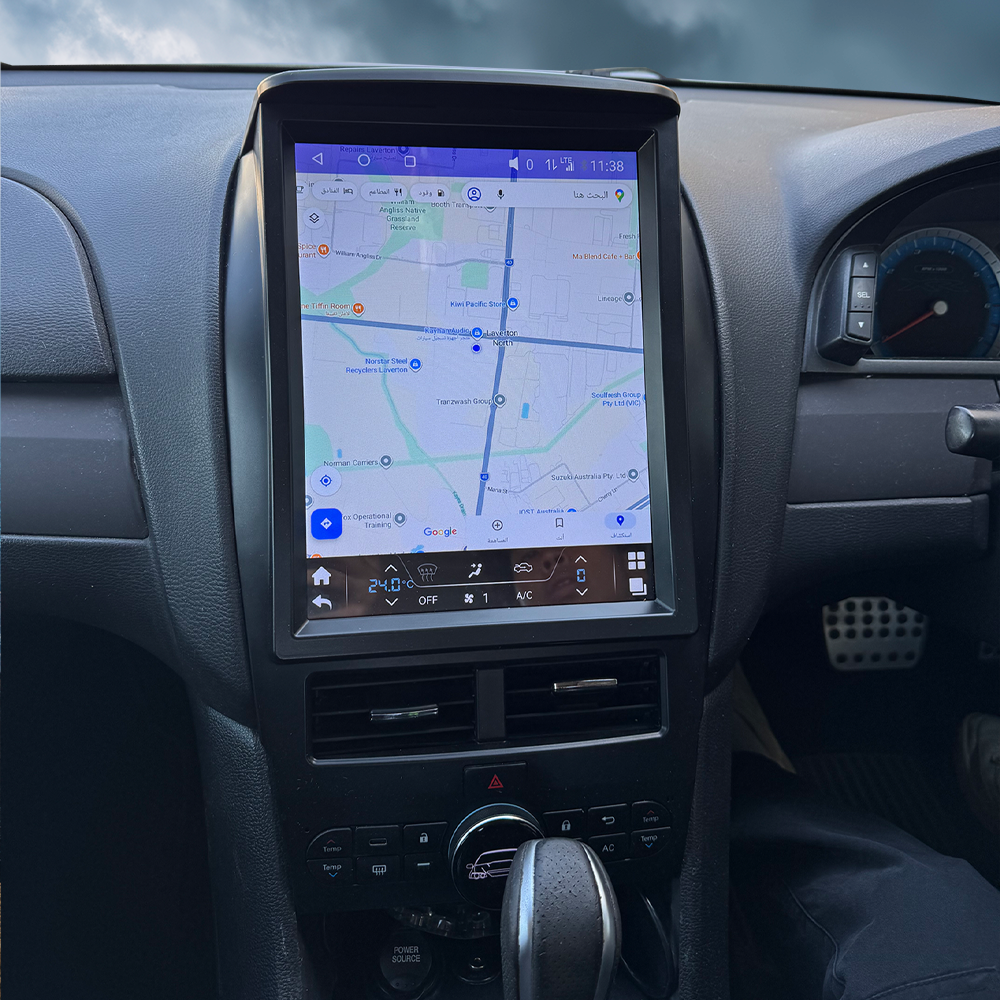

  • Built-in GPS sat nav (GPS / GLONASS / BeiDou / Galileo / QZSS)
  • 4G LTE Cat 6 with SIM card slot, 5GHz Wi-Fi and Bluetooth 5.0
  • 45W × 4 built-in amplifier with 8-channel 4V RCA outputs
  • DTS HiFi audio, 48-band EQ and 5.1-channel support, plus optical and coaxial digital outputs
  • 3 × USB 2.0 ports plus a front-panel USB Type-C charging port
  • Supports up to 4 × 1080P AHD cameras, including built-in 360° camera support
  • DAB+ digital radio with external DAB+ module included, plus AM/FM with RDS
  • Retains factory settings, AC controls, reverse sensors, reverse camera, steering wheel controls and factory amplifier control
  • Complete install kit: top hat, air vents and air vent panel included
  • Fascia available in Piano Black, Grey or Silver

Specifications

Screen 12.1" TFT-LCD (active matrix, a-Si), 4:3 aspect ratio
Resolution 1024 × 768 (XGA), 60Hz refresh
Brightness / Contrast 500 cd/m² typical (400 cd/m² min) / 900:1 typical
Display Surface Anti-glare + 3H hard coating, LED side-light backlight, 16.7M colours, 85° viewing angle
Operating System Android 14
Processor Qualcomm SM6225 Octa-Core, 6nm, 64-bit Cortex-A73 up to 2.8GHz
GPU Qualcomm Adreno 610
RAM / ROM 8GB LPDDR4 RAM / 256GB eMMC storage
Apple CarPlay Wireless / Wired
Android Auto Wireless / Wired
4G LTE Cat 6, up to 300Mbps downlink, external SIM card support
Wi-Fi 5GHz
Bluetooth Bluetooth 5.0 – hands-free calling and music streaming
Built-in Amplifier 45W × 4
RCA Outputs 8-channel, 4V RMS
Digital Audio Outputs Optical + coaxial
DSP / EQ DTS HiFi sound processing, 48-band EQ, TruBass, virtual centre channel, multiple surround modes; supports 5.1-channel, 2-way and 3-way systems
USB 3 × USB 2.0 + front-panel USB Type-C charging port; USB Type-C direct video out
Media Playback Video up to 1080p @ 60FPS or 4K @ 30FPS; MP4, AVI, MKV, RMVB, MOV, MPEG, WMV, MP3, AAC, FLAC, AIFF, DTS, AMR, JPG, PNG, BMP and more

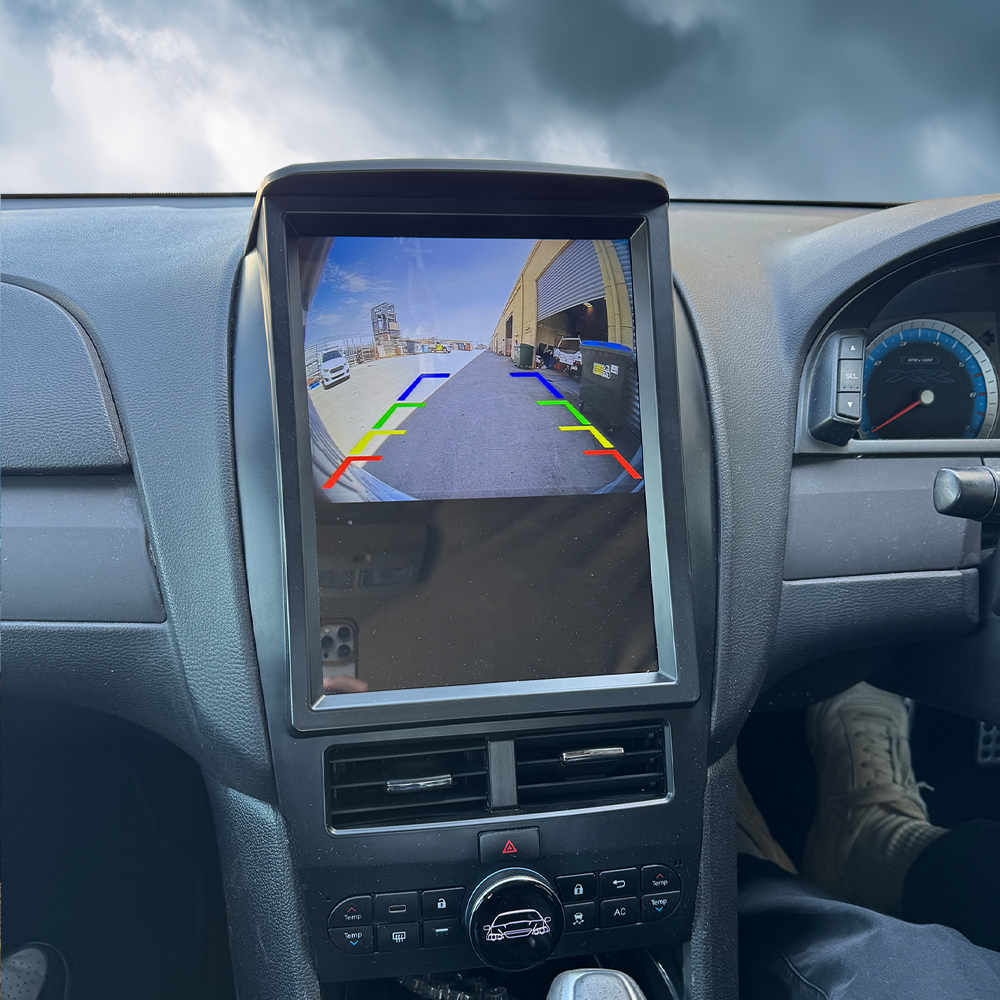

Cameras Up to 4 × 1080P AHD camera inputs; built-in 360° panorama support (uses all 4 inputs); front and reverse camera supported
GNSS GPS / GLONASS / BeiDou / Galileo / QZSS
DAB+ Via external DAB+ module (included), tailored for Australian DAB+ bands
AM / FM FM 87.5–108MHz, AM 522–1620kHz, RDS/RBDS, Silicon Labs SI47925 tuner
Microphone External microphone supported
Power 9V–16V input (14.4V typical), over- and under-voltage protection
Retained Factory Features Factory settings, AC controls, reverse sensors, reverse camera (compatible), steering wheel controls, factory amplifier control, reverse detection
Fascia Colours Piano Black / Grey / Silver
Warranty 12 months

What's in the Box

  • 12.1" Android head unit
  • Top hat
  • Air vents
  • Air vent panel
  • External DAB+ module
  • Everything needed to install the unit

Fitment

To Suit Ford Falcon FG MK2

Factory Premium Sound (Amp/Sub)

Vehicles with the factory premium sound amplifier and/or subwoofer need the Premium Sound Kit (select the Factory Amp / Sub Premium Sound Kit option, +$75) to keep the factory amp and sub working with this unit.

Warranty

12 months warranty.

(CP-3432)
