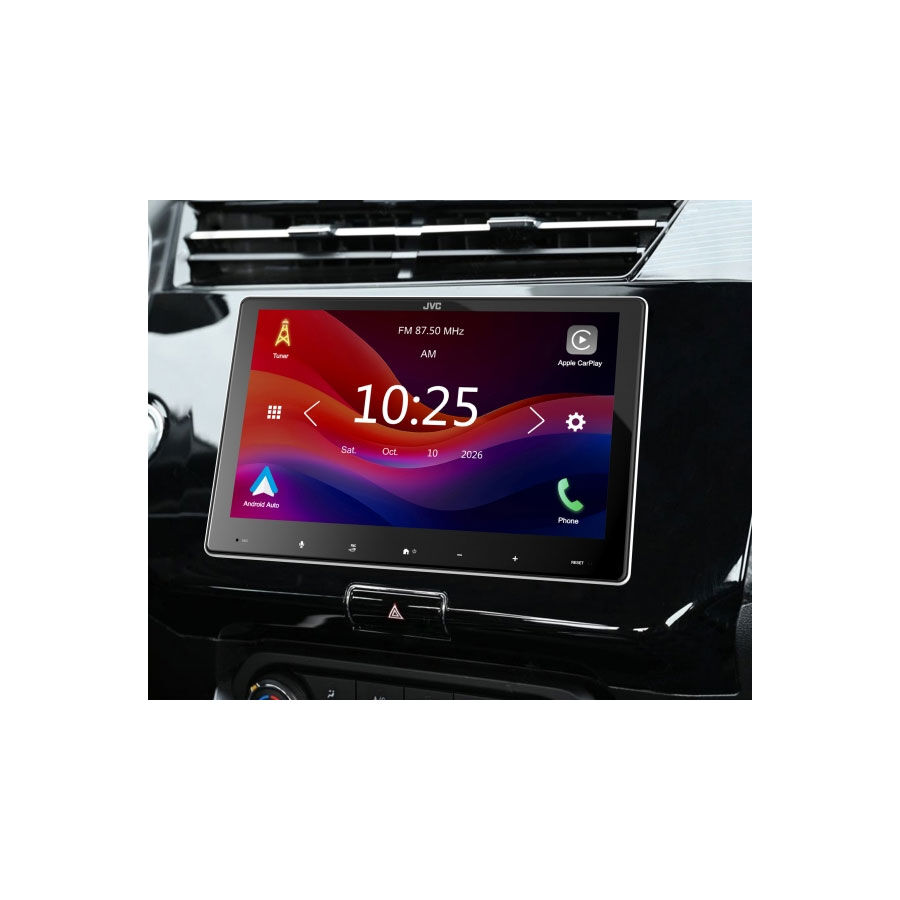

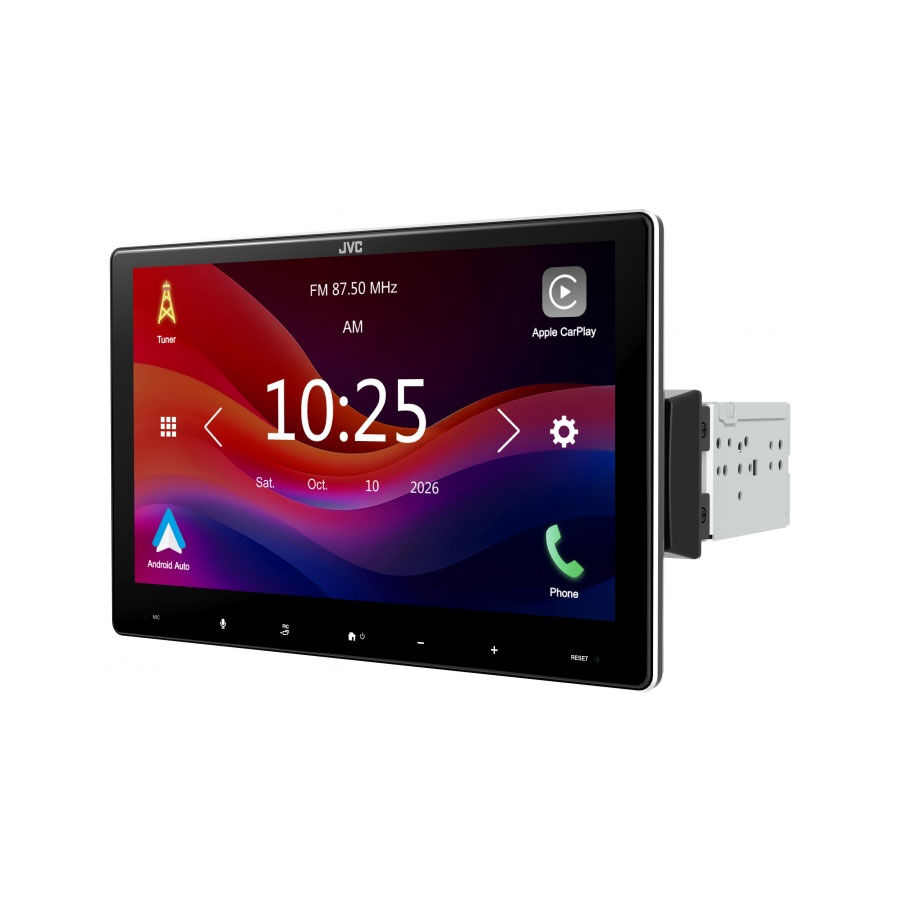

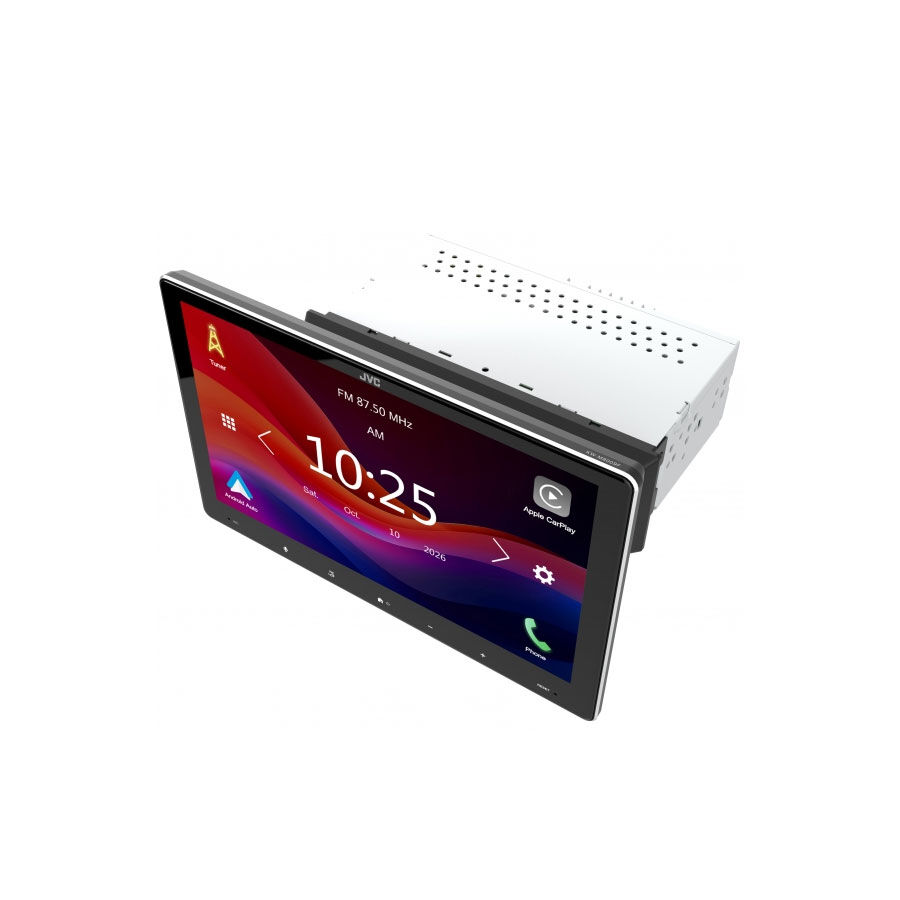

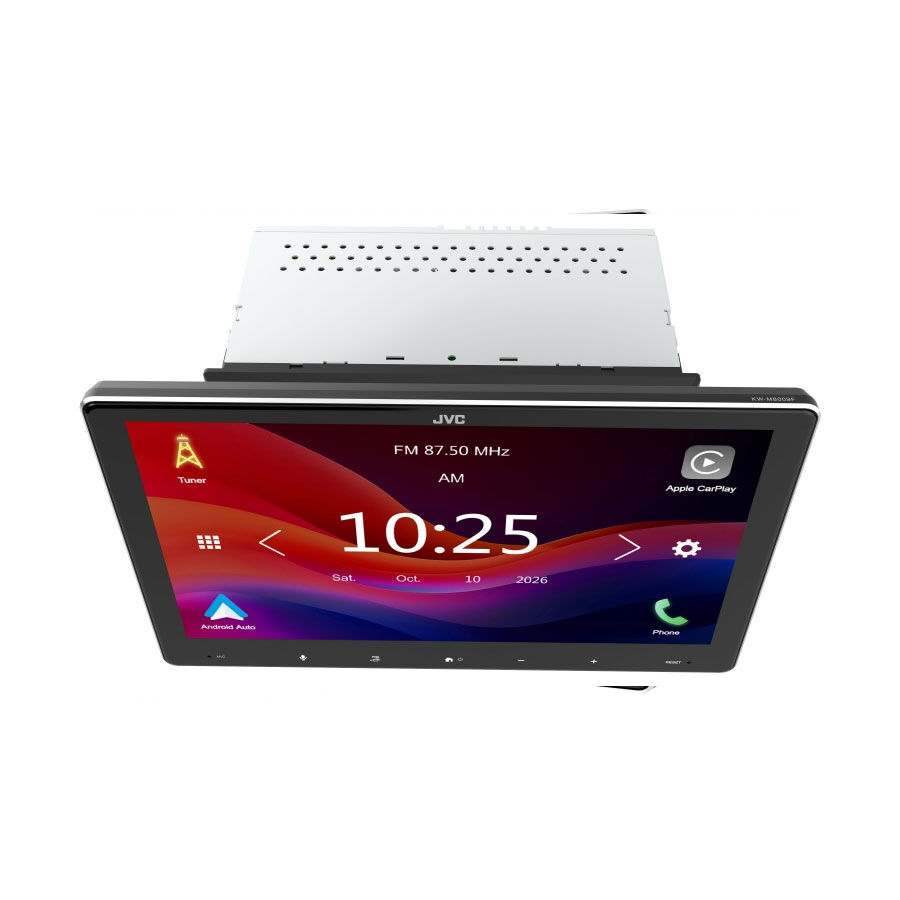

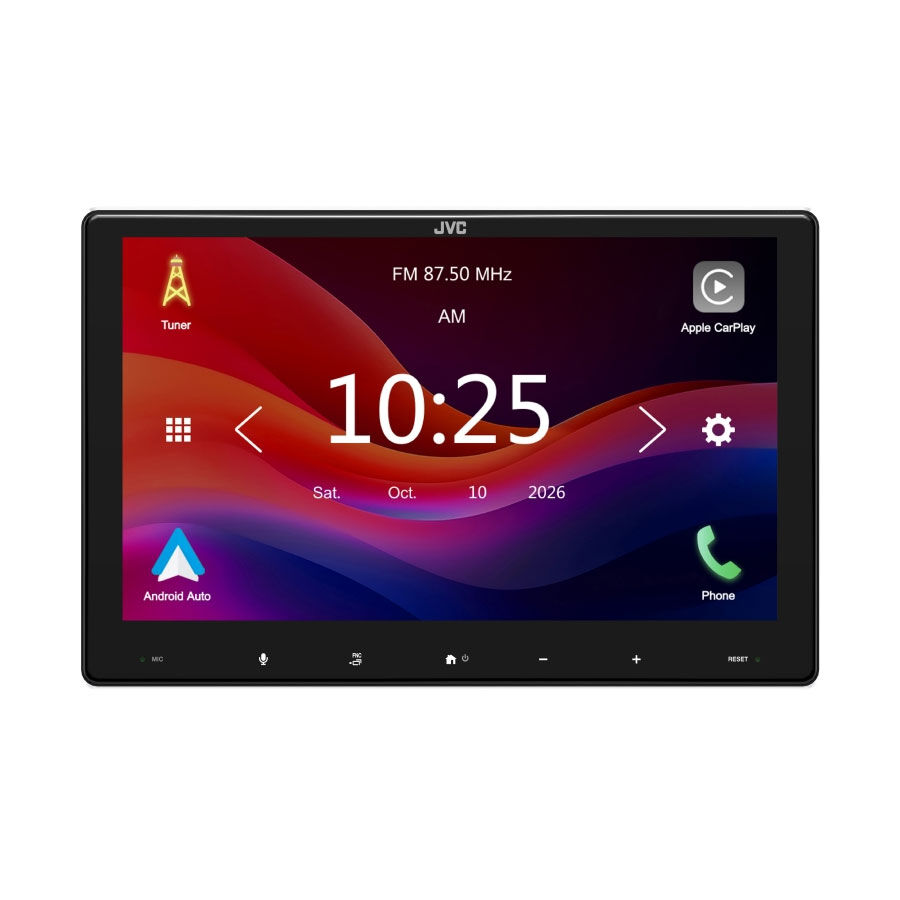

JVC KW-M8009F - 9" Floating Capacitive Display AV Receiver

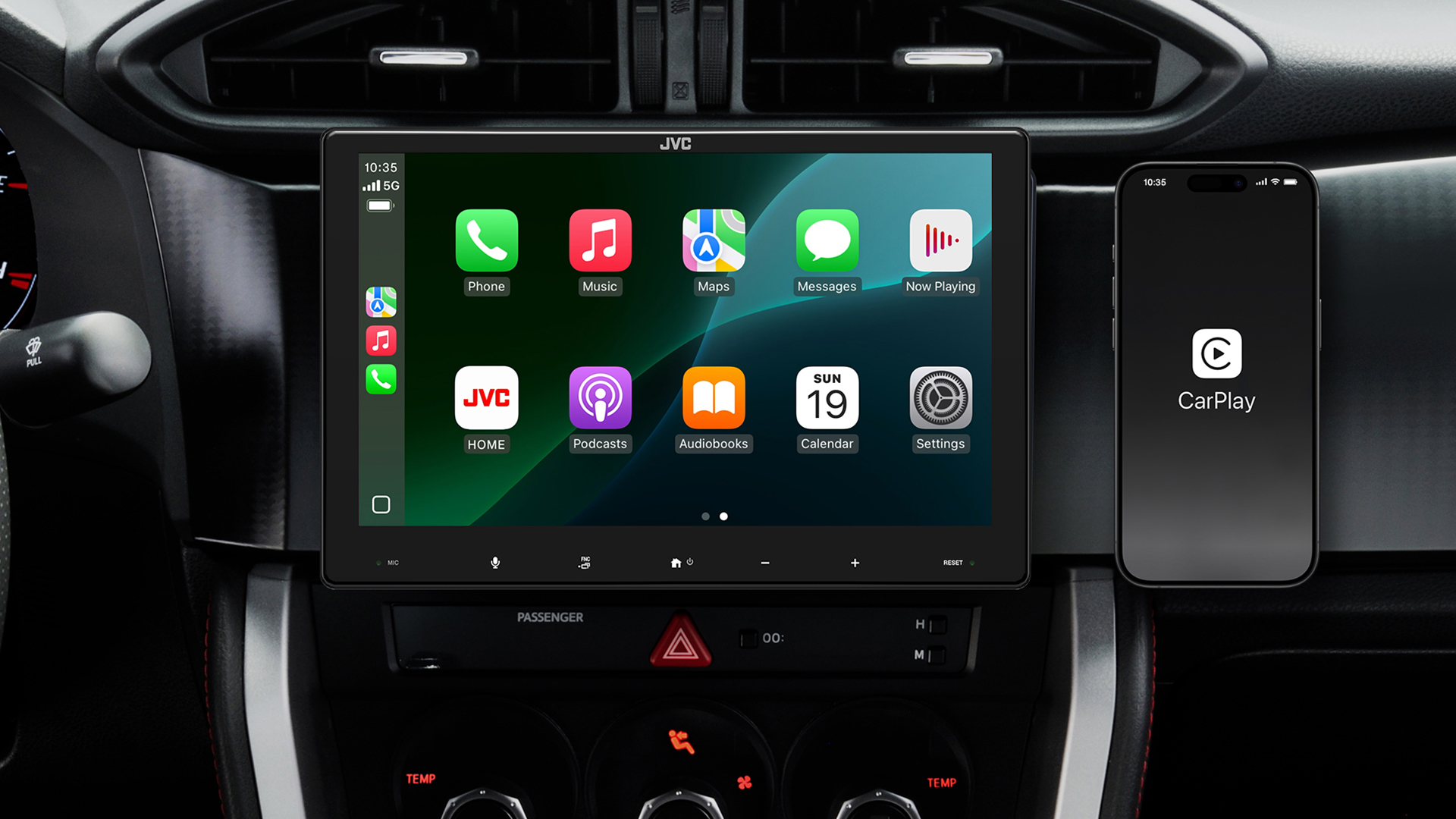

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

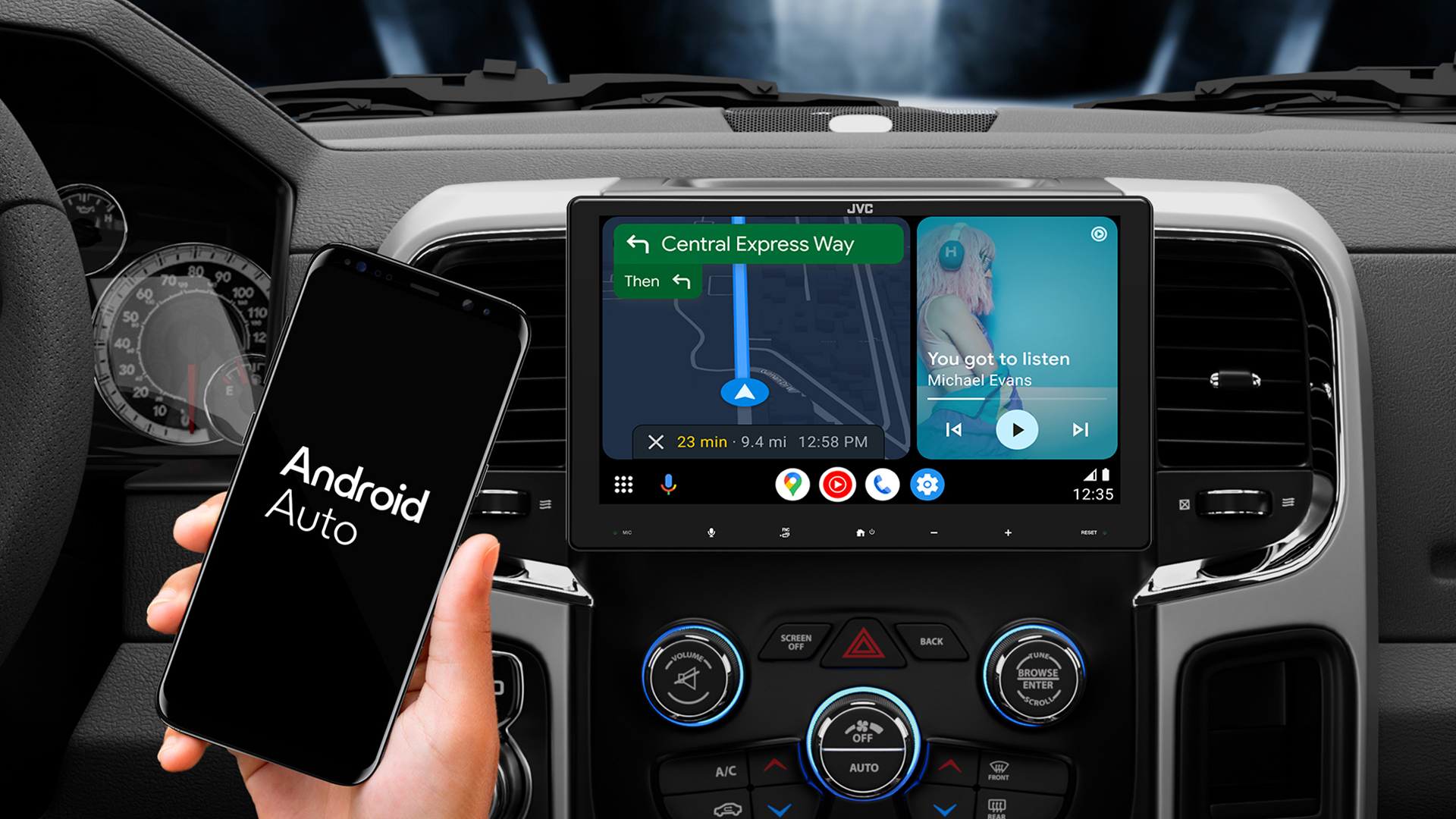

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.


DISPLAY

9.0" WSVGA LCD Display

The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

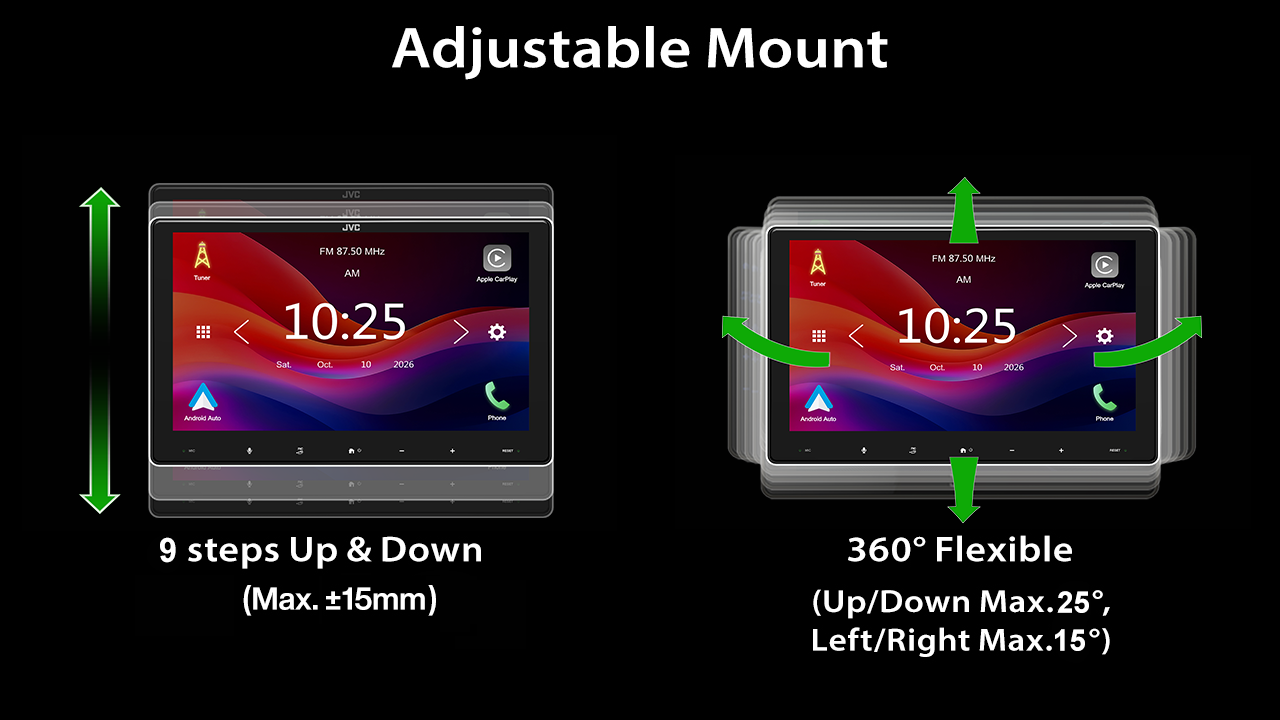

360°Fully Adjustable Floating Mechanism

The fully adjustable display allows drivers to rotate and tilt the screen 360, offering easy angle adjustments with tilt, left and right motion for optimal viewing.

SAFE DRIVING

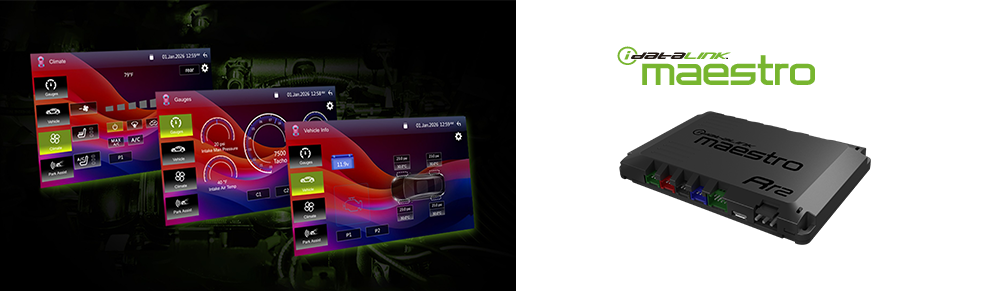

iDatalink Maestro – Advanced Vehicle Integration

iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles.

*Available features may vary depending on the vehicle. The iDatalink Maestro RR is sold separately by Automotive Data Solutions. To find an authorized dealer please visit http://maestro.idatalink.com/

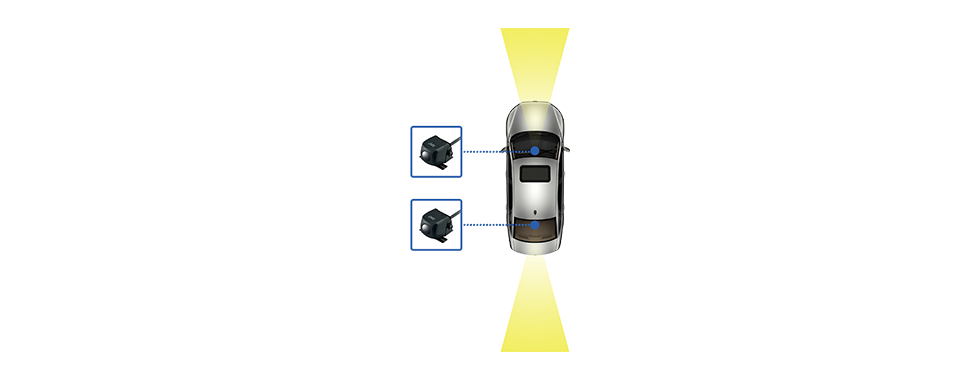

2-Camera Inputs

Enable users to add a rear facing camera and additional front facing camera (sold separately).
Additionally this receiver is equipped with a front camera left/right switching function.

SOUND OPTIMIZATION

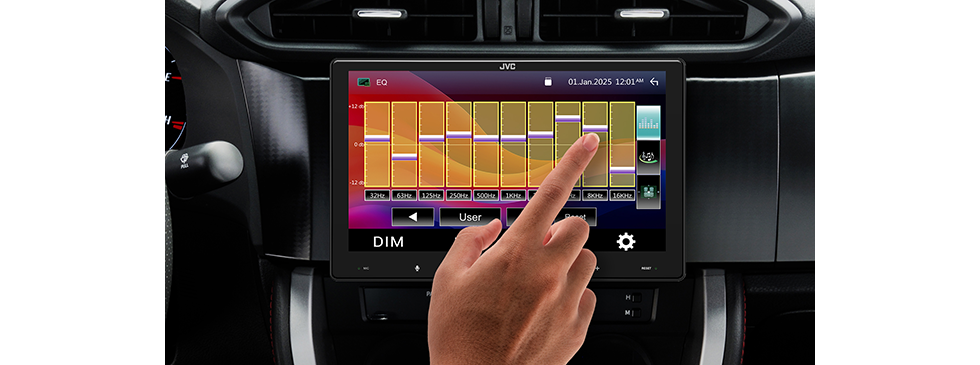

10-Band Equalizer

Use the 10-Band Equalizer to manually adjust the sound to your taste.

General

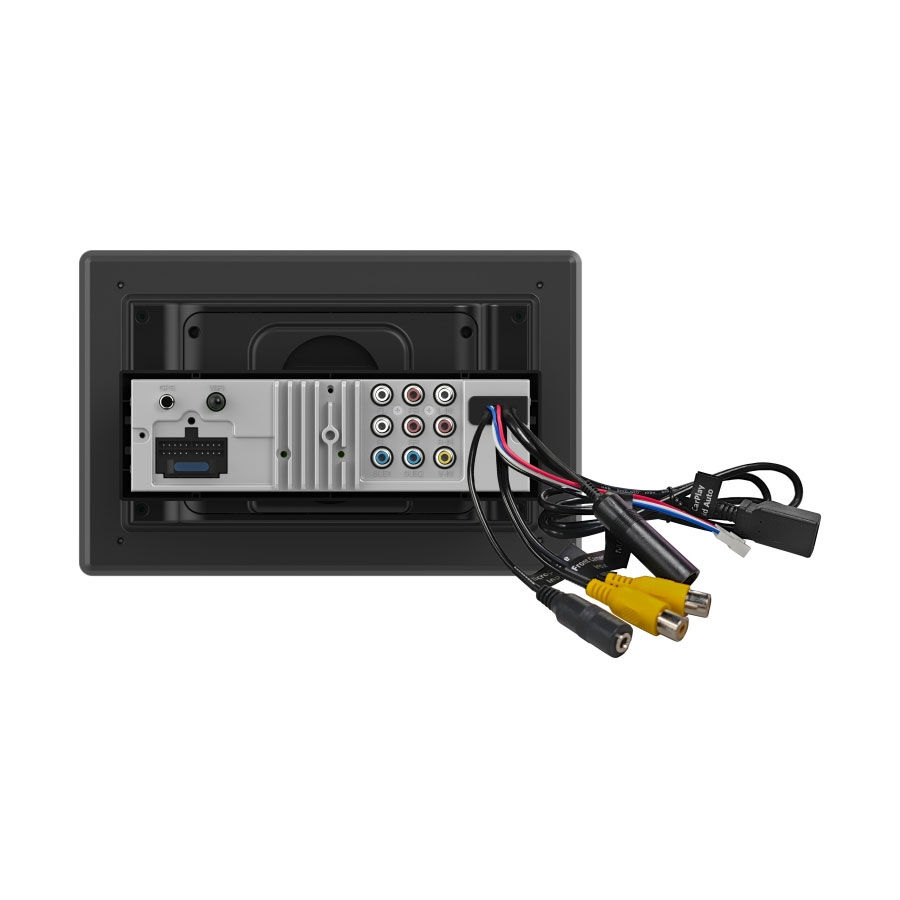

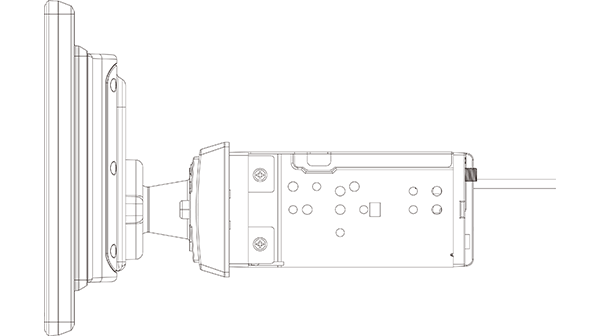

Compact Rear Chassis

Despite a large 9" display, our unit stands out with its remarkably compact rear chassis, ensuring hassle-free installation and optimal cable management.

4.0V High-Voltage 3 Pre-Outs

Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.

Learning Steering Remote Function

KW-M8009F

Monitor

Screen Size

9" WSVGA

Touch Panel

Capacitive

Key Illumination Color

White

Media Playback

MP3 Compatible with Tag

USB

AAC Compatible with Tag

USB

FLAC Compatible with Tag

USB

AVI/MKV Compatible

USB

Bluetooth Control

Built-in Bluetooth[1]

Yes (Version 5.2, Wired-Mic included)

Hands Free Call

Yes (HFP1.7)

Audio Streaming & Control (A2DP, AVRCP)

Yes

Supported Audio Formats

SBC / AAC / LDAC

Voice Dialing (voice recognition compatible mobile phone required)

Yes

Phone Book Access Profile (PBAP)

Yes

Wi-Fi Control

Built-in Wi-Fi

Yes

Android Control

Android Auto[2]

Yes (via Wi-Fi or USB)

iPod/iPhone Control

Apple CarPlay[3]

Yes (via Wi-Fi or USB)

USB

USB Port

x 1 Type-A (USB2.0 High Speed)

Position

Rear

USB Power Supply

Yes (1.5A)

Radio Tuner

Radio Data System

Yes

FM

Frequency Range

87.5-108.0MHz

AM

Frequency Response

531-1701kHz

Audio

Maximum Power Output (Front & Rear)

20W RMS x 4

Full Bandwidth Power (Front & Rear)

22W x 4

EQ

Yes (10-Band Graphic EQ)

Preset EQ

Yes (7Preset + 1User)

Inputs and Outputs

AV Input

Yes

Rear view camera Input

Yes

Front view camera Input

Yes

Line Output Terminals

3 Pairs (Front + Rear + Subwoofer)

Pre-output Level/Impedance

4V

General

iDatalink Maestro Ready

Yes (RR, RR2)

Steering Remote Control Ready

Yes

Learning Direct OEM Remote

Yes

ISO Connector

Yes

Dimensions (W x H x D)

Chassis

178 x 50 x 150.5 mm

Monitor

244.5 x 145.6 x 34.5 mm

Weight

Chassis

0.8kg (Sleeve included)

Monitor

0.8kg
