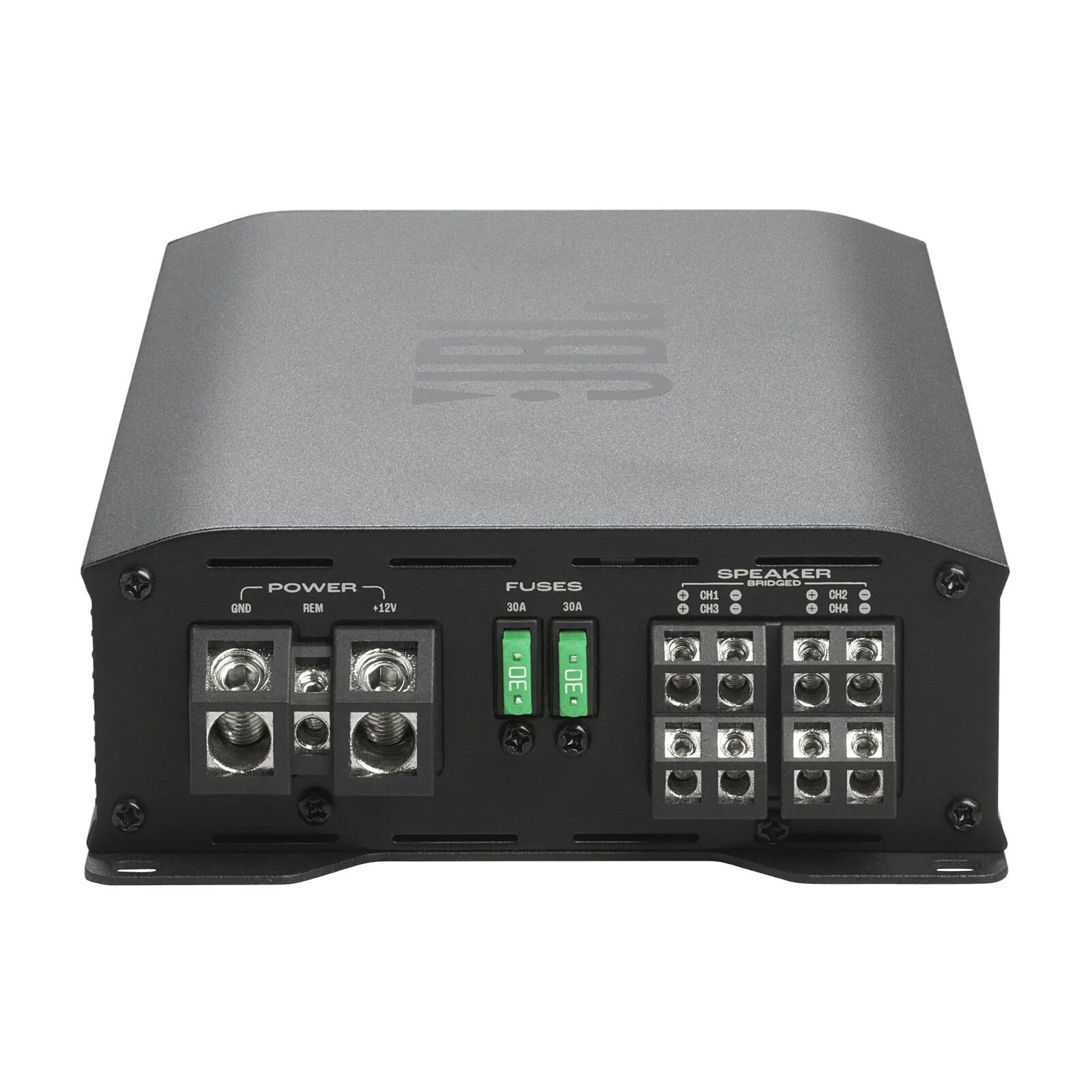

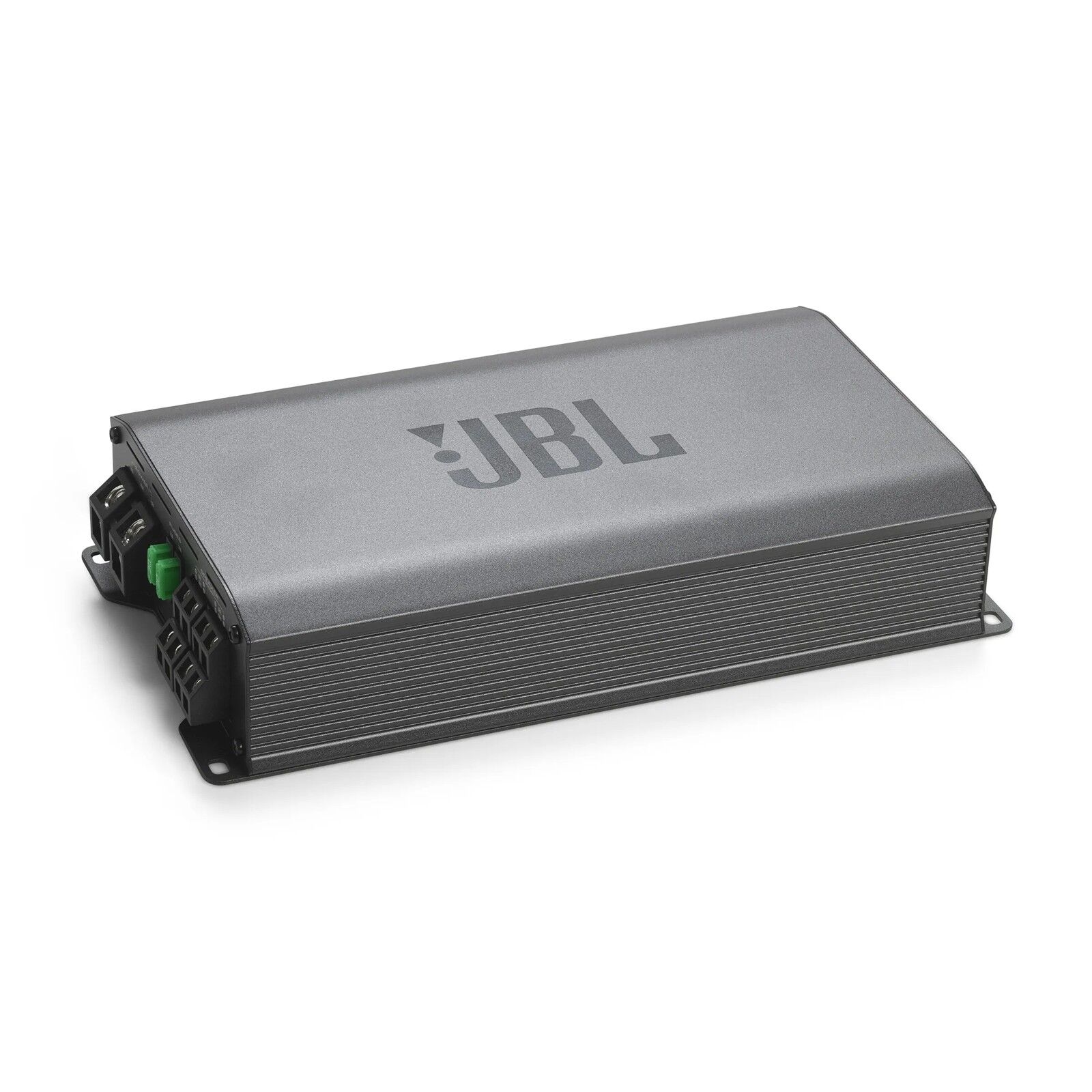

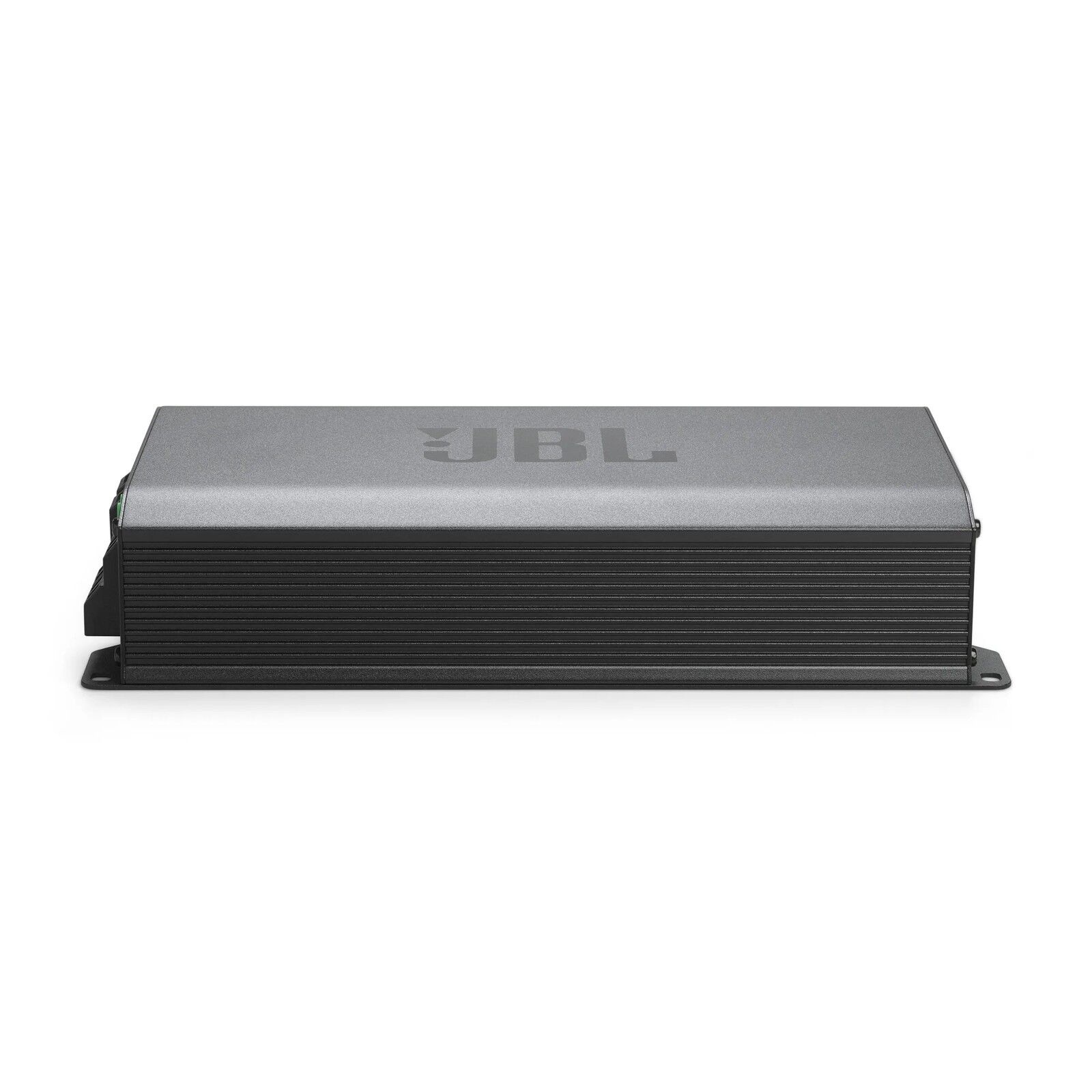

JBL Stage GT 90041 4 Channel Amplifier

JBL Stage GT 90041 4 Channel Amplifier

SKU:JBL-STAGE-GT900

$399.95


In Stock
Add To Compare

Calculate Shipping

High-performance 4-channel Class D amplifier. Max Power 1480W peak; Power Output 260Wrms x 2 @ Bridged 4 ohms full range; Power Output 130Wrms x 4 @ 2 ohms full range.

Overview

The JBL STAGE GT series high-performance Class-D amplifiers are available in four-channel, two-channel, and mono-channel models, designed to meet a variety of system configurations. Featuring advanced engineering capabilities, these amplifiers optimize performance for the ultimate listening experience.

The JBL STAGE GT amplifiers are easily installed and remarkably reliable. The compact amplifiers are equipped with user controls, including a bass EQ as well as HPF and LPF crossover controls, allowing you to tailor the sound to suit the characteristics of your vehicle.

Key Features

  • Great Performance at an Affordable Price: true JBL performance with the features you need to fine tune and optimise your audio system
  • Compact Footprint: the flexibility of mounting in tight spaces
  • Full On-Board Protection: on-board circuitry protects from shorts, overheating, overvoltage and undervoltage
  • Start/Stop Compatible: seamlessly integrates with vehicles featuring start/stop engines
  • Wide Input Sensitivity Range: speaker-level inputs from 1Vrms to 25Vrms and low-level inputs from 200mVrms to 5Vrms
  • Adjustable Bass EQ: bass boost at 45Hz from 0dB to 12dB
  • OEM Load Detect Compatible: compatible with factory head units that require specific resistance for optimal operation
  • Crossover Controls: switchable, individual crossover fine-tuning from 32 to 320Hz with a 12dB/octave slope
  • JBL Industrial Design: bead-blasted anodised extruded aluminium body, angular end caps and glossy JBL logo

What's Included

  • 1x Amplifier
  • 2x Spare Fuse
  • 2x High-level Input Cable
  • 4x Mounting Screw with Washer
  • 2x Allen Key
  • 2x JBL Stickers
  • 1x QR Code Owners Manual
  • 1x Safety Sheet

(JBL-STAGE-GT900)

  • Great Performance at an Affordable Price: true JBL performance with the features you need to fine tune and optimise your audio system
  • Compact Footprint: the flexibility of mounting in tight spaces
  • Full On-Board Protection: on-board circuitry protects from shorts, overheating, overvoltage and undervoltage
  • Start/Stop Compatible: seamlessly integrates with vehicles featuring start/stop engines
  • Wide Input Sensitivity Range: speaker-level inputs from 1Vrms to 25Vrms and low-level inputs from 200mVrms to 5Vrms
  • Adjustable Bass EQ: bass boost at 45Hz from 0dB to 12dB
  • OEM Load Detect Compatible: compatible with factory head units that require specific resistance for optimal operation
  • Crossover Controls: switchable, individual crossover fine-tuning from 32 to 320Hz with a 12dB/octave slope
  • JBL Industrial Design: bead-blasted anodised extruded aluminium body, angular end caps and glossy JBL logo

Specifications

Brand JBL
Model Stage GT 90041
Max Power 1480W peak
Power Output 260Wrms x 2 @ Bridged 4 ohms full range
Power Output 130Wrms x 4 @ 2 ohms full range
Power Output 90Wrms x 4 @ 4 ohms full range
Frequency Response 20Hz - 20kHz ±1dB
THD+N @ ROP 1%
Input Sensitivity Low level 0.2V - 5V; High level 1V - 25V
High/Low Pass Filter, Variable 32Hz - 320Hz
Bass EQ @ 45Hz 0 - 12dB Variable
Protection DCP, OVP, UVP, OCP, OTP
Operating Voltage 9V - 16V
Fuse Rating 30A x 2
