iBeam TE-ASTCAM Adjustable Spare Tyre Camera Kit

Overview

The iBeam TE-ASTCAM is a spare tyre camera kit.

Upgrade your vehicle's safety and parking experience with this adjustable spare tyre camera kit from iBEAM. This camera setup is designed to provide drivers with a clear view of their surroundings while parking or reversing, offering the ultimate solution for enhancing a vehicle's safety and maneuverability. The kit includes a multi-adjustable bracket, high-quality camera, and wiring to ensure a hassle-free installation.

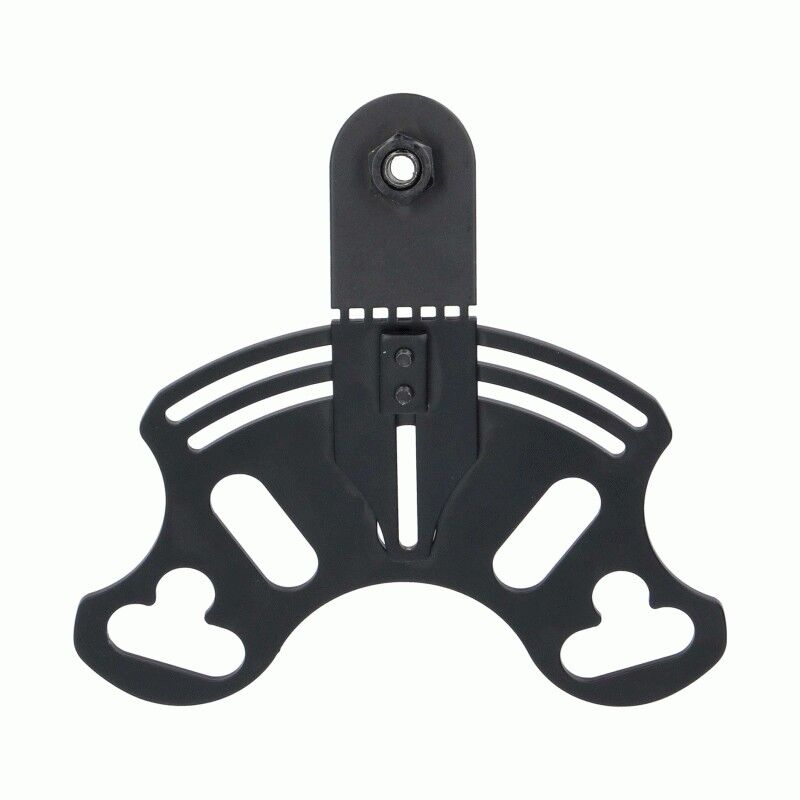

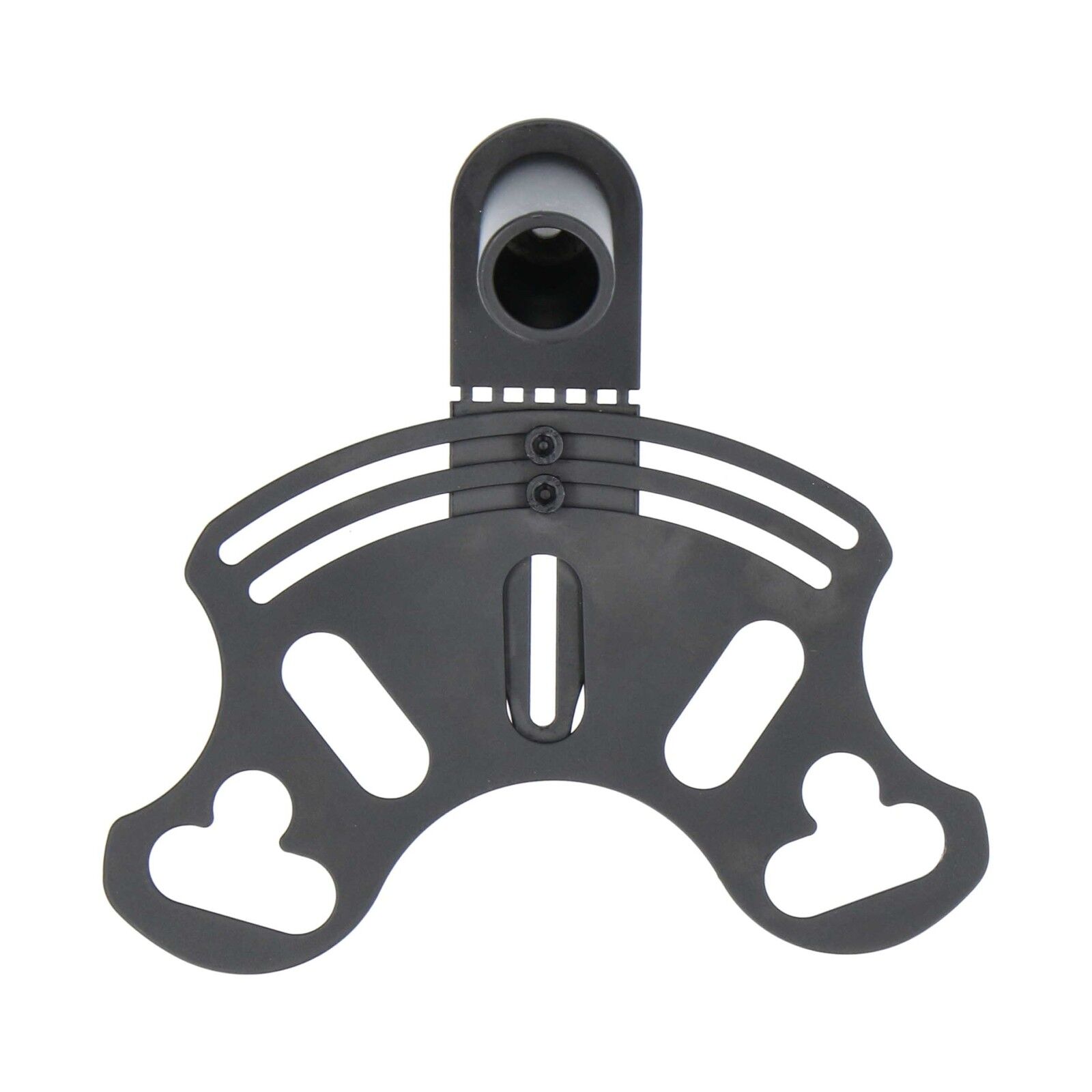

The versatile bracket of the TE- ASTCAM is specifically designed to mount securely to the factory studs of the spare wheel with over 200 vehicle applications. It offers an impressive range of adjustability, allowing drivers to position the camera exactly where they need it. The bracket's camera stem can be adjusted both side-to-side and up and down, providing drivers with optimal flexibility and customization options. Additionally, the head of the bracket is bendable to achieve the perfect angle adjustment for each unique vehicle.

Equipped with high-quality metal housing, the included camera delivers durability and longevity. Its 170-degree field of diagonal view ensures a wide coverage area, minimizing blind spots and providing a comprehensive perspective of the vehicle's surroundings. The camera also features parking guidelines, enabling drivers to accurately gauge distances and maneuver their vehicle with ease.

Please note: For a convenient power connection via the taillight, the iBEAM Pulse Width Modulation Stabilizer is recommended (sold separately). This accessory ensures a reliable and efficient power supply to the camera, further enhancing its functionality.

Key Features

• Over 200 vehicle applications, including select Jeep, Ford, Toyota, Honda, Isuzu, Suzuki, and Land Rover vehicles
• Bolt pattern: 5×4.5, 5×4.75, 5×5, 5×5.5, 5×6.5, or 6×5.5
• Bracket mounts to factory studs of spare wheel
• Bracket camera stem adjusts side-to-side and up-and-down
• Bracket features 70° left-to-right slide
• 2.5" of lift at top of bracket
• Bendable bracket head for angle adjustment
• 170° field of diagonal camera view
• Optional parking guidelines camera display
• Rated IP67
• High-quality metal camera housing
• 0.6 LUX night vision

What's Included

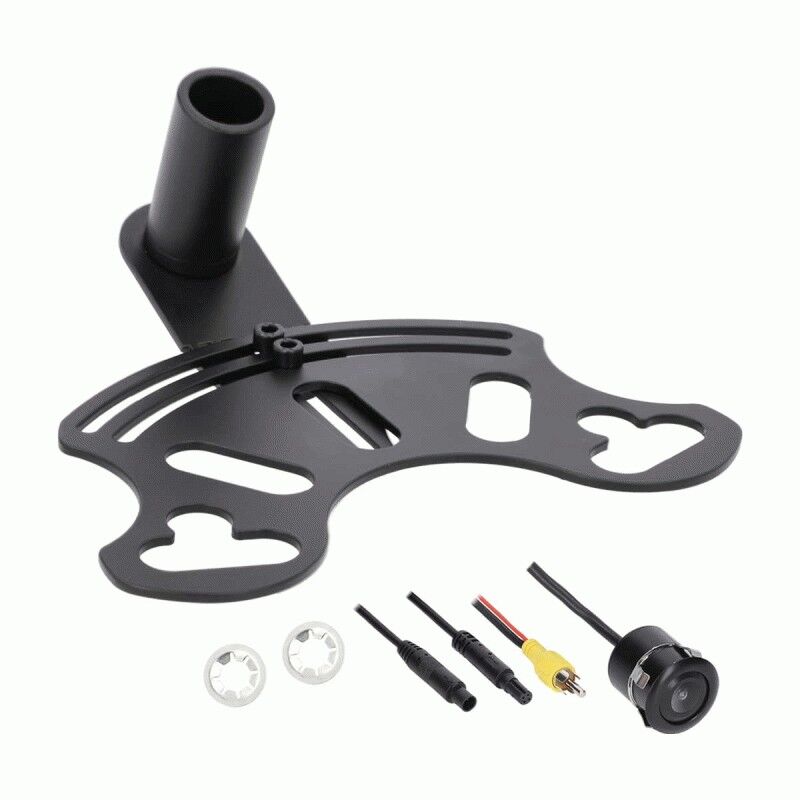

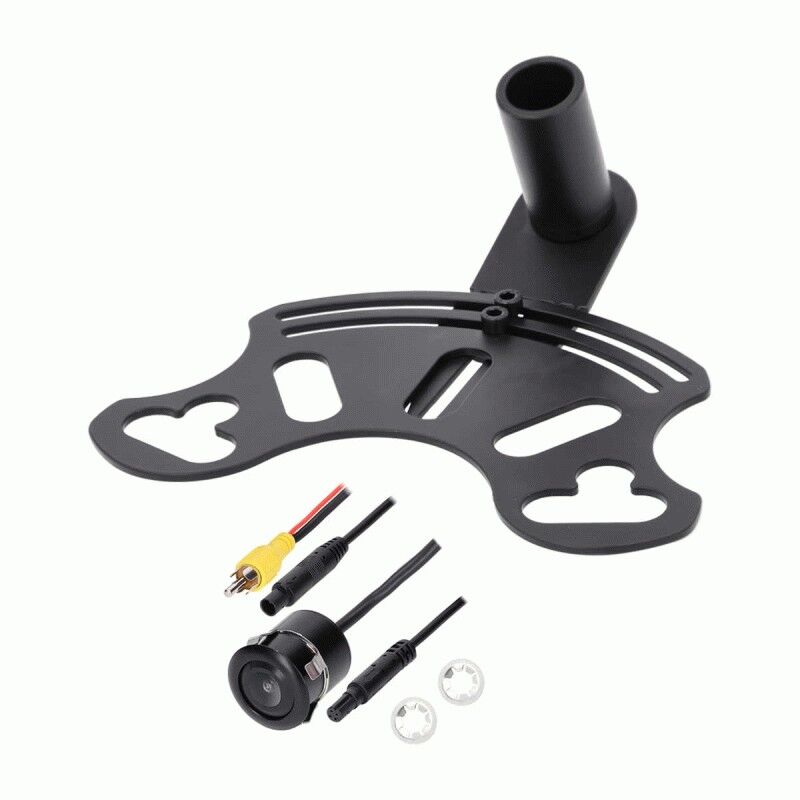

• Multi-adjustable bracket, camera, and wiring

Specifications

Warranty

Covered against manufacturing defects by the Australian distributor's warranty, in addition to your rights under Australian Consumer Law. Contact Street Sound & Vision for warranty support.
