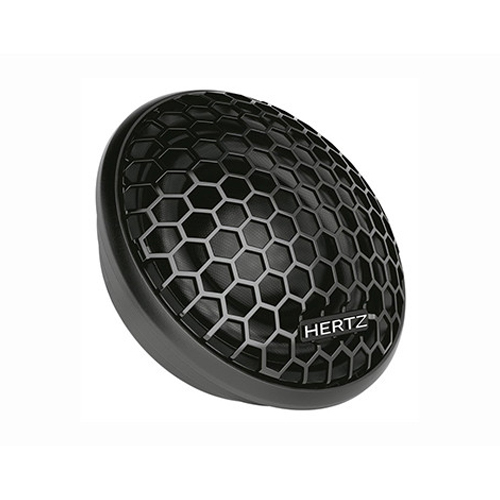

Hertz C26 Cento 120W Tweeter

Description

C 26 tweeter features a 26 mm (1 in.) Tetolon® dome and 20 mm (0.8 in.) voice coil for a detailed and natural reproduction of medium-high frequencies. The R&D team worked extensively to optimize the C 26 dispersion characteristics to maximize performance on the listening point, with a natural and progressive roll-off and a natural timbre that favors frequency linearity.

Data table

Size mm (in.)	26(1)
Power Handling - Peak W	120 (Hi-Pass filtered @ 2,5kHz - 12 dB Oct.)
Impedance ?	4
Frequency response Hz	1.8k / 22.5k
Sensitivity dB SPL	92
Voice coil mm (in.)	20(0.8)
Magnet	Neodymium
Cone/Dome	Tetolon

1. Soft Tetolon fiber 26 mm (1 in.) dome and 20 mm (0.8 in.) voice coil, for a natural and yet detailed reproduction of musical nuances.

2. Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.

3. Faceplate geometry optimized with FEM (Finite Element Modeling) technique for a linear frequency response in off-axis installations.

4. Wide range of accessories, for easy integration in OEM placements.

(C26)
