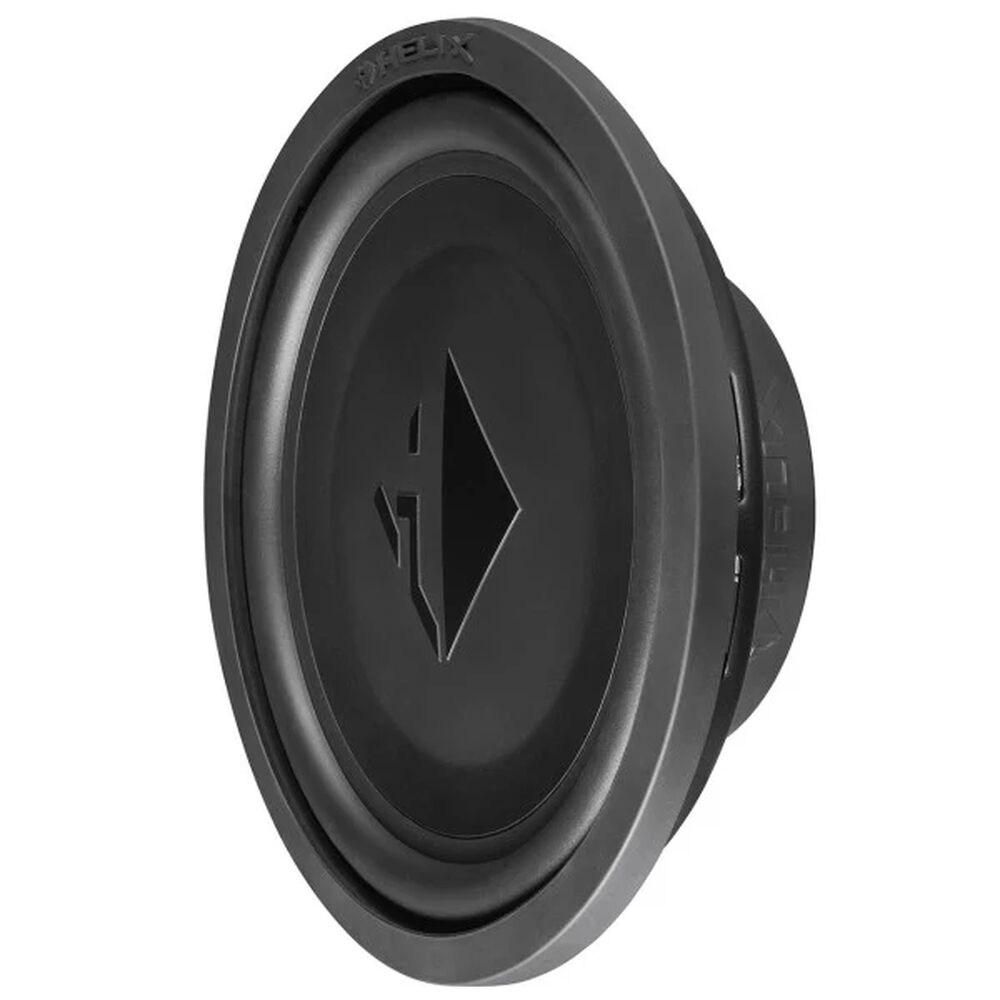

Helix IK S12-SVC2 -12" 300W RMS Slim Subwoofer | 2Ω

Flat dimensions – deep bass

With the shallow HELIX IK S subwoofers, the realization of particularly flat and compact enclosure designs shouldn’t be a problem anymore. Its extremely low installation depth opens up new installation possibilities that do not require making any acoustic compromises at all. Additionally, thanks to the use of large voice coils and its low resonant frequency, the HELIX IK S series delivers an absolutely stunning bass performance, which is in no way inferior to larger dimensioned woofers.

Smart down to the very last detail

The enormously stiff sandwich paper cone in conjunction with our heavy-duty drive system easily converts amplifier power into powerful sound pressure without any compression effects, while simultaneously demonstrating finesse when it comes to more subtle beats. A special highlight: the magnet system has a threaded hole on the back and thus allows the woofer to be fixed to the back panel of the enclosure. Since every millimeter of depth counts in flat constructions, enclosure vibrations are effectively reduced – even with thin walls.

• Size: 300mm | 12"
• Driver Power | Watts RMS: 300
• Voice Coil x Impedance: 1 x 2Ω
• Unit Type: Drivers
• Sensitivity 2.83V/1m | dB: 94
• Installation Depth | mm: 96
• Recommended Sealed Box (L): 22
• Recommended Vented Box (L): 40
