HELIX DSP ULTRA S - 12 Channel 32-Bit Signal Processor | 8ch In

HELIX DSP ULTRA S - 12 Channel 32-Bit Signal Processor | 8ch In

SKU:DSP-ULTRA-S

$2,495.00


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

Product parameters

  • Channels: 12 Channel
  • RCA Input: 8x RCA
  • High-Level Input: 8x High level
  • Other Input: Optical , Coax
  • THD+N | %: 0.0004
  • Operational Voltage:
  • Product Depth | mm: 170
  • Product Width | mm: 177
  • Product Height | mm: 40

Features

  • TwinDSP Power – two extremely powerful “fixed point” Audio DSPs with 64 Bit resolution and 2.4 billion MAC operations per second for an extensive sound customization of all processed channels:
    • Eight input channels
    • Eight virtual channels
    • Twelve output channels
  • Cutting-edge audio signal path for minimized distortion and unparalleled sound quality
  • AKM Velvet Sound™ 32 Bit AD and DA signal converters
  • Highest-quality operational amplifiers from the TI / BurrBrown "OPA series" with SoundPlusTM technology
  • Refined design of the analog inputs for outstanding noise immunity
  • Smart 8-channel highlevel input with ADEP.3 circuit
  • ACO – Advanced 32 Bit CoProcessor platform for extended feature set:
    • ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
    • DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
    • Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
    • SFX (DSP Sound Effects) – Augmented Bass Processing, RealCenter & Co.
  • VCP (Virtual Channel Processing) allows even more flexible configuration for highly complex sound systems
  • HEC slot for system add-ons like Bluetooth® HD Audio Streaming, High Resolution Audio Streaming via USB etc.
  • Start-Stop capability down to 6V supply voltage
  • “Ground lift” switch to avoid ground loops
  • Continuous adjustment of the input sensitivity (highlevel up to max. 32 Volts, RCA / Cinch up to max. 8 Volts)
  • Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
  • Time alignment with up to 20 ms delay time per channel, additionally reverse time alignment for in-phase summation of the inputs
  • Freely definable signal routing with separate matrices for line, SPDIF and HEC/AUX

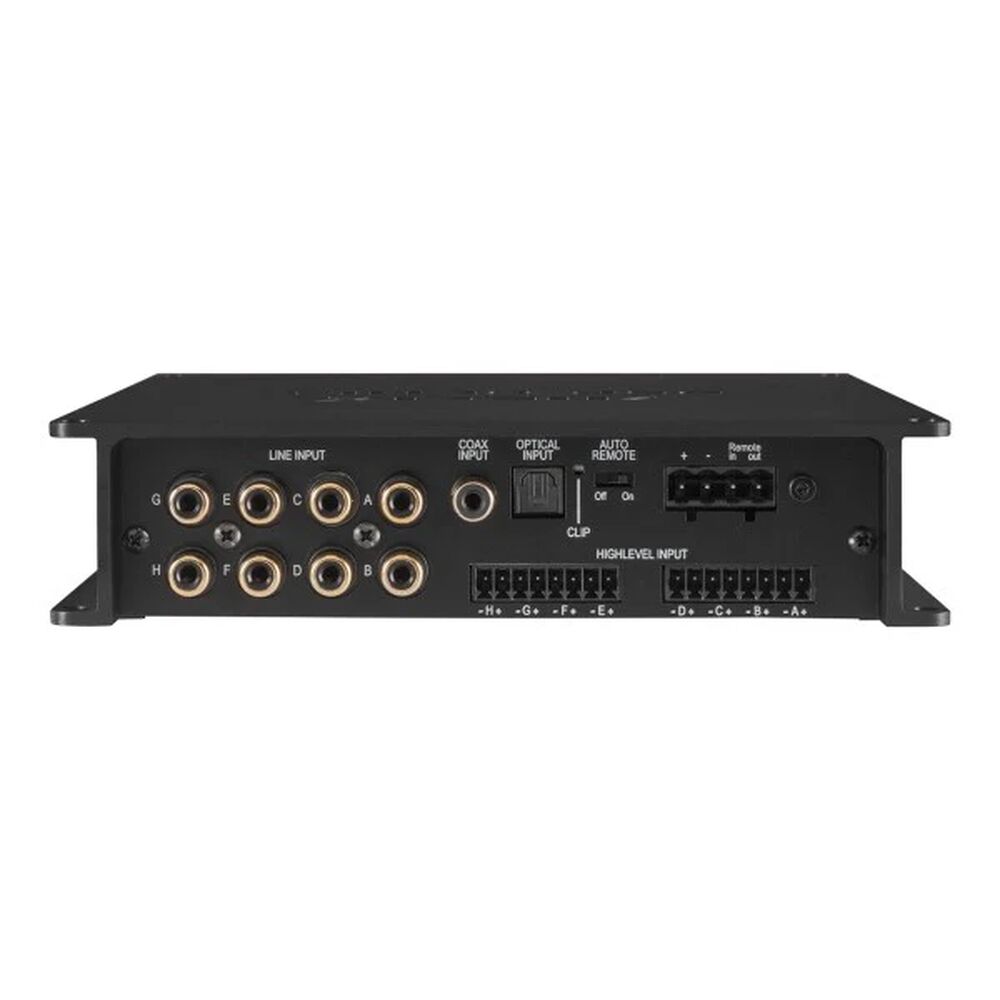

  • Inputs: 8 x RCA/Cinch, 8 x Highlevel, 1 x optical SPDIF and 1 x coaxial SPDIF
  • Outputs: 12 x RCA/Cinch with max. 8 Volts output voltage
  • Easiest configuration via the intuitive DSP PC-Tool 5 software

(DSP-ULTRA-S)
