GME TX3350UVP 5 Watt Super Compact UHF CB Radio - Value Pack

GME TX3350UVP 5 Watt Super Compact UHF CB Radio - Value Pack

SKU:TX3350UVP

$669.00


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $9.95
Shipping with Signature

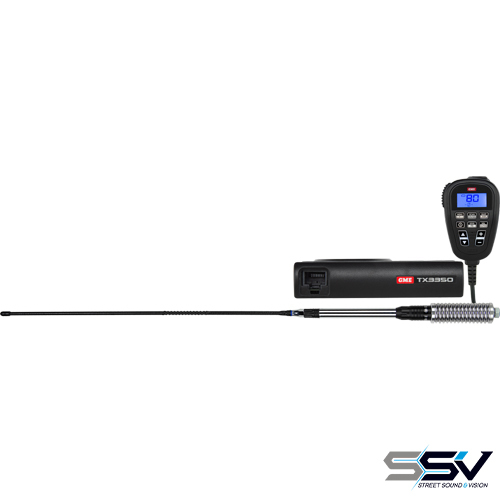

This value pack includes a Super Compact UHF CB radio, Antenna assembly & Mounting brackets.

The TX3350UVP combines the features of the TX3350 with the reliability of the AE4018K3 elevated-feed antenna for an all-in-one communications solution.

The TX3350 is a feature-packed Super Compact UHF CB radio including a SoundPath™ LCD speaker microphone.

SoundPath™ is a unique solution that allows the full-function LCD microphone to house a built-in speaker, offering clear audio all within a compact and ergonomic design. SoundPath™ diverts the audio through a convex path around the microphone bollard, whilst maintaining the compact size of the unit.

The TX3350 offers a unique combination of the space-saving benefits of a Super Compact sized radio and full-function LCD speaker microphone, all in the palm of your hand.

This means that the radio can be discretely installed in almost any location within a vehicle without the need for an extension speaker – perfect for modern vehicles where space is at a premium.

(TX3350UVP)

Product Specifications

GENERAL

Compliant Specification
Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX
476.425 – 477.4125 MHz
Number of Channels
80 UHF CB
Channel Spacing
12.5 kHz
Operation Mode
simplex channels 1-80, Semi Duplex channels 1‑8, 41-48
Scanning Speed
20 channels per second
Antenna Impedance
50 Ohms nominal
Nominal Battery Voltage
13.8 volts DC
Operating Voltage Range
10-15 volts DC
Overvoltage Protection
25 volts DC max At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Overcurrent Protection
In-line 2A Fuse
Frequency stability
±2.5 PPM
Modulation
FM

TRANSMITTER

RF Output
5.0 watts max
Maximum Deviation
< ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response
+6 dB per octave, 300 Hz to 3 kHz + 1-3 dB
Current Consumption
1.5 amps with 50 Ohms termination

RECEIVER

Intermediate Frequencies
1st - 21.54, MHz 2nd - 450 kHz
Sensitivity
- 123 dBm for 12 dB SINAD unweighted
Selectivity
- 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
Intermodulation Immunity
73 dB
Blocking Immunity
100 dB
Spurious Response Immunity
70 dB
Audio Output Power
3 watts average into 4 Ohms
Current consumption
< 180 mA muted 600 mA @ max. A.F output
Receive Frequency
‑6 dB/Octave de‑emphasis, 300 Hz to 3 kHz + 1-3 dB
Conducted Spurious Emission
< - 57 dBm

MECHANICAL SPECIFICATIONS

Dimensions
102 (W) x 87 (D) x 23 (H) mm
Weight
158 grams
