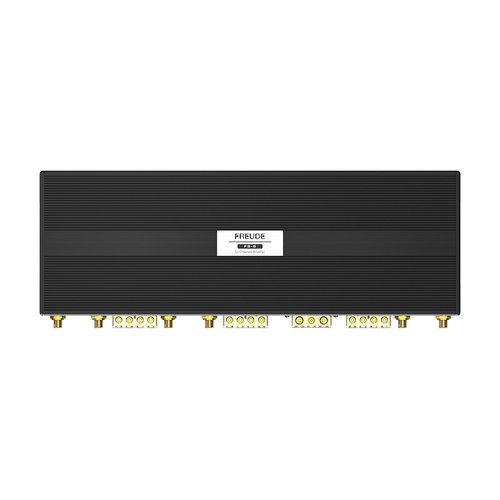

Freude FS-6 Class A/B 6-Channel Amplifier

Standard Shipping - $9.95
Shipping with Signature

Class AB Six Channels Amplifier

Six-Channel Class AB Amplifier: Active 3-Way Setup, One Unit Does It All
Wide Voltage Design (9-17V), Compatible with EV/Hybrid/Gasoline Vehicles
Max Power: 4 x 150W + 2 x 210W @4Ohm - Powerful Performance
Supports Pair-Wise Bridging for Custom Configurations
Texas Instruments Op-Amps for Ultra-Low Distortion & Noise, Enhancing Detail Resolution
Japanese ELNA Audio Coupling Capacitors for Accurate Signal Transmission & Improved Sound Detail
Japanese ELNA Large Audio Filter Capacitors, Delivering Wide Frequency Response, Low Distortion, and High Dynamic Performance
High-Quality Dual Power Transformers Provide Ample, Clean, and Low-Ripple Voltage
High-Quality Gold-Plated RCA Terminals
Certified via Multiple Tests: Humidity/Temperature/Withstand Voltage/Drop
Comprehensive Protection: Short-Circuit/Overload/Reverse Polarity/DC Output/Low Voltage/Over-Temperature - Ensures Long-Term Stable Operation

Specifications

Model:	FS-6
Type:	Class AB Six Channels Amplifier
Max Power @ 2Ohm:	4 x 225W + 2 x 270W
Nom Power @ 2Ohm:	4 x 150W + 2 x 180W
Max Power @ 4Ohm:	4 x 150W + 2 x 210W
Nom Power @ 4Ohm:	4 x 100W + 2 x 140W
Bridged Max Power @ 4Ohm:	2 x 450W + 1 x 540W
Bridged Nom Power @ 4Ohm:	2 x 300W + 1 x 360W
Operating Voltage :	9 - 17 VDC
Freq. Resp. Range:	10 Hz - 60k Hz
Signal Noise Ratio:	100 dB
Input Sensitivity:	0.4V - 6V
Input Impedance:	22k Ohm
Degree Of Loss Of Truth:	<=0.05%
Impedance:	2 - 8 Ohm
Fuse:	3 x 40A
Weight:	3.16 kg
Dimensions (LxWxH):	414 x 155.3 x 53.5 mm
Wired Remote Control	Not supported
