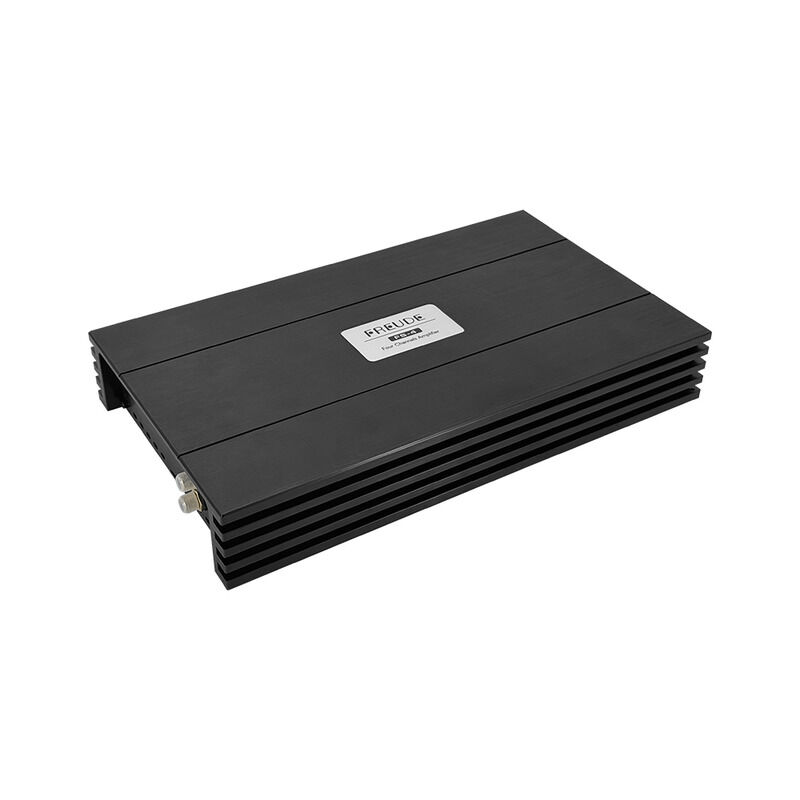

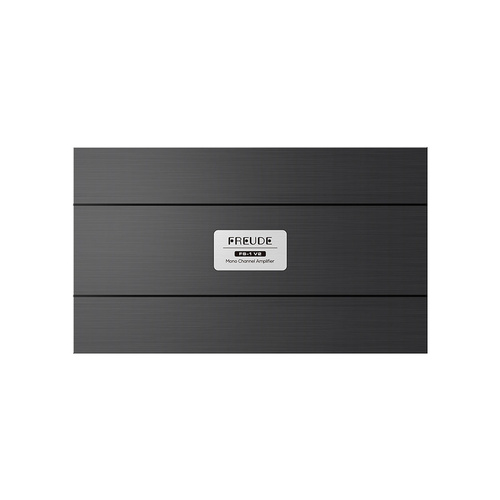

Freude FS-1 V2 Class D Mono Amplifier

Freude FS-1 V2 Class D Mono Amplifier

SKU:FS-1-V2

$1,999.00


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $9.95
Shipping with Signature

Class D Mono Amplifier

  • Class D power amplifier.
  • PCB board made of high-strength flame-retardant fiberglass material.
  • Ultra-high power, capable of driving two subwoofers.
  • Internal bridge design for increased output power.
  • Gold-plated terminals: corrosion-resistant, oxidation-resistant, durable for repeated connections.
  • Compact size with all-aluminum chassis for efficient heat dissipation.
  • Built-in voltage regulator ensures internal voltage remains unaffected by vehicle battery voltage fluctuations.
  • Multiple protection features suitable for various in-vehicle environments.
  • Can be connected to a remote control panel (control panel is optional accessory).

Specifications

Model: FS-1 V2
Type: Class D Mono Channel Amplifier
Max Power @ 1Ohm: 2600 W
Nom Power @ 1Ohm: 2500 W
Max Power @ 2Ohm: 2250 W
Nom Power @ 2Ohm: 1500 W
Max Power @ 4Ohm: 1350 W
Nom Power @ 4Ohm: 900 W
Freq. Resp. Range: 10 Hz - 400 Hz
Lo-Pass Freq. Adju.: 50 Hz - 400Hz
Signal Noise Ratio: >=100 dB
Input Impedance: 20k Ohm
Input Sensitivity: 0.293 V, 0.87 V, 7.3 V
Operating Voltage: 9 - 17 V DC
Degree Of Loss Of Truth: 0.02 %
Net Weight: 3.97 kg
Dimensions (LxWxH): 319 x 190 x 50 mm

(FS-1-V2)
