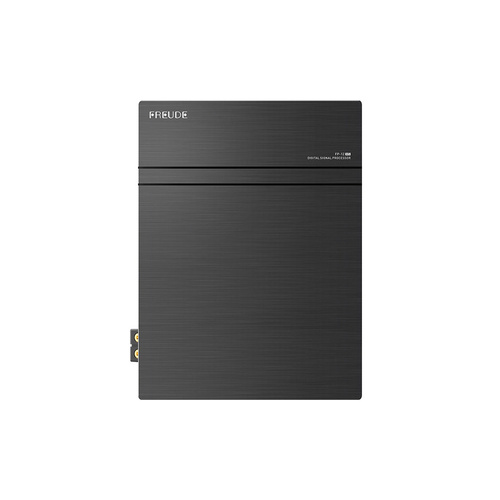

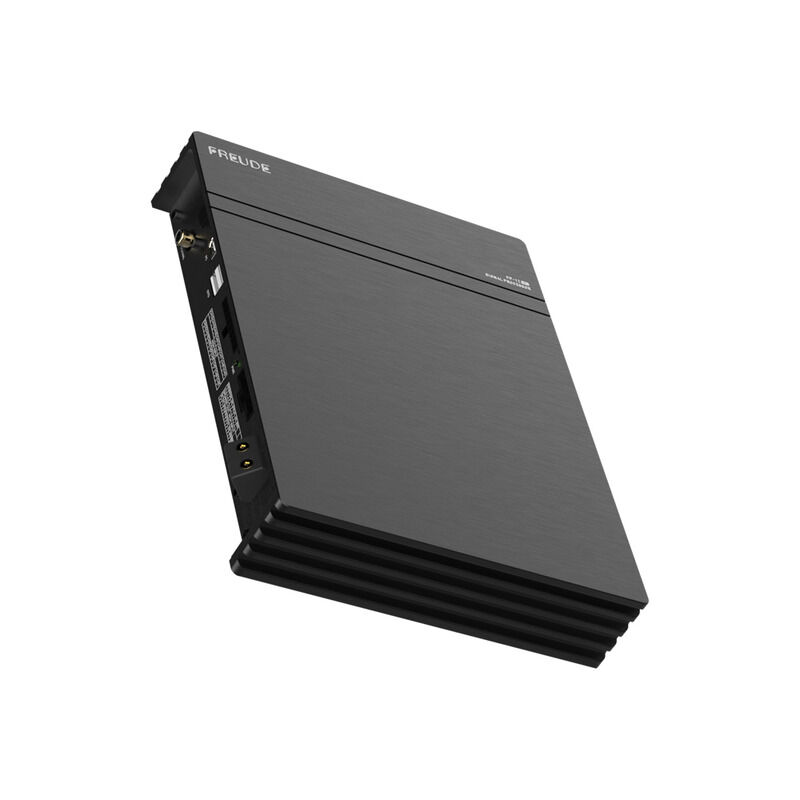

Freude FP-12 V5 12-Channel DSP Amplifier

Freude FP-12 V5 12-Channel DSP Amplifier

SKU:FP-12-V5

$1,299.00


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $9.95
Shipping with Signature

  • Wide voltage design: 9V - 17V DC
  • Built-in Class D amplifier: Max Power up to 8 x 80W + 4 x 150W
  • 12ch AUX outputs, 12ch high-level outputs
  • 12ch of high-level, 2ch AUX, Coaxial, optical, Digital BT, USB, OTG input
  • High-quality electronic components
  • All-aluminum chassis for excellent heat dissipation
  • PC tuning -- AUDIO ARCHITECT
  • Plug-and-play, non-destructive installation

Specifications

Model: FP-12 V5
Type: 12 ch DSP with Amplifier
Power: DC 9 V~17 V
Input Signal Type: 12ch high level, 2ch AUX, Coaxial, Optical Fibre, Digital BT, USB, OTG
Dynamic Range: >=102 dB
S/N: >=98 dB
Frequency Response: 20 Hz ~ 20k Hz
Max Power: 8 x 80W + 4 x 150W (bridge 2 x 300W) @ 4Ohm
Nom Power: 8 x 40W + 4 x 80W (bridge 2 x 160W) @ 4Ohm
Output Signal Type: 12ch AUX Output, 12ch High Level Output
Output Signal EQ: 31 Levels EQ
Net Weight: 2.4 kg
Dimension(LxWxH): 261.4 x 196 x 46mm
Wired Remote Control Adaptable, sold separately ((FRC-03)

(FP-12-V5)
