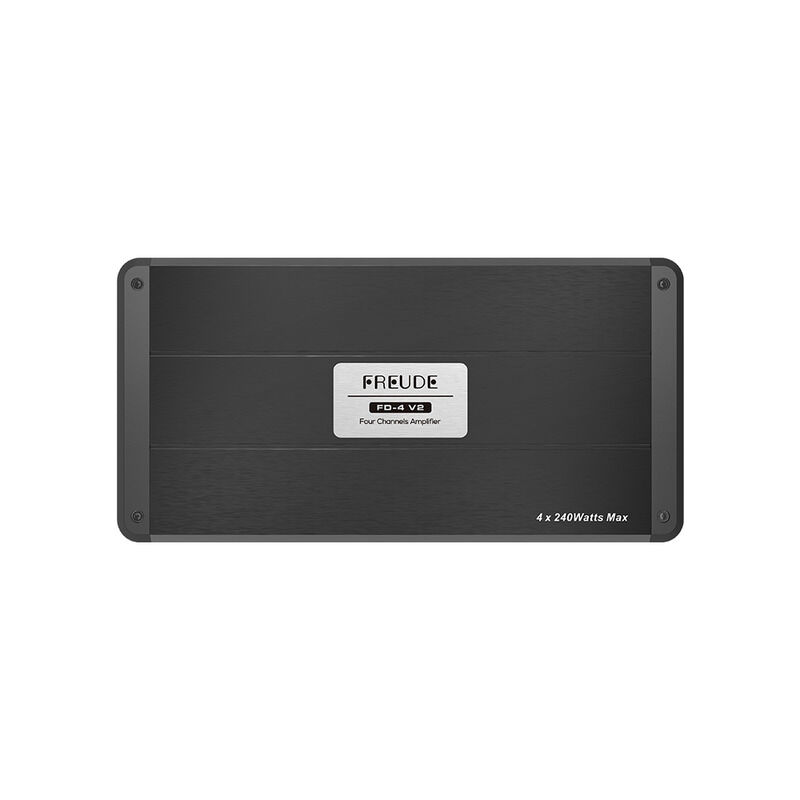

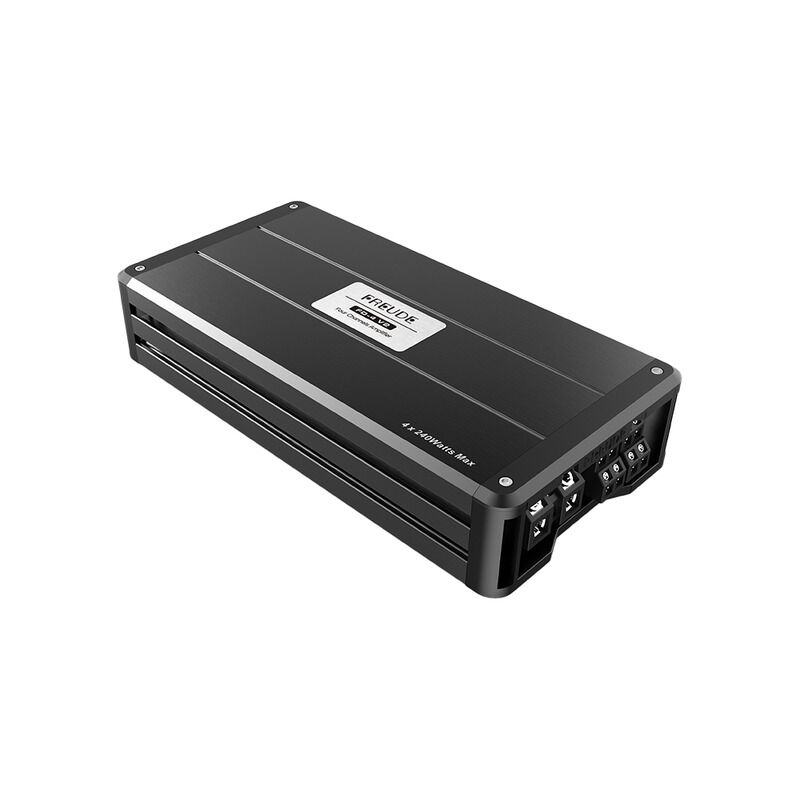

Freude FD-4 V2 Class D 4-Channel Amplifier

Freude FD-4 V2 Class D 4-Channel Amplifier

SKU:FD-4-V2

$799.00


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $9.95
Shipping with Signature

Class D Four Channels Amplifier

  • Class-D Full-Range Digital Stereo Sound
  • Features a new low-heat circuit
  • 4/3/2 channel design
  • Full field-effect tube DC pulse width modulation power supply
  • Comprehensive protection circuit
  • Uses double-sided FR-4 material
  • Features 4GUAGE nickel-plated speaker output terminals
  • Adopts an ultra-compact size design

Specifications

Model: FD-4 V2
Type: Class D Four Channels Amplifier
Max Power @ 2Ohm: 360 W x 4 Ch
Nom Power @ 2Ohm: 180 W x 4 Ch
Max Power @ 4Ohm: 240 W x 4 Ch
Nom Power @ 4Ohm: 120 W x 4 Ch
Bridge Max Power @ 4Ohm: 720 W x 2 Ch
Bridge Nom Power @ 4Ohm: 360 W x 2 Ch
Freq. Resp. Range (-3db): 10 Hz - 50k Hz
Hi-pass Freq. Adjustment Range: 50Hz - 250 Hz
Low-pass Adjustment Range: 50Hz - 250 Hz
Signal Noise Ratio: 93 dB
Degree Of Loss Of Truth: <=0.05%
Weight: 1.62 kg
Dimensions (LxWxH): 248 x 125 x 48.5 mm
Wired Remote Control Not supported

(FD-4-V2)
