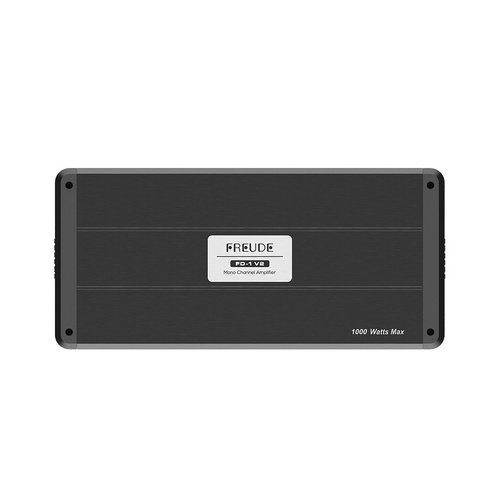

Freude FD-1 V2 Class D Mono Amplifier

Freude FD-1 V2 Class D Mono Amplifier

SKU:FD-1-V2

$799.00


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $9.95
Shipping with Signature

Class-D Mono Channel Amplifier

  • 500W @4Ohm Rms Power, 1000W @4Ohm Max Power.
  • Supports 2Ohm and 1Ohm output.
  • Distortion <=0.05%.
  • Comprehensive protection circuitry.
  • Double-sided FR-4 PCB material.
  • 4-gauge nickel-plated speaker output terminals.
  • Ultra-compact design.

Specifications

Model: FD-1 V2
Type: Class D Mono Channel Amplifier
Max Power @ 1Ohm: 2000 W
Nom Power @ 1Ohm: 1000 W
Max Power @ 2Ohm: 1600 W
Nom Power @ 2Ohm: 800 W
Max Power @ 4Ohm: 1000 W
Nom Power @ 4Ohm: 500 W
Freq. Resp. Range (-3db): 10 Hz - 250 Hz
Low-pass Adjustment Range: 35 Hz - 250 Hz
Signal Noise Ratio: >=95 dB
Degree Of Loss Of Truth: <=0.05%
Weight: 1.92 kg
Dimensions (LxWxH): 288 x 128 x 48.5 mm

(FD-1-V2)
