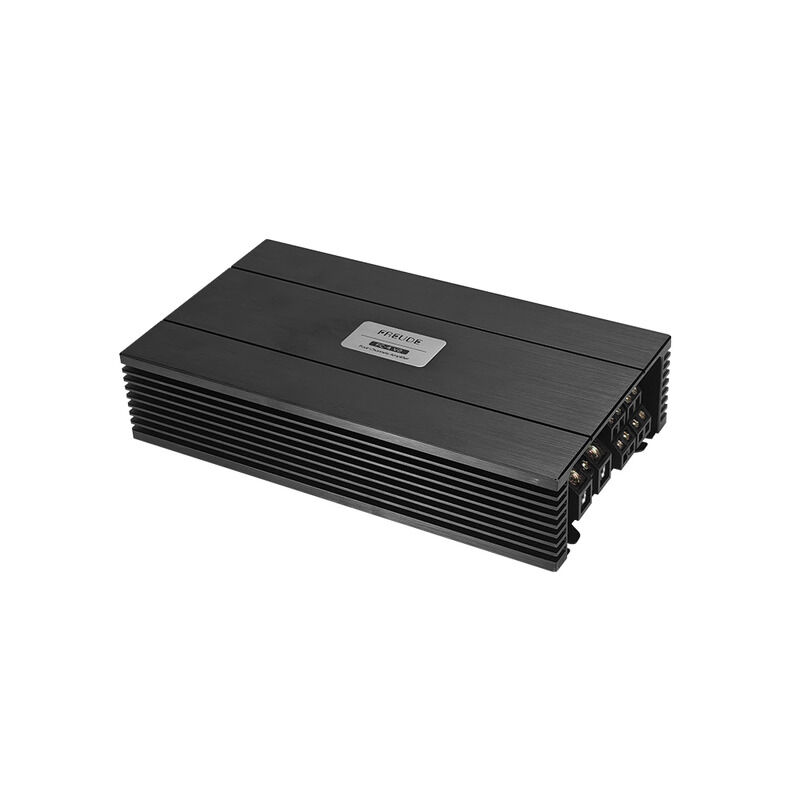

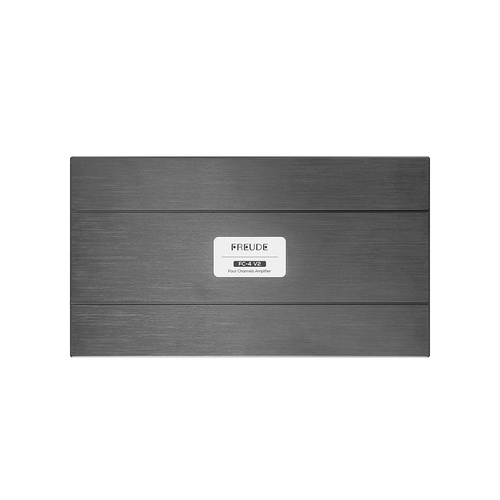

Freude FC-4 V2 Class D 4-Channel Amplifier

Freude FC-4 V2 Class D 4-Channel Amplifier

SKU:FC-4-V2

$599.00


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $9.95
Shipping with Signature

  • Class D amplifier: Total Max Power 1120W.
  • Supports bridged mode for effortless control of high-power subwoofers.
  • All-MOSFET DC-DC PWM power supply design.
  • Double-sided FR-4 PCB for sturdy structure and strong anti-interference capability.
  • Multiple protection functions for safety and stability.
  • Brushed finish, precision-machined aluminum alloy housing.
  • Compact size for easy installation.
  • Low heat generation, high energy efficiency - especially suitable for new energy vehicles.

Specifications

Model: FC-4 V2
Type: Class D Four Channels Amplifier
Max Power @ 2Ohm: 280 W x 4 ch
Nom Power @ 2Ohm: 220 W x 4 ch
Max Power @ 4Ohm: 150 W x 4 ch
Nom Power @ 4Ohm: 120 W x 4 ch
Bridge Max Power @ 4Ohm: 560 W x 2 ch
Bridge Nom Power @ 4Ohm: 440 W x 2 ch
Operating Voltage : 10 - 16 VDC
Freq. Resp. Range: 20 Hz - 20 kHz
Signal Noise Ratio: >=90 dB
Input Sensitivity: 0.55V ~ 7V
Input Impedance: 20k Ohm
T.H.D.: 0.1 %
Weight: 1.76 kg
Dimensions (LxWxH): 226 x 126 x 50 mm

(FC-4-V2)
